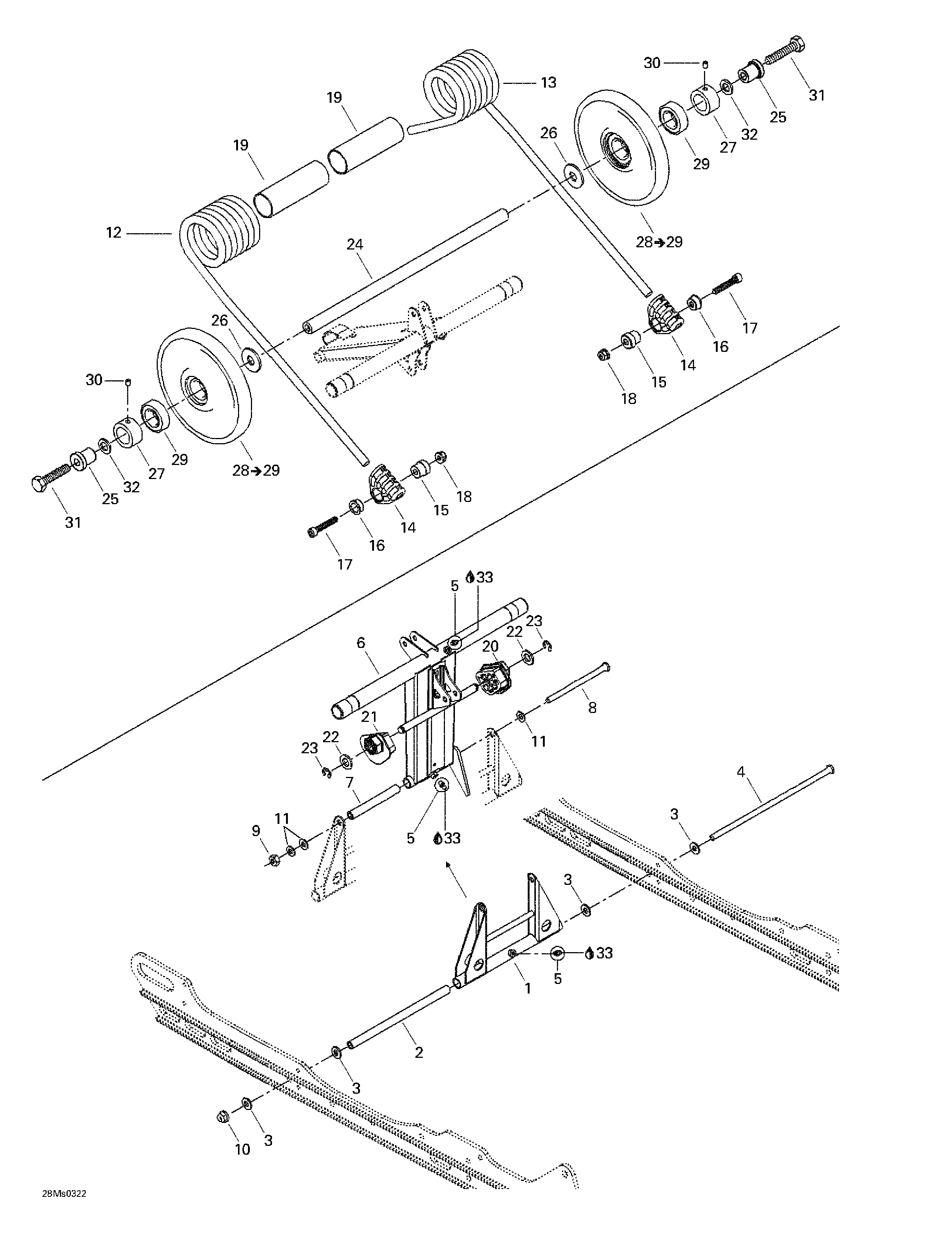

08- Rear Arm для BRP Ski-Doo Summit X 800 HO - 2003
-
№АртикулНазвание
-
1503189793 Pivot armPivot arm
-
2503189156 Pivot axlePivot axle
-
3503189157 WasherWasher
-
4732601198 Long bolt M8Long bolt M8
-
5408200700 Grease fittingGrease fitting
-
6503190323 Rear armRear arm
-
7503144300 Upper axleUpper axle
-
8732601197 Short bolt M8Short bolt M8
-
9232581414 Hex elastic nut M8Hex elastic nut M8
-
10233281414 Hex flanged elastic nut M8Hex flanged elastic nut M8
-
11234081410 Flat washer M8Flat washer M8
-
12503190329 R.h. springR.h. spring
-
13503190331 L.h. springL.h. spring
-
14503189657 Spring supportSpring support
-
15503189232 Spring axle guideSpring axle guide
-
16503189231 Retainer cushionRetainer cushion
-
17205084544 Socket head screw M8 x 45Socket head screw M8 x 45
-
18233281414 Hex elastic flanged nut M8Hex elastic flanged nut M8
-
19503190333 BushingBushing
-
20503190023 L.h. spring camL.h. spring cam
-
21503190022 R.h. spring camR.h. spring cam
-
22234021410 Flat washer M12Flat washer M12
-
23293370013 E-circlipE-circlip
-
24503188938 Rear cross shaftRear cross shaft
-
25503190422 BushingBushing
-
26503190328 WasherWasher
-
27503168800 Retaining ringRetaining ring
-
28503190269 Wheel 165. Includes 28 - 29.Wheel 165. Includes 28 - 29.
-
29503189567 Ball bearing 6205Ball bearing 6205
-
30206260844 Pressure screw M6 x 8Pressure screw M6 x 8
-
31207205544 Hex screw M10 x 55 (scotch grip)Hex screw M10 x 55 (scotch grip)
-
32503189564 WasherWasher
-
33219700417 Synthetic Grease, 400gSynthetic Grease, 400g
