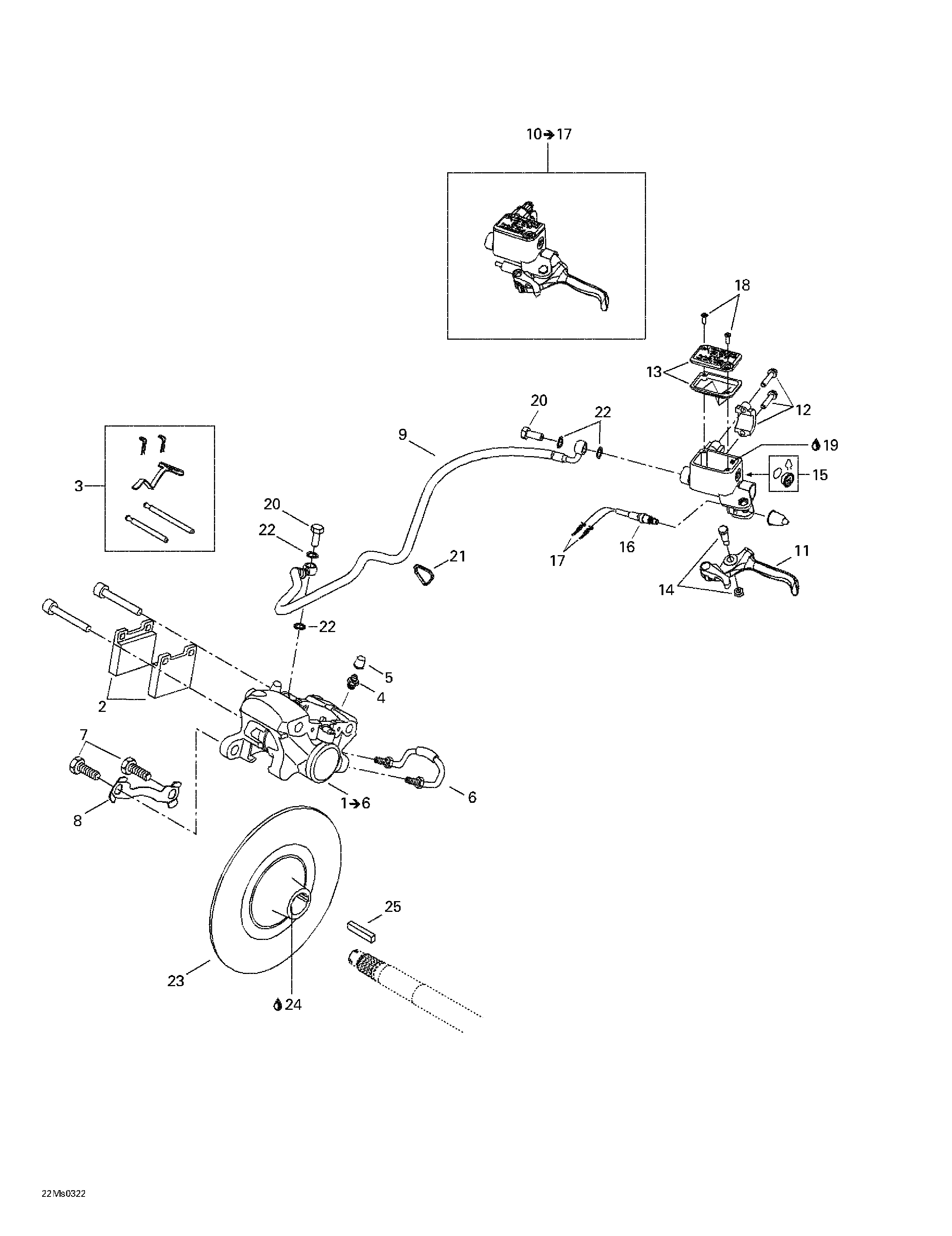

06- Hydraulic Brake для BRP Ski-Doo Summit X 800 HO - 2003
-
№АртикулНазвание
-
1507032353 Caliper. Includes 1 - 6.Caliper. Includes 1 - 6.
-
2415084600 Brake pad kitBrake pad kit
-
3414990700 Kit (pins, retainers, spring)Kit (pins, retainers, spring)
-
4414989800 Bleeder screwBleeder screw
-
5414989700 CapCap
-
6414989900 Rigid tubingRigid tubing
-
7207103544 Hex screw M10 x 35Hex screw M10 x 35
-
8507032316 Tab lockTab lock
-
9507032356 HoseHose
-
10507032362 Master cylindesr. Includes 10 - 17.Master cylindesr. Includes 10 - 17.
-
11507032268 Brake Short Lever Ass'yBrake Short Lever Ass'y
-
12415029800 ClampClamp
-
13415029900 CapCap
-
14415030000 PinPin
-
15414990600 WindowWindow
-
16507032366 MicroswitchMicroswitch
-
17515175232 Male terminalMale terminal
-
18216141260 ScrewScrew
-
19293600063 Brake fluid, SRF (Dot 4)Brake fluid, SRF (Dot 4)
-
19293600062 Brake fuide, GTLMA (DOT 4), 12 x 354 mlBrake fuide, GTLMA (DOT 4), 12 x 354 ml
-
20414920500 Banjo boltBanjo bolt
-
21293750002 Tie-rap 130 mmTie-rap 130 mm
-
22414920600 Washer for hose connectionWasher for hose connection
-
23507032363 DiskDisk
-
24293800070 Loctite 676, antiseize lubricant, 8 ozLoctite 676, antiseize lubricant, 8 oz
-
25507021300 KeyKey
