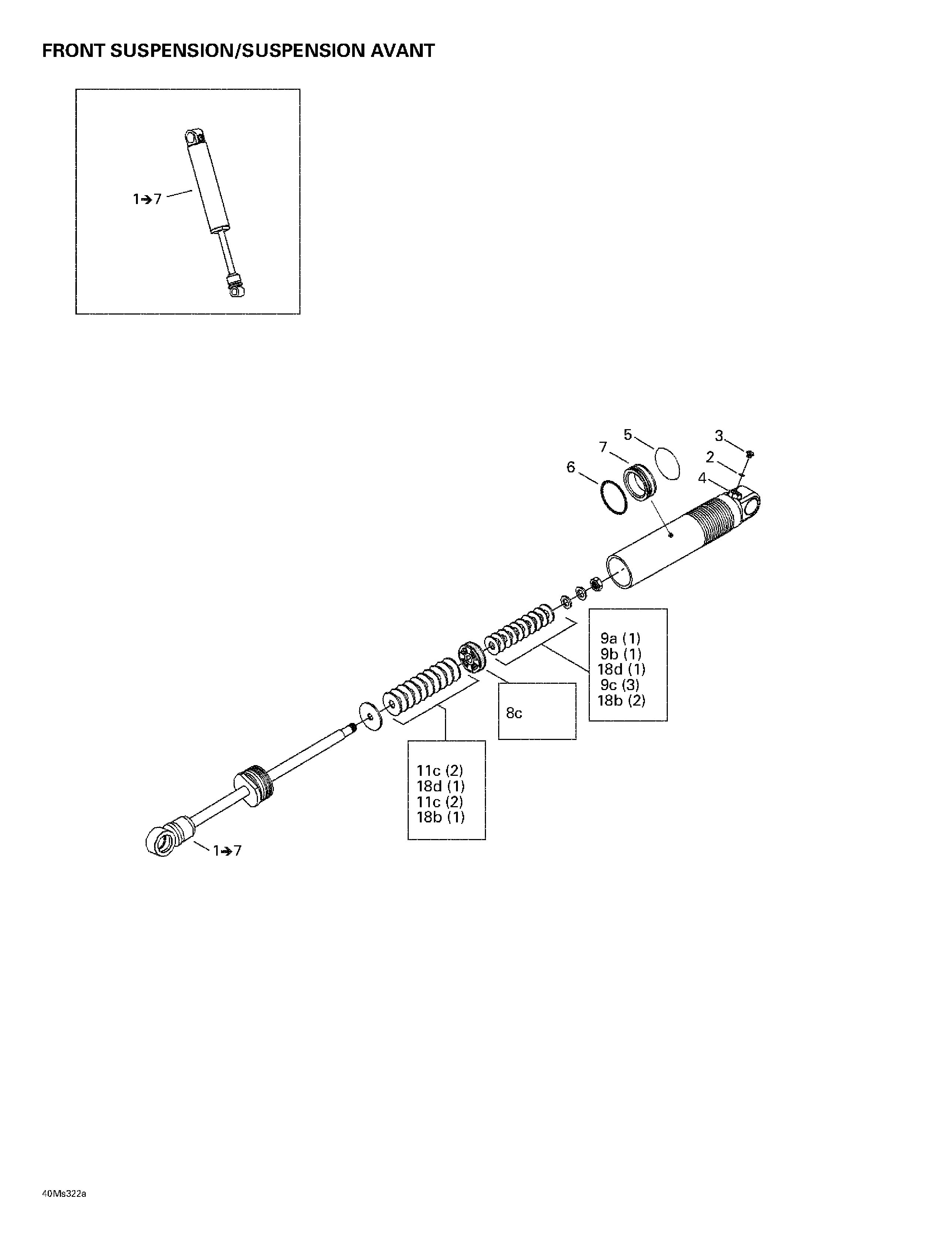

07- Front Take Apart Shocks для BRP Ski-Doo Summit X 800 HO - 2003
-
№АртикулНазвание
-
1505071135 Front shock. Includes 1 - 7.Front shock. Includes 1 - 7.
-
2505070400 O-ringO-ring
-
3505070399 ScrewScrew
-
4505070398 Air valveAir valve
-
5503189308 Piston ringPiston ring
-
6414888312 O-ringO-ring
-
7503189309 Free pistonFree piston
-
8a414888307 Piston (2 x 0.3-6) (C36)Piston (2 x 0.3-6) (C36)
-
8b414888306 Piston (2 x 0.3-4) (C36)Piston (2 x 0.3-4) (C36)
-
8c414888305 Piston (2 x 0.3-2) (C36)Piston (2 x 0.3-2) (C36)
-
8d414888304 Piston (C36)Piston (C36)
-
9a415039100 Leaf valve O30 x 0.254 (C36)Leaf valve O30 x 0.254 (C36)
-
9b414888318 Leaf valve O30 x 0.203 (C36)Leaf valve O30 x 0.203 (C36)
-
9c414888319 Leaf valve O30 x 0.152 (C36)Leaf valve O30 x 0.152 (C36)
-
10a414888320 Leaf valve O28 x 0.203 (C36)Leaf valve O28 x 0.203 (C36)
-
10b414888321 Leaf valve O28 x 0.152 (C36)Leaf valve O28 x 0.152 (C36)
-
11a415039000 Leaf valve O26 x 0.254 (C36)Leaf valve O26 x 0.254 (C36)
-
11b414888322 Leaf valve O26 x 0.203 (C36)Leaf valve O26 x 0.203 (C36)
-
11c414888323 Leaf valve O26 x 0.152 (C36)Leaf valve O26 x 0.152 (C36)
-
12a414888324 Leaf valve O22 x 0.203 (C36)Leaf valve O22 x 0.203 (C36)
-
12b414888325 Leaf valve O22 x 0.152 (C36)Leaf valve O22 x 0.152 (C36)
-
13a414888340 Leaf valve O21 x 0.114 (C36)Leaf valve O21 x 0.114 (C36)
-
14a414888326 Leaf valve O20 x 0.203 (C36)Leaf valve O20 x 0.203 (C36)
-
14b414888327 Leaf valve O20 x 0.152 (C36)Leaf valve O20 x 0.152 (C36)
-
14c414888328 Leaf valve O20 x 0.114 (C36)Leaf valve O20 x 0.114 (C36)
-
15a414888329 Leaf valve O18 x 0.203 (C36)Leaf valve O18 x 0.203 (C36)
-
15b414888330 Leaf valve O18 x 0.152 (C36)Leaf valve O18 x 0.152 (C36)
-
16a414888331 Leaf valve O16 x 0.254 (C36)Leaf valve O16 x 0.254 (C36)
-
16b414888332 Leaf valve O16 x 0.203 (C36)Leaf valve O16 x 0.203 (C36)
-
16c414888333 Leaf valve O16 x 0.152 (C36)Leaf valve O16 x 0.152 (C36)
-
16d415083900 Leaf valve O16 x 0.114 (C36)Leaf valve O16 x 0.114 (C36)
-
17a414888334 Leaf valve O15 x 0.254 (C36)Leaf valve O15 x 0.254 (C36)
-
17b414888335 Leaf valve O15 x 0.203 (C36)Leaf valve O15 x 0.203 (C36)
-
17c414888336 Leaf valve O15 x 0.152 (C36)Leaf valve O15 x 0.152 (C36)
-
17d414888337 Leaf valve O15 x 0.114 (C36)Leaf valve O15 x 0.114 (C36)
-
18a503189538 Leaf valve O12 x 0.254 (C36)Leaf valve O12 x 0.254 (C36)
-
18b414888338 Leaf valve O12 x 0.203 (C36)Leaf valve O12 x 0.203 (C36)
-
18c414888339 Leaf valve O12 x 0.152 (C36)Leaf valve O12 x 0.152 (C36)
-
18d415038800 Leaf valve O12 x 0.114 (C36)Leaf valve O12 x 0.114 (C36)
-
19293600035 Shock oil (not shown)Shock oil (not shown)
