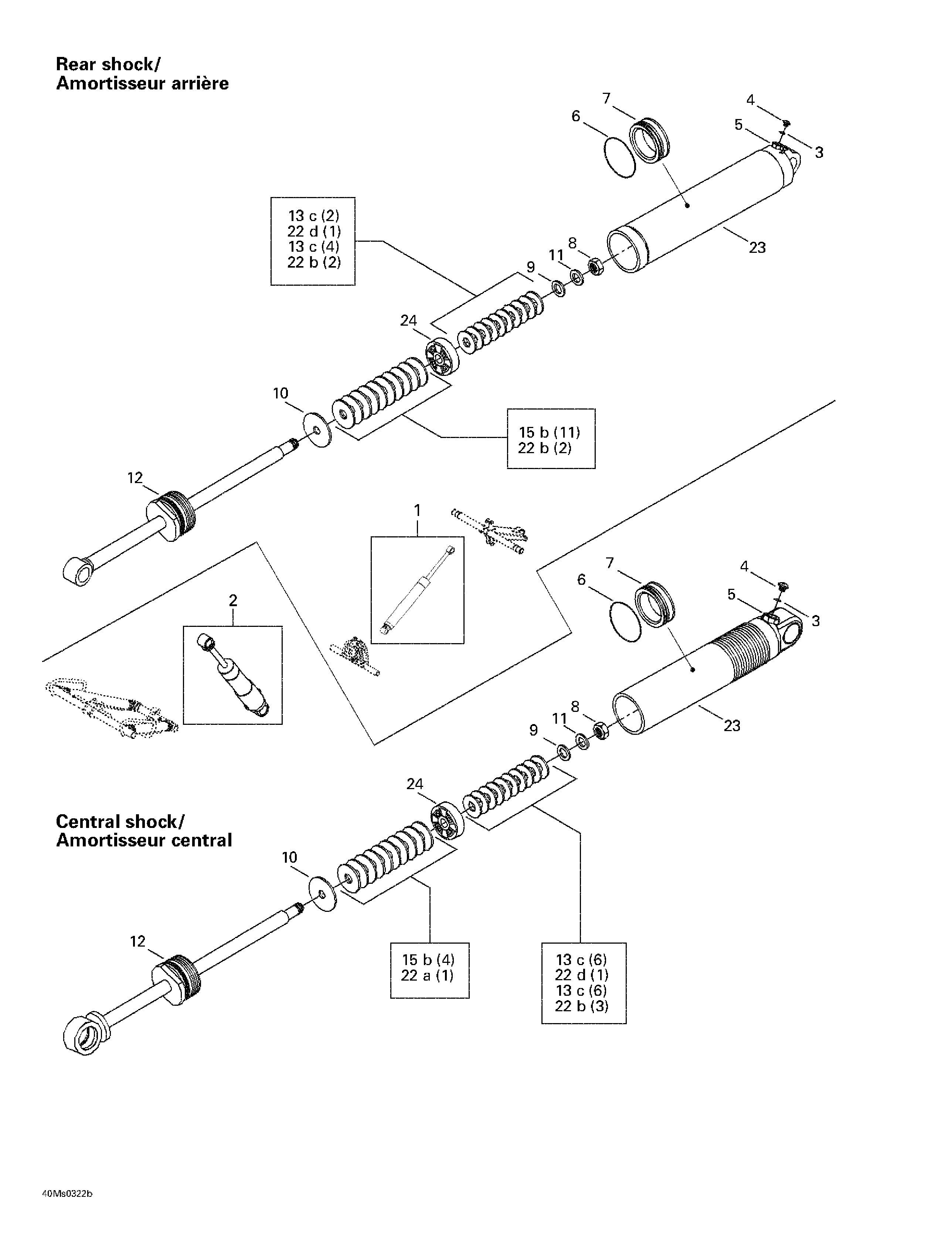

08- Rear Take Apart Shocks для BRP Ski-Doo Summit X 800 HO - 2003
-
№АртикулНазвание
-
1503190024 Rear shockRear shock
-
2503190017 Center shockCenter shock
-
3505070400 O-ringO-ring
-
4505070399 ScrewScrew
-
5505070398 Air valveAir valve
-
6414888312 O-ringO-ring
-
7415097900 Free pistonFree piston
-
13a415039100 (C36) Leaf Valve O30 x 0.254(C36) Leaf Valve O30 x 0.254
-
13b414888318 (C36) Leaf Valve O30 x 0.203(C36) Leaf Valve O30 x 0.203
-
13c414888319 (C36) Leaf Valve O30 x 0.152(C36) Leaf Valve O30 x 0.152
-
14a414888320 (C36) Leaf Valve O28 x 0.203(C36) Leaf Valve O28 x 0.203
-
14b414888321 (C36) Leaf Valve O28 x 0.152(C36) Leaf Valve O28 x 0.152
-
15a415039000 (C36) Leaf Valve O26 x 0.254(C36) Leaf Valve O26 x 0.254
-
16b414888322 (C36) Leaf Valve O26 x 0.203(C36) Leaf Valve O26 x 0.203
-
15c414888323 (C36) Leaf Valve O26 x 0.152(C36) Leaf Valve O26 x 0.152
-
16a414888324 (C36) Leaf Valve O22 x 0.203(C36) Leaf Valve O22 x 0.203
-
16b414888325 (C36) Leaf Valve O22 x 0.152(C36) Leaf Valve O22 x 0.152
-
17a414888340 (C36) Leaf Valve O21 x 0.114(C36) Leaf Valve O21 x 0.114
-
18a414888326 (C36) Leaf Valve O20 x 0.203(C36) Leaf Valve O20 x 0.203
-
18b414888327 (C36) Leaf Valve O20 x 0.152(C36) Leaf Valve O20 x 0.152
-
18c414888328 (C36) Leaf Valve O20 x 0.114(C36) Leaf Valve O20 x 0.114
-
19a414888329 (C36) Leaf Valve O18 x 0.203(C36) Leaf Valve O18 x 0.203
-
19b414888330 (C36) Leaf Valve O18 x 0.152(C36) Leaf Valve O18 x 0.152
-
20a414888331 (C36) Leaf Valve O16 x 0.254(C36) Leaf Valve O16 x 0.254
-
20b414888332 (C36) Leaf Valve O16 x 0.203(C36) Leaf Valve O16 x 0.203
-
20c414888333 (C36) Leaf Valve O16 x 0.152(C36) Leaf Valve O16 x 0.152
-
20d415038900 (C36) Leaf Valve O16 x 0.114(C36) Leaf Valve O16 x 0.114
-
21a414888331 (C36) Leaf Valve O16 x 0.254(C36) Leaf Valve O16 x 0.254
-
21b414888332 (C36) Leaf Valve O16 x 0.203(C36) Leaf Valve O16 x 0.203
-
21c414888333 (C36) Leaf Valve O16 x 0.152(C36) Leaf Valve O16 x 0.152
-
21d415038900 (C36) Leaf Valve O16 x 0.114(C36) Leaf Valve O16 x 0.114
-
22a503189538 (C36) Leaf Valve O12 x 0.254(C36) Leaf Valve O12 x 0.254
-
22b414888339 (C36) Leaf Valve O12 x 0.203(C36) Leaf Valve O12 x 0.203
-
22c414888338 (C36) Leaf Valve O12 x 0.152(C36) Leaf Valve O12 x 0.152
-
22d415038800 (C36) Leaf Valve O12 x 0.114(C36) Leaf Valve O12 x 0.114
