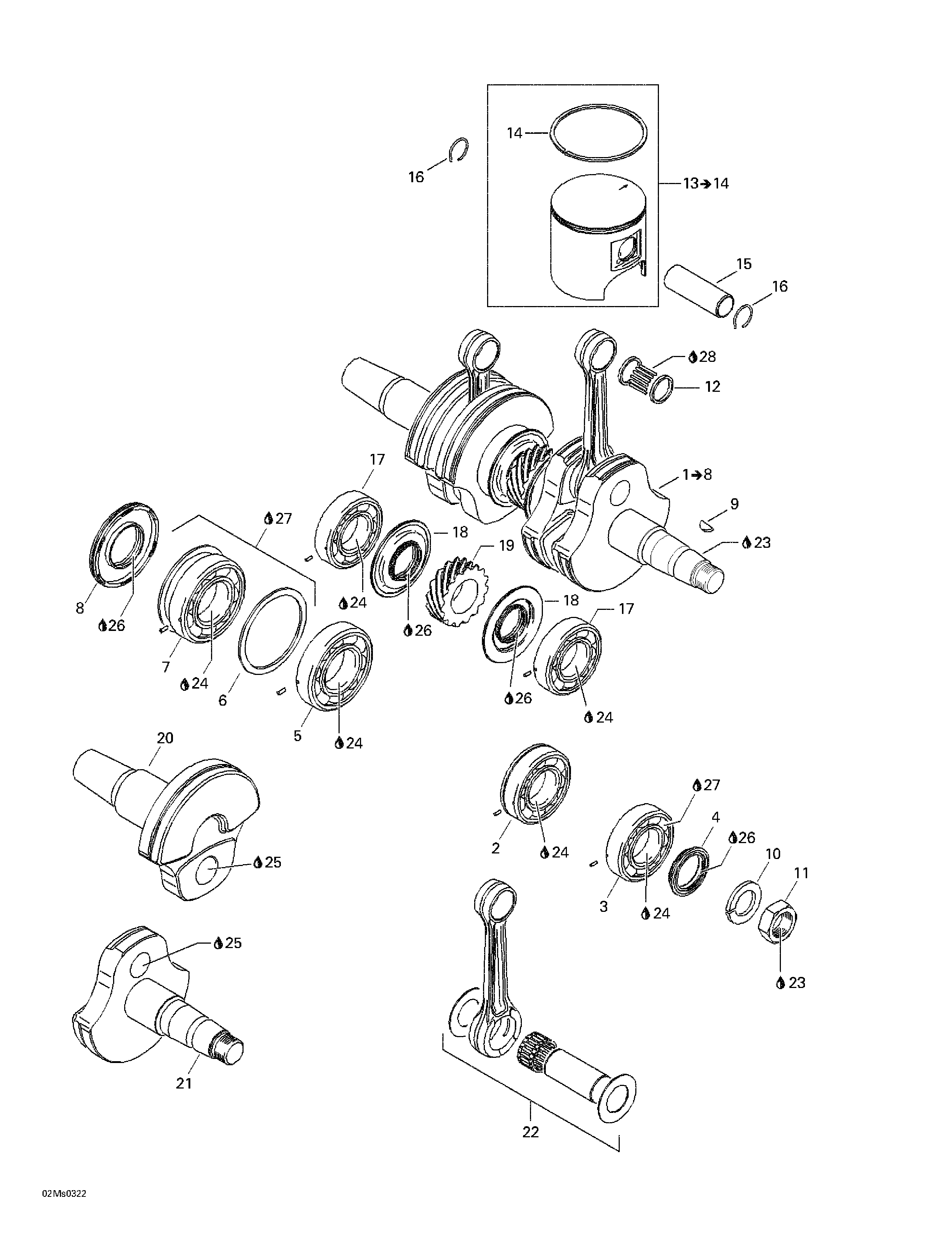

01- Crankshaft And Pistons для BRP Ski-Doo Summit X 800 HO - 2003
-
№АртикулНазвание
-
1420889671 Crankshaft ass'y. Includes 1 - 8.Crankshaft ass'y. Includes 1 - 8.
-
2420832635 Ball bearing 6207Ball bearing 6207
-
3420832575 Ball bearing 6207Ball bearing 6207
-
4420931792 Oil sealOil seal
-
5420832606 Ball bearingBall bearing
-
6420926190 WasherWasher
-
7420832700 Ball bearingBall bearing
-
8420931285 Oil sealOil seal
-
9420246015 Woodruff keyWoodruff key
-
10420945759 Lock washer 22 mmLock washer 22 mm
-
11420842230 Hex. nut M22Hex. nut M22
-
12420832425 Needle bearingNeedle bearing
-
13420889481 Piston ass'y (81.87 mm). Includes 13 - 14.Piston ass'y (81.87 mm). Includes 13 - 14.
-
14420815218 Semi-trapez ringSemi-trapez ring
-
15420916370 Gudgeon pinGudgeon pin
-
16420845106 Piston circlipPiston circlip
-
17420832575 Ball bearing 6207Ball bearing 6207
-
18420931455 Oil sealOil seal
-
19420834355 Central gear (15 teeth)Central gear (15 teeth)
-
20420819032 Crankshaft (PTO)Crankshaft (PTO)
-
21420819061 Crankshaft (MAG)Crankshaft (MAG)
-
22420889108 Rod repair kit (MAG)Rod repair kit (MAG)
-
420889109 Rod repair kit (PTO)Rod repair kit (PTO)
-
23293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
24293800070 Loctite 767, antiseize lubricant, 8 ozLoctite 767, antiseize lubricant, 8 oz
-
25413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
26420899271 Petamo grease, GHY 133N, 400 gPetamo grease, GHY 133N, 400 g
-
27293550021 Isoflex grease, 50 gIsoflex grease, 50 g
-
28413802900 Injection oil (12 x 1 Liter)Injection oil (12 x 1 Liter)
