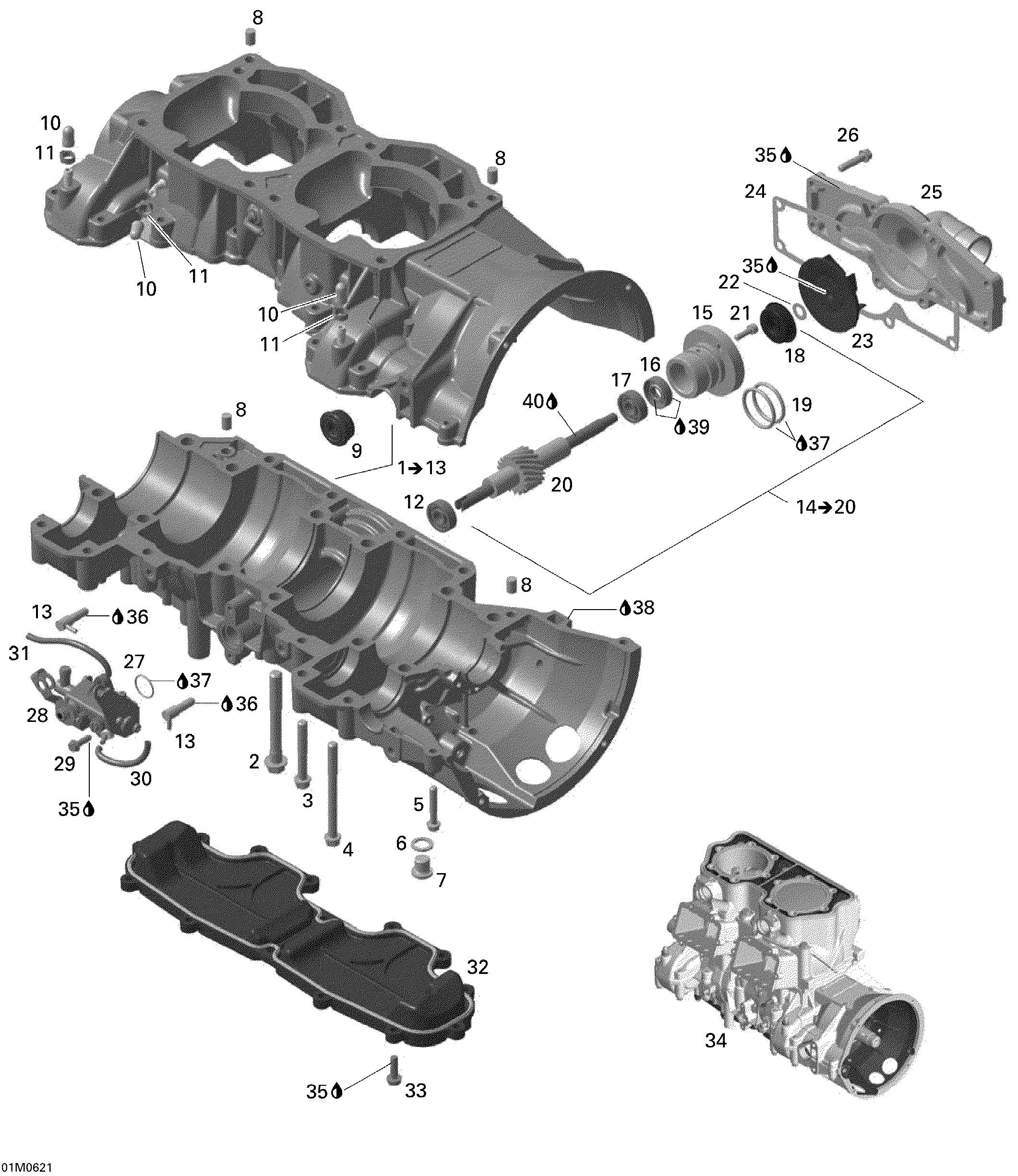

01- Crankcase для BRP Ski-Doo Summit 1000 SDI, Highmark & Highmark X - 2006
-
№АртикулНазвание
-
1420889226 Crankcase Ass'y. Includes 1 to 13Crankcase Ass'y. Includes 1 to 13
-
2420440442 Torx Flanged Screw M10 X 85Torx Flanged Screw M10 X 85
-
3420440392 Torx Flanged Screw M10 X 55Torx Flanged Screw M10 X 55
-
4420440412 Hex Flanged Screw M8 X 90Hex Flanged Screw M8 X 90
-
5420440272 Hex Flanged Screw M6 X 35Hex Flanged Screw M6 X 35
-
6420250640 GasketGasket
-
7420241700 Plug Screw M12 X 1.5Plug Screw M12 X 1.5
-
8420632010 Center PinCenter Pin
-
9420660890 Cable GrommetCable Grommet
-
10420960770 CapCap
-
11420853653 ClampClamp
-
12420232100 Ball BearingBall Bearing
-
13420956510 Check ValveCheck Valve
-
14420837671 Water Pump/oil Pump Ass'y. Includes 14 to 20Water Pump/oil Pump Ass'y. Includes 14 to 20
-
16420230196 Oil SealOil Seal
-
17420232100 Ball BearingBall Bearing
-
18420650370 Rotary SealRotary Seal
-
19420950890 O-RingO-Ring
-
21420840511 Socket Head Screw M5 X 16Socket Head Screw M5 X 16
-
22420227945 WasherWasher
-
23420922805 Water ImpellerWater Impeller
-
24420630620 GasketGasket
-
25420922920 Water Pump HousingWater Pump Housing
-
26420440232 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
27293300041 O-ringO-ring
-
28420888772 Oil Pump Ass'yOil Pump Ass'y
-
29420841555 Hex Tapping Screw M5 X 20Hex Tapping Screw M5 X 20
-
30414413800 Oil LineOil Line
-
31414413800 Oil LineOil Line
-
32420812342 Waterduct Cover, Heat ExchangerWaterduct Cover, Heat Exchanger
-
33420941250 Hex Tapping Screw M6 X 20Hex Tapping Screw M6 X 20
-
34420099502 Short Block 995 SDIShort Block 995 SDI
-
35293800060 Loctite 243, 250 mlLoctite 243, 250 ml
-
36413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
37413707000 Molykote 111, 150 GMolykote 111, 150 G
-
38293800081 Loctite 5910, 300 mlLoctite 5910, 300 ml
-
39420899271 Petamo Grease, Ghy133n, 400 GPetamo Grease, Ghy133n, 400 G
-
40413802900 Injection Oil (12 X 1 Liter)Injection Oil (12 X 1 Liter)
