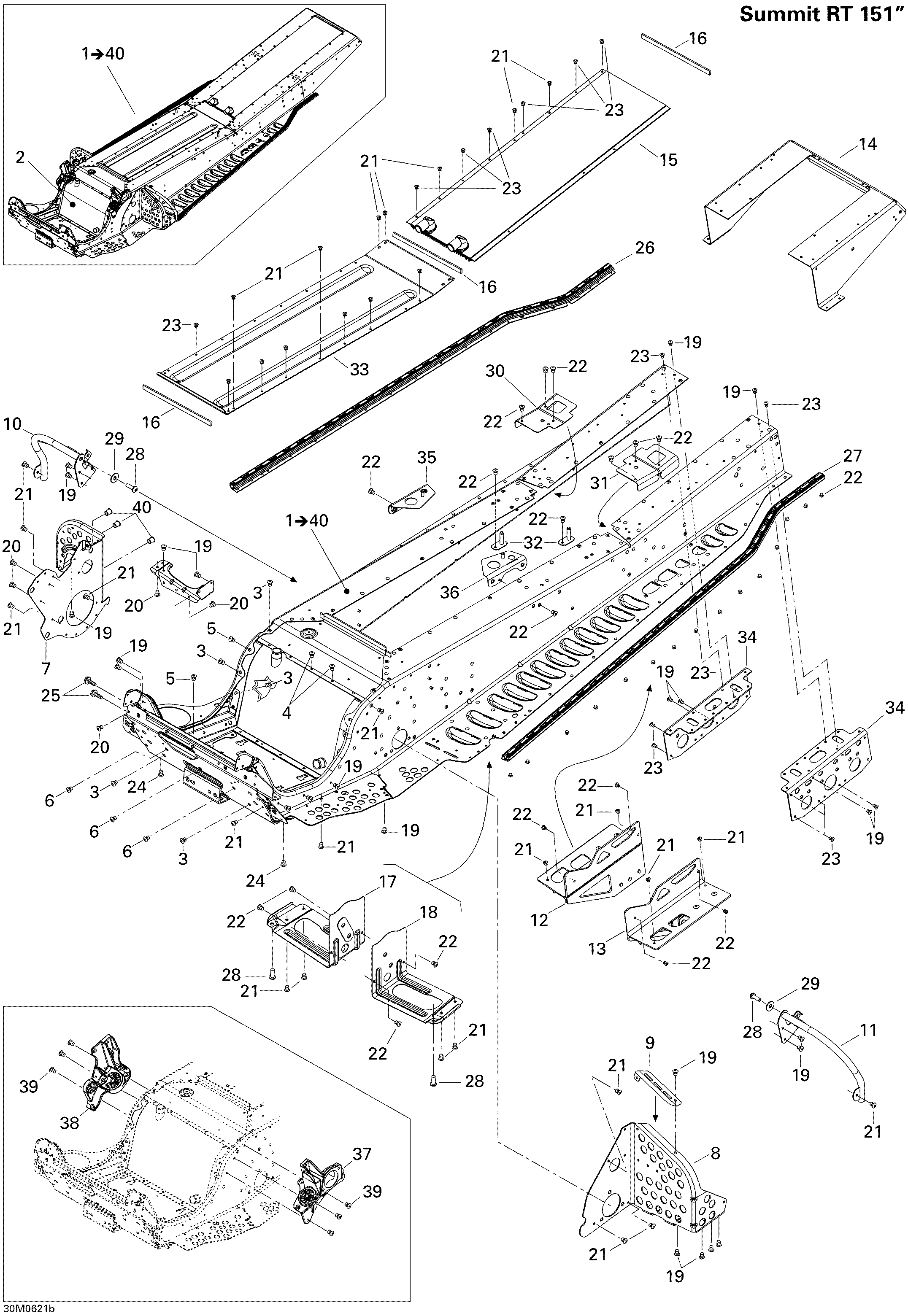

09- Frame RT 151 для BRP Ski-Doo Summit 1000 SDI, Highmark & Highmark X - 2006
-
№АртикулНазвание
-
1415129140 Frame Rt 151''. Includes 1 to 40Frame Rt 151''. Includes 1 to 40
-
1415129149 Frame Rt 151''. X / Includes 1 to 40Frame Rt 151''. X / Includes 1 to 40
-
3390909200 Avex RivetAvex Rivet
-
4390909100 Avex RivetAvex Rivet
-
5390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
6390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
9518323105 Plate, BlackPlate, Black
-
10518324098 RH Toe Hold SupportRH Toe Hold Support
-
11518324097 LH Toe Hold SupportLH Toe Hold Support
-
12518324157 RH Suspension Bracket Ass'yRH Suspension Bracket Ass'y
-
13518324154 LH Suspension Bracket Ass'yLH Suspension Bracket Ass'y
-
14518324910 Rear CapRear Cap
-
14518325008 Rear Cap. XRear Cap. X
-
15518324856 Rear RadiatorRear Radiator
-
16293200097 GasketGasket
-
17518323952 RH Footrest ReinforcementRH Footrest Reinforcement
-
18518323954 LH Footrest ReinforcementLH Footrest Reinforcement
-
19390909200 Avex RivetAvex Rivet
-
20390909100 Avex RivetAvex Rivet
-
21390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
22390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
24390910300 Rivet HenrobRivet Henrob
-
25207582544 Hex Flanged Screw M8 X 25, Scotch GripHex Flanged Screw M8 X 25, Scotch Grip
-
26518324978 RH RollerRH Roller
-
27518324979 LH RollerLH Roller
-
28205982086 Socket Head Screw M8 X 20, Scotch GripSocket Head Screw M8 X 20, Scotch Grip
-
29234082410 Flat Washer M8Flat Washer M8
-
30518324431 RH Frame ReinforcementRH Frame Reinforcement
-
31518324432 LH Frame ReinforcementLH Frame Reinforcement
-
32518322791 Tank BracketTank Bracket
-
33518323804 Center PlateCenter Plate
-
34518324991 Rear Reinforcement PlateRear Reinforcement Plate
-
35518324385 RH Frame Reinforcement, BlackRH Frame Reinforcement, Black
-
36518324386 LH Frame Reinforcement, BlackLH Frame Reinforcement, Black
-
37518323715 LH Engine SupportLH Engine Support
-
38518323716 RH Engine SupportRH Engine Support
-
39293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
40415107300 InsertInsert
