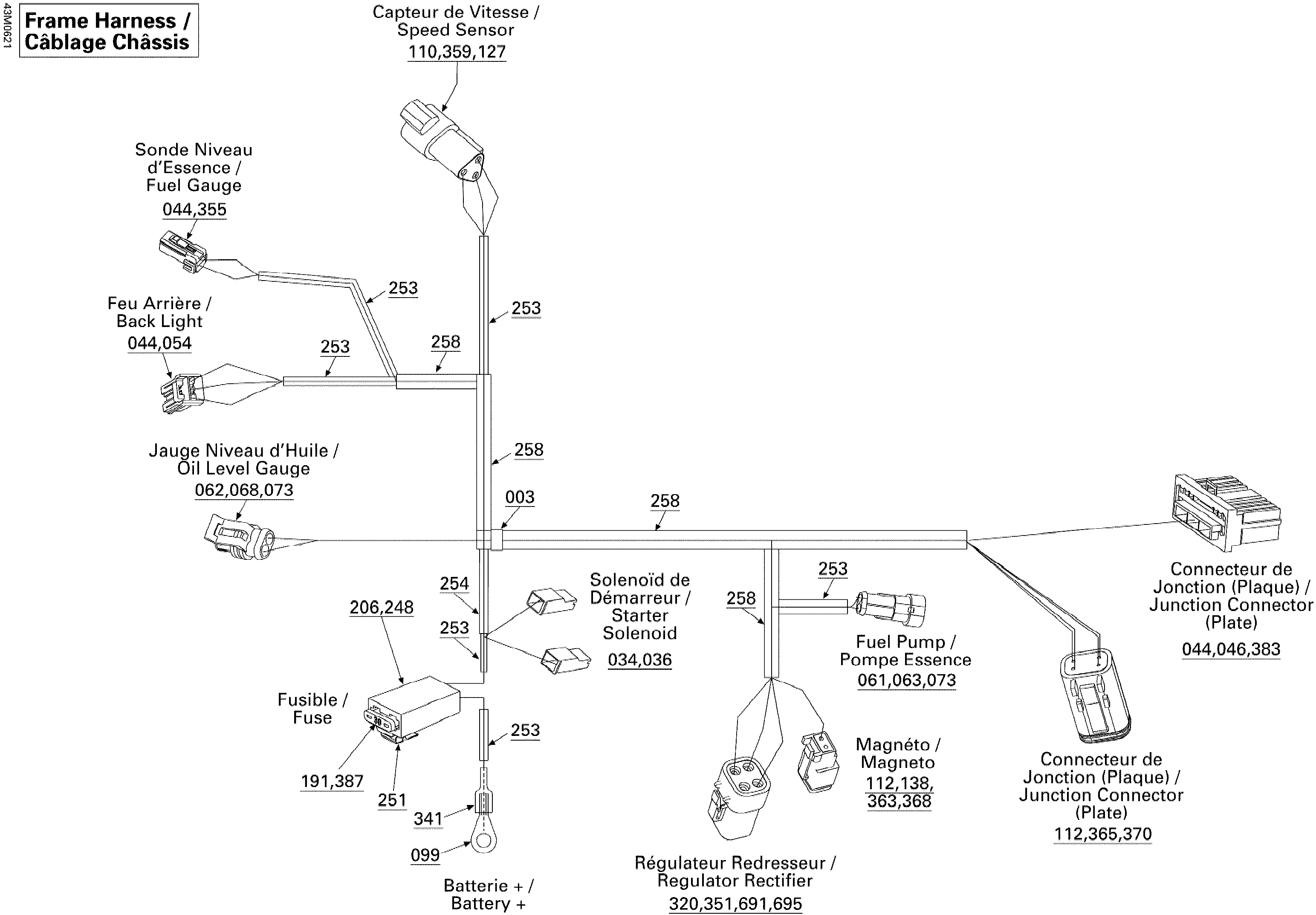

10- Electrical Harness для BRP Ski-Doo Summit 1000 SDI, Highmark & Highmark X - 2006
-
№АртикулНазвание
-
1515176389 Frame Harness Ass'y. Includes 1 to 695Frame Harness Ass'y. Includes 1 to 695
-
34409010100 Female TerminalFemale Terminal
-
36409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
44515175231 Female TerminalFemale Terminal
-
46515175282 Female TerminalFemale Terminal
-
54515175495 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
61409012900 Male TerminalMale Terminal
-
62278001014 Female TerminalFemale Terminal
-
63409209400 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
68409209500 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
73278001013 SealSeal
-
99278000992 Ring TerminalRing Terminal
-
110278000631 Male TerminalMale Terminal
-
112278000632 Female TerminalFemale Terminal
-
127409207600 Male Lock, 3 CircuitsMale Lock, 3 Circuits
-
138293000052 Sealing CapSealing Cap
-
191410917200 Fuse, 30 AmperesFuse, 30 Amperes
-
206409004200 Female TerminalFemale Terminal
-
248409004000 Fuse HolderFuse Holder
-
251409014200 ClipClip
-
253515175442 Tubing, 6 mmTubing, 6 mm
-
254409901700 Tubing, 9 mmTubing, 9 mm
-
258415079900 Tubing, 10 mmTubing, 10 mm
-
320515175567 Female TerminalFemale Terminal
-
351278001474 Female Lock, 4 CircuitsFemale Lock, 4 Circuits
-
355515175658 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
359515175666 Male Terminal Housing, 3 CircuitsMale Terminal Housing, 3 Circuits
-
363515175670 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
365515175672 Female Terminal Housing, 4 CircuitsFemale Terminal Housing, 4 Circuits
-
368515175675 Female Lock, 2 CircuitsFemale Lock, 2 Circuits
-
370515175677 Lock Female, 4 CircuitsLock Female, 4 Circuits
-
383515175719 Female Terminal Housing, 11 CircuitsFemale Terminal Housing, 11 Circuits
-
387293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
691278002027 Male Terminal Housing, 4 CircuitsMale Terminal Housing, 4 Circuits
-
695515176283 BouchonBouchon
