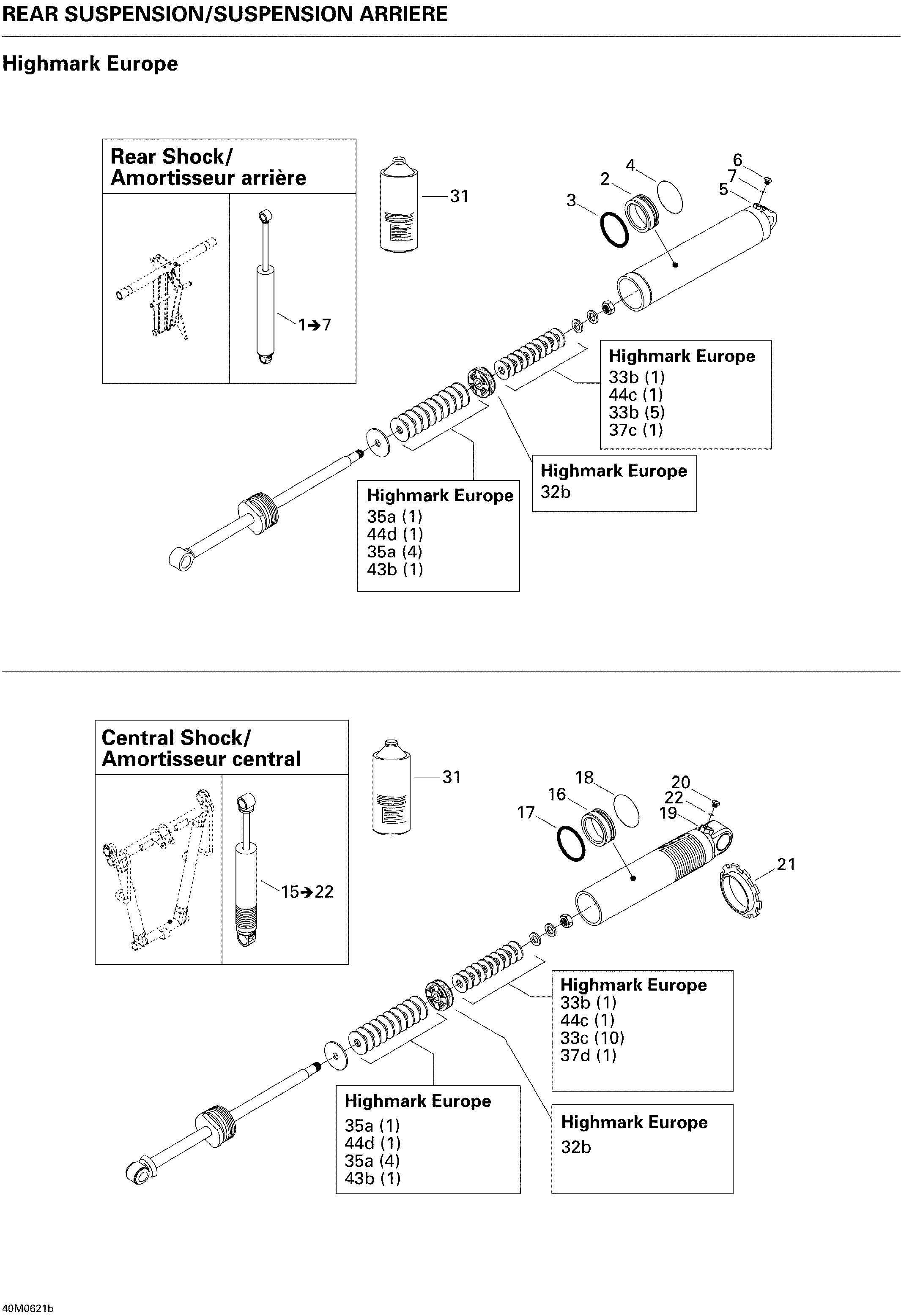

08- Take Apart Shock, Rear HM для BRP Ski-Doo Summit 1000 SDI, Highmark & Highmark X - 2006
-
№АртикулНазвание
-
1503190990 Rear Shock. Includes 1 to 7/ EuropeRear Shock. Includes 1 to 7/ Europe
-
2503189309 Free Piston. EuropeFree Piston. Europe
-
3414888312 O-Ring. EuropeO-Ring. Europe
-
4503189308 Piston Ring. EuropePiston Ring. Europe
-
5505070398 Air Valve Ring. EuropeAir Valve Ring. Europe
-
6505070399 Screw. EuropeScrew. Europe
-
7505070400 O-Ring. EuropeO-Ring. Europe
-
15503190662 Center Shock. Includes 15 to 22 / EuropeCenter Shock. Includes 15 to 22 / Europe
-
16503189309 Free Piston. EuropeFree Piston. Europe
-
17414888312 O-Ring. EuropeO-Ring. Europe
-
18503189308 Piston Ring. EuropePiston Ring. Europe
-
19505070398 Air Valve Ring. EuropeAir Valve Ring. Europe
-
20505070399 Screw. EuropeScrew. Europe
-
21414888316 Spring Collar. EuropeSpring Collar. Europe
-
22505070400 O-Ring. EuropeO-Ring. Europe
-
31293600035 Shock Oil, 1 LiterShock Oil, 1 Liter
-
32a414888304 Piston (C36)Piston (C36)
-
32c414888305 Piston (2 X 0.3-2) (C36)Piston (2 X 0.3-2) (C36)
-
32e414888306 Piston (2 X 0.3-4) (C36)Piston (2 X 0.3-4) (C36)
-
32g414888307 Piston (2 X 0.3-6) (C36)Piston (2 X 0.3-6) (C36)
-
33a415039100 Leaf Valve O30 X 0.254 (C36)Leaf Valve O30 X 0.254 (C36)
-
33b414888318 Leaf Valve O30 X 0.203 (C36)Leaf Valve O30 X 0.203 (C36)
-
33c414888319 Leaf Valve O30 X 0.152 (C36)Leaf Valve O30 X 0.152 (C36)
-
34b414888320 Leaf Valve O28 X 0.203 (C36)Leaf Valve O28 X 0.203 (C36)
-
34c414888321 Leaf Valve O28 X 0.152 (C36)Leaf Valve O28 X 0.152 (C36)
-
35a415039000 Leaf Valve O26 X 0.254 (C36)Leaf Valve O26 X 0.254 (C36)
-
35b414888322 Leaf Valve O26 X 0.203 (C36)Leaf Valve O26 X 0.203 (C36)
-
35c414888323 Leaf Valve O26 X 0.152 (C36)Leaf Valve O26 X 0.152 (C36)
-
37b414888324 Leaf Valve O22 X 0.203 (C36)Leaf Valve O22 X 0.203 (C36)
-
37c414888325 Leaf Valve O22 X 0.152 (C36)Leaf Valve O22 X 0.152 (C36)
-
38d414888340 Leaf Valve O21 X 0.114 (C36)Leaf Valve O21 X 0.114 (C36)
-
39b414888326 Leaf Valve O20 X 0.203 (C36)Leaf Valve O20 X 0.203 (C36)
-
39c414888327 Leaf Valve O20 X 0.152 (C36)Leaf Valve O20 X 0.152 (C36)
-
39D414888328 Leaf Valve O20 X 0.114 (C36)Leaf Valve O20 X 0.114 (C36)
-
41b414888329 Leaf Valve O18 X 0.203 (C36)Leaf Valve O18 X 0.203 (C36)
-
41c414888330 Leaf Valve O18 X 0.152 (C36)Leaf Valve O18 X 0.152 (C36)
-
43a414888331 Leaf Valve O16 X 0.254 (C36)Leaf Valve O16 X 0.254 (C36)
-
43b414888332 Leaf Valve O16 X 0.203 (C36)Leaf Valve O16 X 0.203 (C36)
-
43c414888333 Leaf Valve O16 X 0.152 (C36)Leaf Valve O16 X 0.152 (C36)
-
43d415038900 Leaf Valve O16 X 0.114 (C36)Leaf Valve O16 X 0.114 (C36)
-
44a414888334 Leaf Valve O15 X 0.254 (C36)Leaf Valve O15 X 0.254 (C36)
-
44b414888335 Leaf Valve O15 X 0.203 (C36)Leaf Valve O15 X 0.203 (C36)
-
44C414888336 Leaf Valve O15 X 0.152 (C36)Leaf Valve O15 X 0.152 (C36)
-
44D414888337 Leaf Valve O15 X 0.114 (C36)Leaf Valve O15 X 0.114 (C36)
-
47a503189538 Leaf Valve O12 X 0.254 (C36)Leaf Valve O12 X 0.254 (C36)
-
47b414888338 Leaf Valve O12 X 0.203 (C36)Leaf Valve O12 X 0.203 (C36)
-
47c414888339 Leaf Valve O12 X 0.152 (C36)Leaf Valve O12 X 0.152 (C36)
-
47d415038800 Leaf Valve O12 X 0.114 (C36)Leaf Valve O12 X 0.114 (C36)
