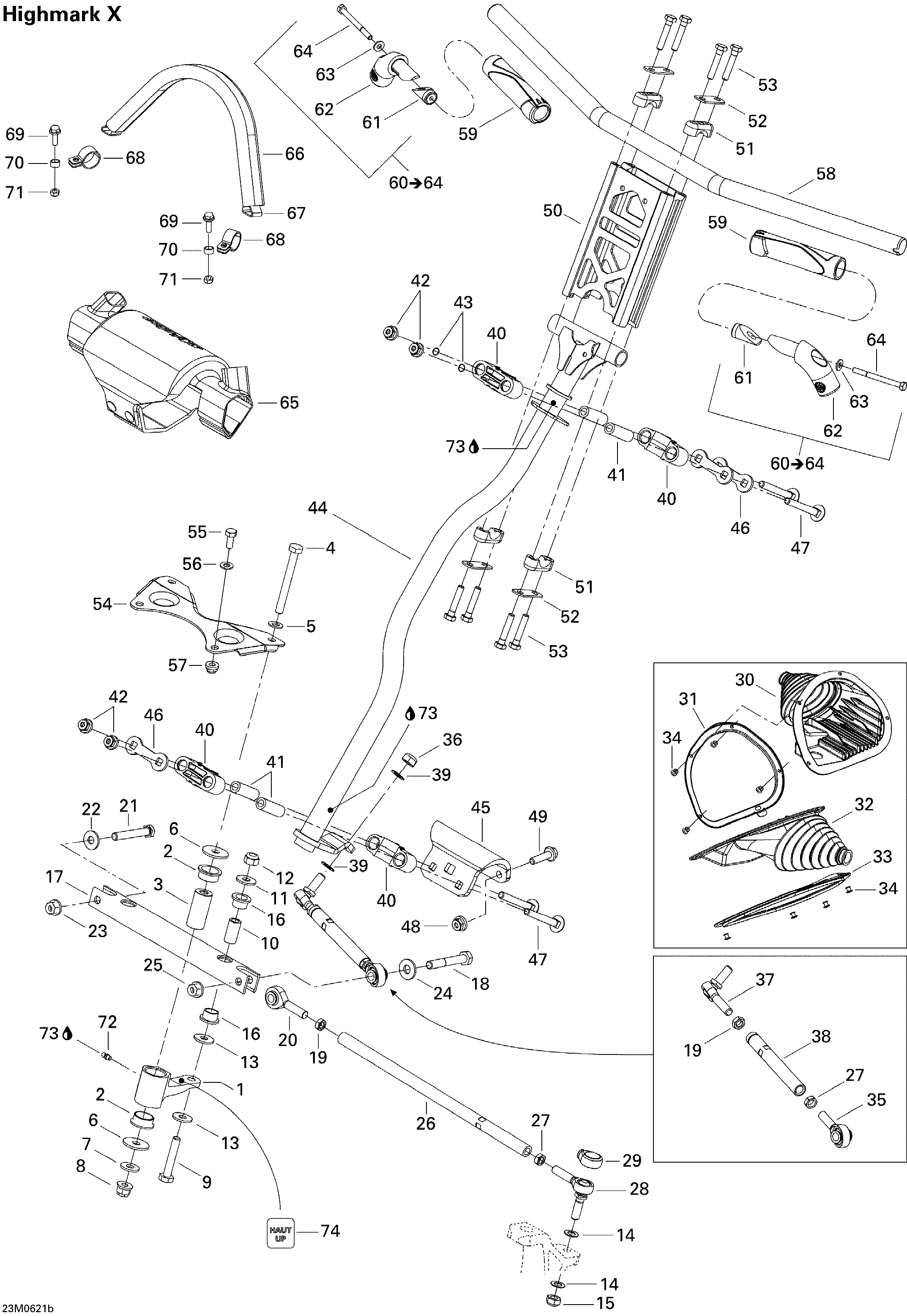

07- Steering System HMX для BRP Ski-Doo Summit 1000 SDI, Highmark & Highmark X - 2006
-
№АртикулНазвание
-
1506151627 RH Swivel ArmRH Swivel Arm
-
1506151628 LH Swivel ArmLH Swivel Arm
-
2415041100 CushionCushion
-
3506151272 Swivel PivotSwivel Pivot
-
4207009086 Hex Screw M10 X 90Hex Screw M10 X 90
-
5503183800 WasherWasher
-
6506150000 Washer 10 mmWasher 10 mm
-
7506151251 WasherWasher
-
8732610084 Hex Flanged Nut M10Hex Flanged Nut M10
-
9207005544 Hex Screw M10 X 55Hex Screw M10 X 55
-
10506151273 Pivot BarPivot Bar
-
11224002251 Flat WasherFlat Washer
-
12233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
13250200032 WasherWasher
-
14503175800 WasherWasher
-
15250100073 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
16506150200 Bushing SwivelBushing Swivel
-
17506151328 Swivel BarSwivel Bar
-
18207006544 Hex Screw M10 X 65Hex Screw M10 X 65
-
19250100016 LH Thread Hex Jam Nut M10LH Thread Hex Jam Nut M10
-
20506152018 LH Thread Ball JointLH Thread Ball Joint
-
21207004544 Hex Screw M10 X 45Hex Screw M10 X 45
-
22224002251 Flat WasherFlat Washer
-
23233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
24224002251 Flat WasherFlat Washer
-
25233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
26506151375 Tie-RodTie-Rod
-
27732610010 RH Thread Hex Jam Nut M10RH Thread Hex Jam Nut M10
-
28506152017 RH Thread Ball JointRH Thread Ball Joint
-
29506151650 Protection CapProtection Cap
-
30506151725 RH Tie-Rod CapRH Tie-Rod Cap
-
31506151356 RH Retainer RingRH Retainer Ring
-
32506151726 LH Tie-Rod CapLH Tie-Rod Cap
-
33506151357 LH Retainer RingLH Retainer Ring
-
34390909100 Avex RivetAvex Rivet
-
35506151828 RH Ball Joint 40°RH Ball Joint 40°
-
36250100073 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
37506151845 LH Joint BallLH Joint Ball
-
38506152006 Tie RodTie Rod
-
39503175800 WasherWasher
-
40506150400 Housing HalfHousing Half
-
41506150500 Housing BushingHousing Bushing
-
42233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
43506151140 O-RingO-Ring
-
44506151877 Main TubeMain Tube
-
45506151819 Main Tube SupportMain Tube Support
-
46506150600 Stopper PlateStopper Plate
-
47207787044 Carriage Bolt M8 X 70Carriage Bolt M8 X 70
-
48233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
49207683044 Hex Flange Screw M8 X 30Hex Flange Screw M8 X 30
-
50506151848 Handlebar ExtensionHandlebar Extension
-
51506151622 Steering SupportSteering Support
-
52506151196 ReinforcementReinforcement
-
53250000074 Hex Screw With Nylon M8 X 40Hex Screw With Nylon M8 X 40
-
54506151536 Pivot SupportPivot Support
-
55207182544 Hex Screw M8 X 25Hex Screw M8 X 25
-
56234081410 Flat Washer 8 mmFlat Washer 8 mm
-
57233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
58506151782 HandlebarHandlebar
-
59506152062 Handle GripHandle Grip
-
60506151936 J-hook Ass'y. Includes 60 to 64J-hook Ass'y. Includes 60 to 64
-
61506151839 Wedge LockWedge Lock
-
62506151837 Short J-hookShort J-hook
-
63250200039 Flat WasherFlat Washer
-
64207067084 Hex Screw M6 X 70Hex Screw M6 X 70
-
65506151889 Steering Pad, Yellow. Black-BlackSteering Pad, Yellow. Black-Black
-
65506152022 Steering Pad, Alloy Grey. Grey-RedSteering Pad, Alloy Grey. Grey-Red
-
66415095500 Tie-DownTie-Down
-
67415090200 GripGrip
-
68506151792 Support Plate, BlackSupport Plate, Black
-
69207662084 Hex Flanged Screw M6 X 20Hex Flanged Screw M6 X 20
-
70293900029 BushingBushing
-
71233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
72408200700 Grease FittingGrease Fitting
-
73413711500 Synthetic GreaseSynthetic Grease
-
74516001750 Haut/Up DecalHaut/Up Decal
