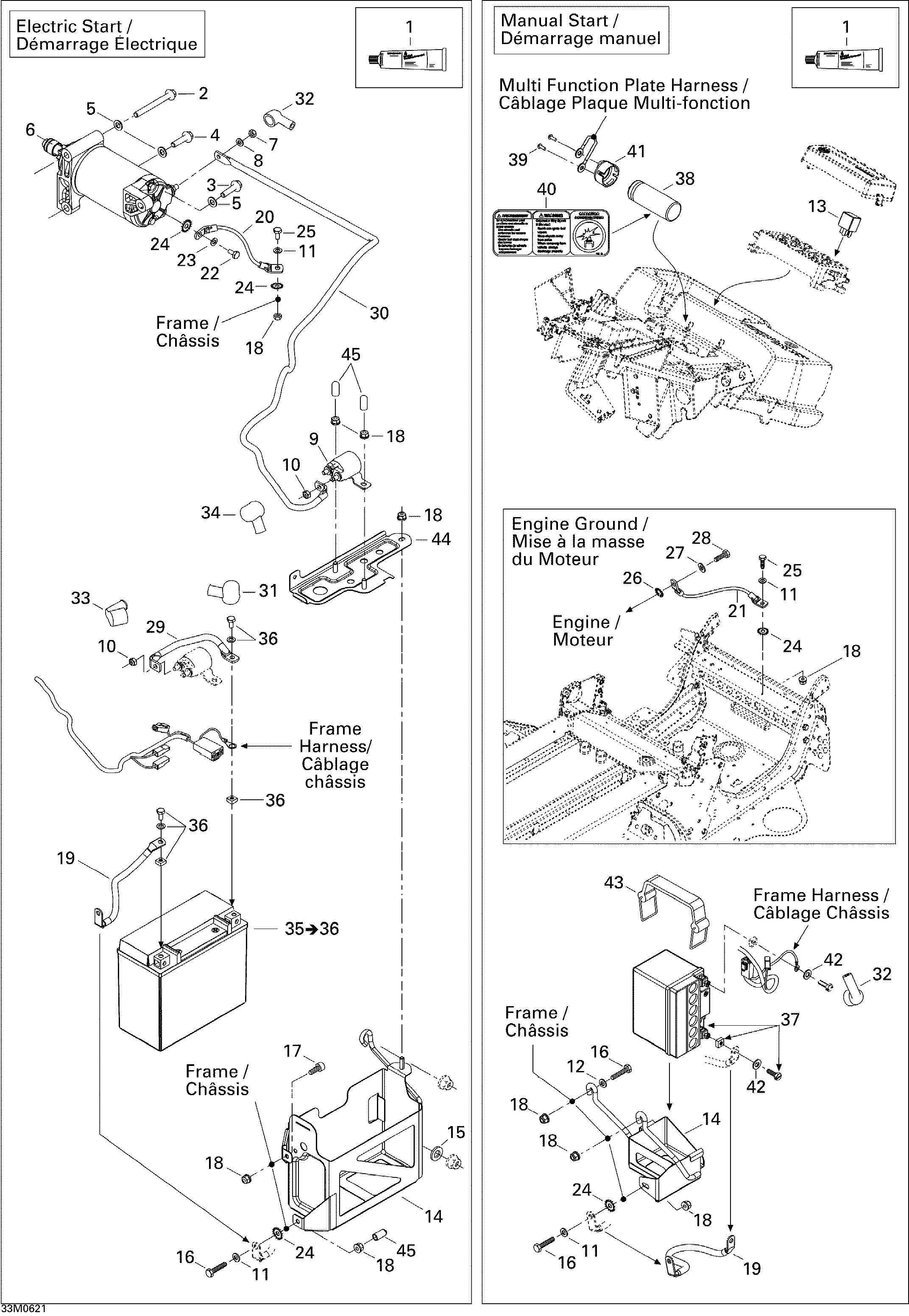

10- Electrical System для BRP Ski-Doo Summit 1000 SDI, Highmark & Highmark X - 2006
-
№АртикулНазвание
-
1293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
2207587544 Hex Flanged Screw M8 X 75, Scotch Grip. Electric StarterHex Flanged Screw M8 X 75, Scotch Grip. Electric Starter
-
3207583044 Hex Flanged Screw M8 X 30, Scotch Grip. Electric StarterHex Flanged Screw M8 X 30, Scotch Grip. Electric Starter
-
4207583044 Hex Flanged Screw M8 X 30, Scotch Grip. Electric StarterHex Flanged Screw M8 X 30, Scotch Grip. Electric Starter
-
5250200008 Flat Washer 8 mm. Electric StarterFlat Washer 8 mm. Electric Starter
-
6515176133 Electric Starter Ass'y. Electric StarterElectric Starter Ass'y. Electric Starter
-
7232561414 Elastic Stop Nut M6. Electric StarterElastic Stop Nut M6. Electric Starter
-
8234061410 Flat Washer M6. Electric StarterFlat Washer M6. Electric Starter
-
9515176011 Starter Relay. Electric StarterStarter Relay. Electric Starter
-
10232561414 Elastic Stop Nut M6. Electric StarterElastic Stop Nut M6. Electric Starter
-
11234061410 Flat Washer M6Flat Washer M6
-
12224061121 Flat Washer. Manuel StarterFlat Washer. Manuel Starter
-
13410113604 Relay. Manuel StarterRelay. Manuel Starter
-
14515176048 Battery Support. Electric StarterBattery Support. Electric Starter
-
14515176142 Battery Support. Manuel StarterBattery Support. Manuel Starter
-
15506151251 Washer. Electric StarterWasher. Electric Starter
-
16207162544 Hex Screw M6 X 25Hex Screw M6 X 25
-
16207162544 Hex Screw M6 X 25. Manuel StarterHex Screw M6 X 25. Manuel Starter
-
17205061644 Socket Head Screw M6 X 16. Electric StarterSocket Head Screw M6 X 16. Electric Starter
-
18233261414 Elastic Flanged Nut M6. Manuel StarterElastic Flanged Nut M6. Manuel Starter
-
18233261414 Elastic Flanged Nut M6. Electric StarterElastic Flanged Nut M6. Electric Starter
-
19515176172 Ground WireGround Wire
-
20515176277 Ground Wire. Electric StarterGround Wire. Electric Starter
-
21515176276 Battery Assisted Ground Cable. Manuel StarterBattery Assisted Ground Cable. Manuel Starter
-
22207361644 Hex Screw M6 X 16, Scotch Grip. Electric StarterHex Screw M6 X 16, Scotch Grip. Electric Starter
-
23234061410 Flat Washer M6. Electric StarterFlat Washer M6. Electric Starter
-
24250200041 Serrated Lock Washer 6 mm. Electric StarterSerrated Lock Washer 6 mm. Electric Starter
-
24250200041 Serrated Lock Washer 6 mmSerrated Lock Washer 6 mm
-
25207162044 Hex Screw M6 X 20Hex Screw M6 X 20
-
26234481608 Serrated Lock Washer 8 mm. Manuel StarterSerrated Lock Washer 8 mm. Manuel Starter
-
27234081410 Flat Washer 8 mm. Manuel StarterFlat Washer 8 mm. Manuel Starter
-
28207181644 Hex. Screw M8 X 16. Manuel StarterHex. Screw M8 X 16. Manuel Starter
-
29515175904 Battery Wire. Electric StarterBattery Wire. Electric Starter
-
30515176259 Battery Wire. Electric StarterBattery Wire. Electric Starter
-
31570151000 Protection Cap. Electric StarterProtection Cap. Electric Starter
-
32278001771 Protector CapProtector Cap
-
33570064200 Protection Cap. Electric StarterProtection Cap. Electric Starter
-
34515175919 Protector Cap. Electric StarterProtector Cap. Electric Starter
-
35410301203 Battery, 18 Amperes. Electric Starter / Includes 35 to 36Battery, 18 Amperes. Electric Starter / Includes 35 to 36
-
36295500849 Battery Fastener Kit. Electric StarterBattery Fastener Kit. Electric Starter
-
37410301204 Battery With Fasteners, 3 Amperes. Manuel StarterBattery With Fasteners, 3 Amperes. Manuel Starter
-
38515176387 Capacitor. Manuel StarterCapacitor. Manuel Starter
-
39515176257 Mechanical Screw. Manuel StarterMechanical Screw. Manuel Starter
-
40516002976 Capacitor Decal. Manuel StarterCapacitor Decal. Manuel Starter
-
41515176211 Cap. Manuel StarterCap. Manuel Starter
-
42234051410 Flat Washer. Manuel StarterFlat Washer. Manuel Starter
-
43515175475 Battery Strap. Manuel StarterBattery Strap. Manuel Starter
-
44515175735 Battery Strip. Electric StarterBattery Strip. Electric Starter
-
45515176141 Cap. Electric StarterCap. Electric Starter
