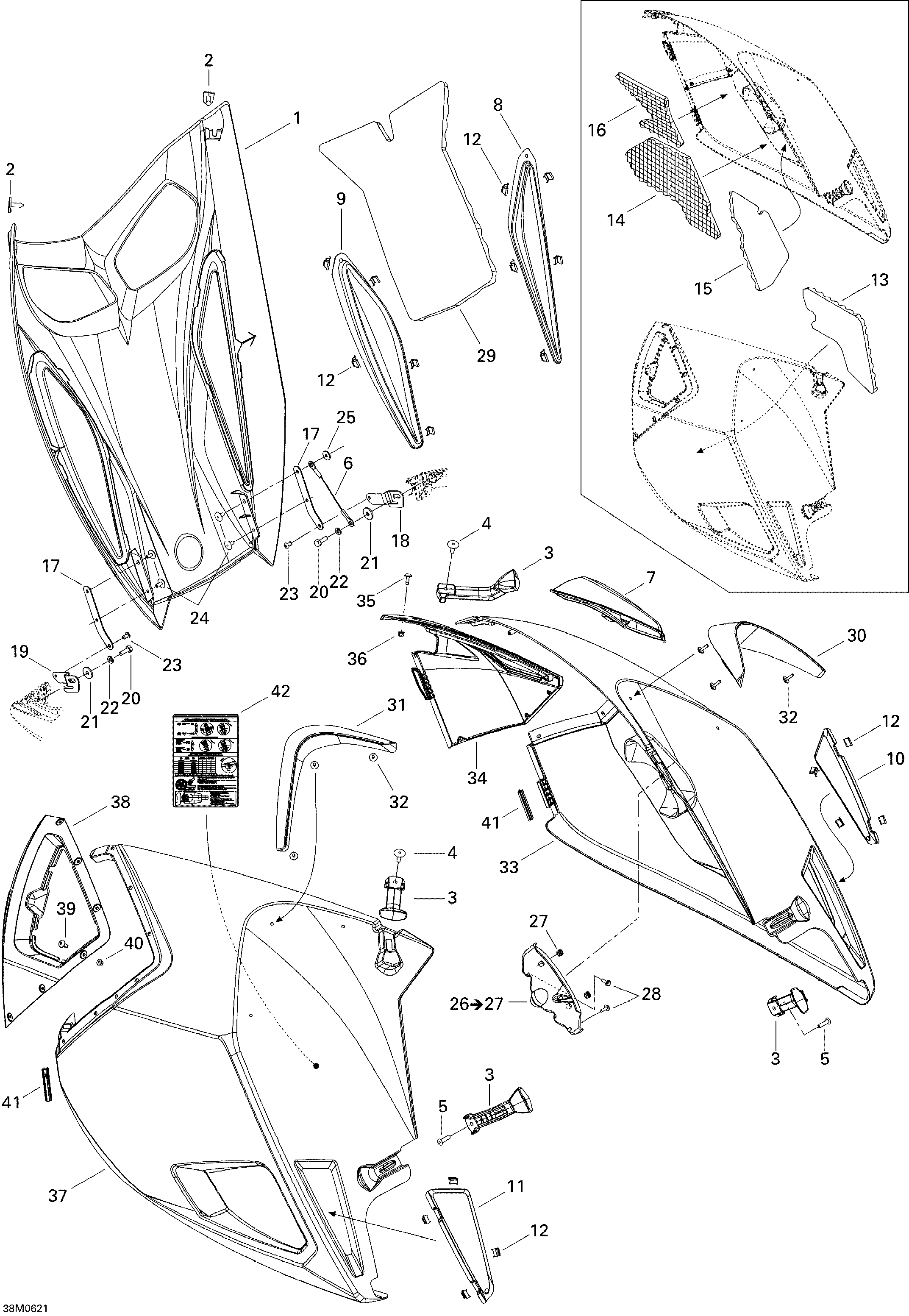

09- Hood для BRP Ski-Doo Summit 1000 SDI, Highmark & Highmark X - 2006
-
№АртикулНазвание
-
1517302788 Hood, Black, B-160. Black-Black / HMXHood, Black, B-160. Black-Black / HMX
-
1517303053 Hood, Voltage Blue Metallic, B-225. Blue-Black / HMHood, Voltage Blue Metallic, B-225. Blue-Black / HM
-
1517303574 Hood, Alloy Grey, B-206. Grey-Red / HMXHood, Alloy Grey, B-206. Grey-Red / HMX
-
1517303575 Hood, Viper Red, B-206. Red-Black / HMHood, Viper Red, B-206. Red-Black / HM
-
2517302543 PinPin
-
3517302448 Panel LatchPanel Latch
-
4293150087 Pop Rivet 3/16''Pop Rivet 3/16''
-
5390410100 Pop Rivet 3/16''Pop Rivet 3/16''
-
6517302673 Retainer CableRetainer Cable
-
7517303229 Muffler Grill. Grey-RedMuffler Grill. Grey-Red
-
7517303434 Muffler GrillMuffler Grill
-
8517302936 RH Hood GrillRH Hood Grill
-
9517302937 LH Hood GrillLH Hood Grill
-
10517303227 RH Panel GrillRH Panel Grill
-
11517303228 LH Panel GrillLH Panel Grill
-
12517302789 ClipClip
-
13517303392 LH Panel FoamLH Panel Foam
-
14517303393 RH Panel FoamRH Panel Foam
-
15517303394 RH Panel FoamRH Panel Foam
-
16517303454 RH Panel FoamRH Panel Foam
-
17517302544 Upper Half-HingeUpper Half-Hinge
-
18517302444 RH Lower Half-HingeRH Lower Half-Hinge
-
19517302445 LH Lower Half-HingeLH Lower Half-Hinge
-
20207161844 Hex Screw M6 X 18Hex Screw M6 X 18
-
21224061121 Flat WasherFlat Washer
-
22234161471 Lock Washer 6 mmLock Washer 6 mm
-
23390909200 Avex RivetAvex Rivet
-
24390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
25517225900 Flat WasherFlat Washer
-
26517303482 RH Console. Includes 26 to 27RH Console. Includes 26 to 27
-
27275500241 PlugPlug
-
28241151640 Hex Flanged Screw K50 X 16Hex Flanged Screw K50 X 16
-
29517303493 Hood FoamHood Foam
-
30517303143 RH Air Deflector, KneesRH Air Deflector, Knees
-
30517303444 RH Air Deflector, Knees. Grey-Red / HMXRH Air Deflector, Knees. Grey-Red / HMX
-
31517303142 LH Air Deflector, KneesLH Air Deflector, Knees
-
31517303443 LH Air Deflector, Knees. Grey-Red / HMXLH Air Deflector, Knees. Grey-Red / HMX
-
32250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
33517303361 RH Panel Ass'yRH Panel Ass'y
-
33517303553 RH Panel Ass'y. Grey-Red / HMXRH Panel Ass'y. Grey-Red / HMX
-
34517303106 RH Pannel HubRH Pannel Hub
-
35250000255 Torx Screw M5Torx Screw M5
-
36250100058 Nylon Screw 10/32''Nylon Screw 10/32''
-
37517303359 LH Panel Ass'yLH Panel Ass'y
-
37517303554 LH Panel Ass'y. Grey-Red / HMXLH Panel Ass'y. Grey-Red / HMX
-
38517303105 LH Pannel HubLH Pannel Hub
-
38517303371 LH Pannel HubLH Pannel Hub
-
39250000255 Torx Screw M5Torx Screw M5
-
40250100058 Nylon Screw 10/32''Nylon Screw 10/32''
-
41517302823 Hinge LockHinge Lock
-
42516002616 Decal, Suspension AdjustmentDecal, Suspension Adjustment
