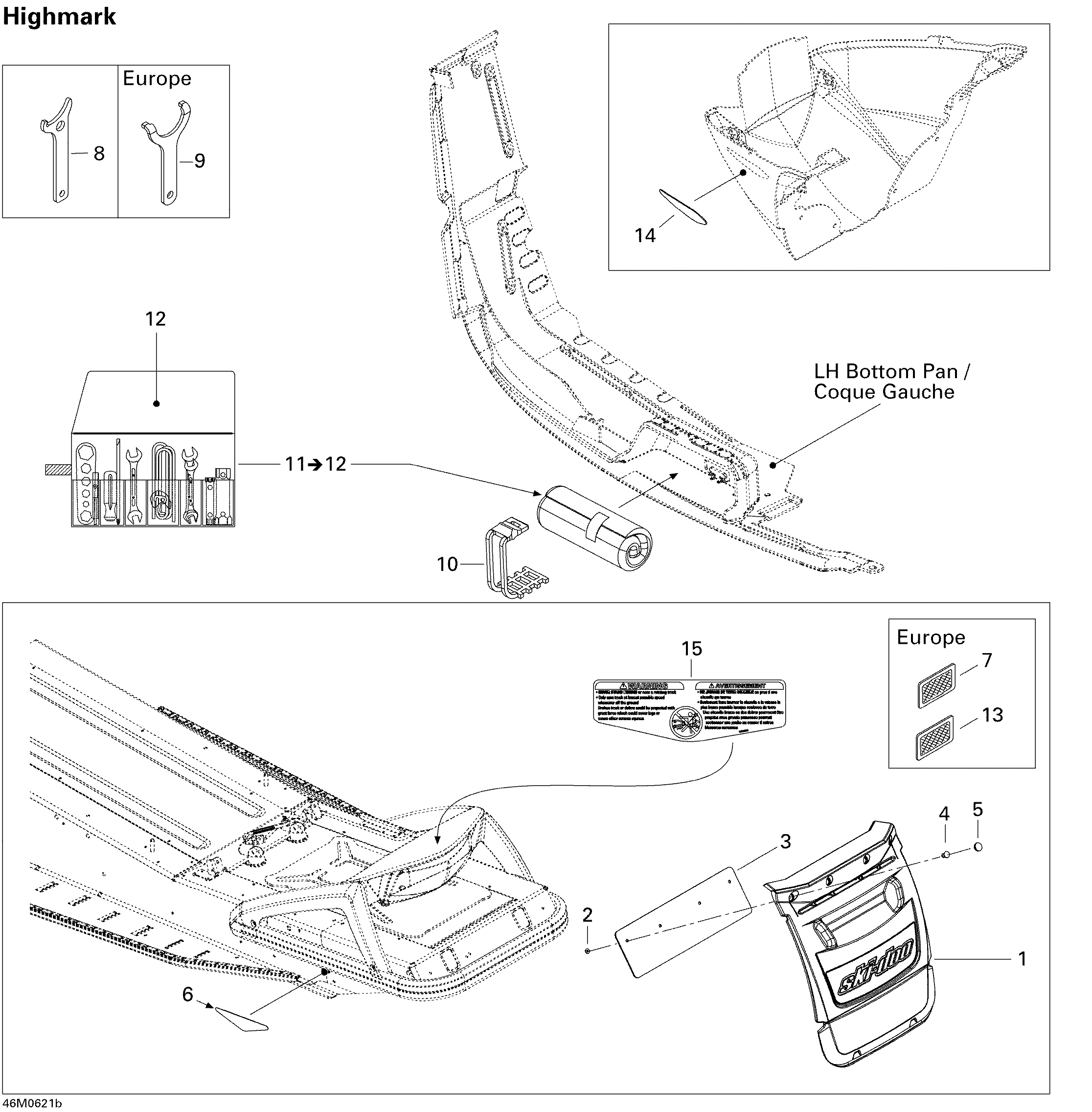

09- Utilities HM для BRP Ski-Doo Summit 1000 SDI, Highmark & Highmark X - 2006
-
№АртикулНазвание
-
1520000560 Snow GuardSnow Guard
-
2517225900 Flat WasherFlat Washer
-
3520000488 Snow Guard ReinforcementSnow Guard Reinforcement
-
4293150087 Pop Rivet 3/16''Pop Rivet 3/16''
-
5277000203 Cap (Black)Cap (Black)
-
6520000237 Rear Reflector, RedRear Reflector, Red
-
6520000311 Rear Reflector (Amber). EuropeRear Reflector (Amber). Europe
-
7520000271 Reflector Amber (Europe). EuropeReflector Amber (Europe). Europe
-
8529032900 Adjustment WrenchAdjustment Wrench
-
9529035582 Adjustment Wrench. EuropeAdjustment Wrench. Europe
-
10520000528 LatchLatch
-
11529035596 Tool Kit. Includes 11 to 12Tool Kit. Includes 11 to 12
-
12520000047 Tool BagTool Bag
-
13415037900 White Reflector, Europe. EuropeWhite Reflector, Europe. Europe
-
14520000468 LH Front ReflectorLH Front Reflector
-
14520000469 RH Front ReflectorRH Front Reflector
-
15516003034 Track Security Warning LabelTrack Security Warning Label
