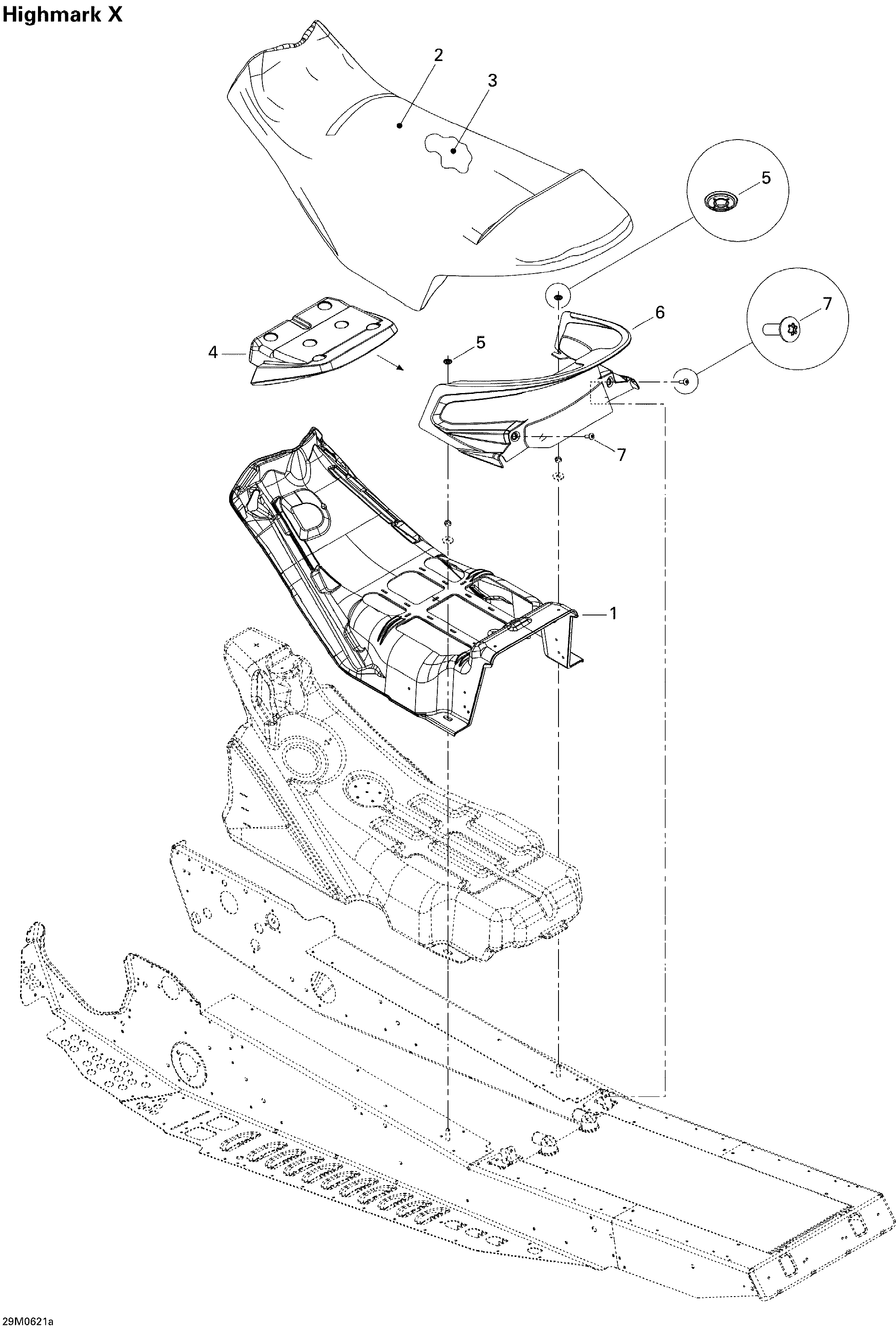

09- Seat HMX для BRP Ski-Doo Summit 1000 SDI, Highmark & Highmark X - 2006
-
№АртикулНазвание
-
1510004658 Seat BaseSeat Base
-
2510004659 Seat Cover. Black-BlackSeat Cover. Black-Black
-
3510004660 Seat FoamSeat Foam
-
2510004661 Seat Cover. Grey-RedSeat Cover. Grey-Red
-
4510004714 Support BlocSupport Bloc
-
5510004715 Push NutPush Nut
-
6510004656 Seat Cap. Grey-RedSeat Cap. Grey-Red
-
6510004657 Seat Cap. Black-BlackSeat Cap. Black-Black
-
7250000128 Torx Screw M6 X 20Torx Screw M6 X 20
