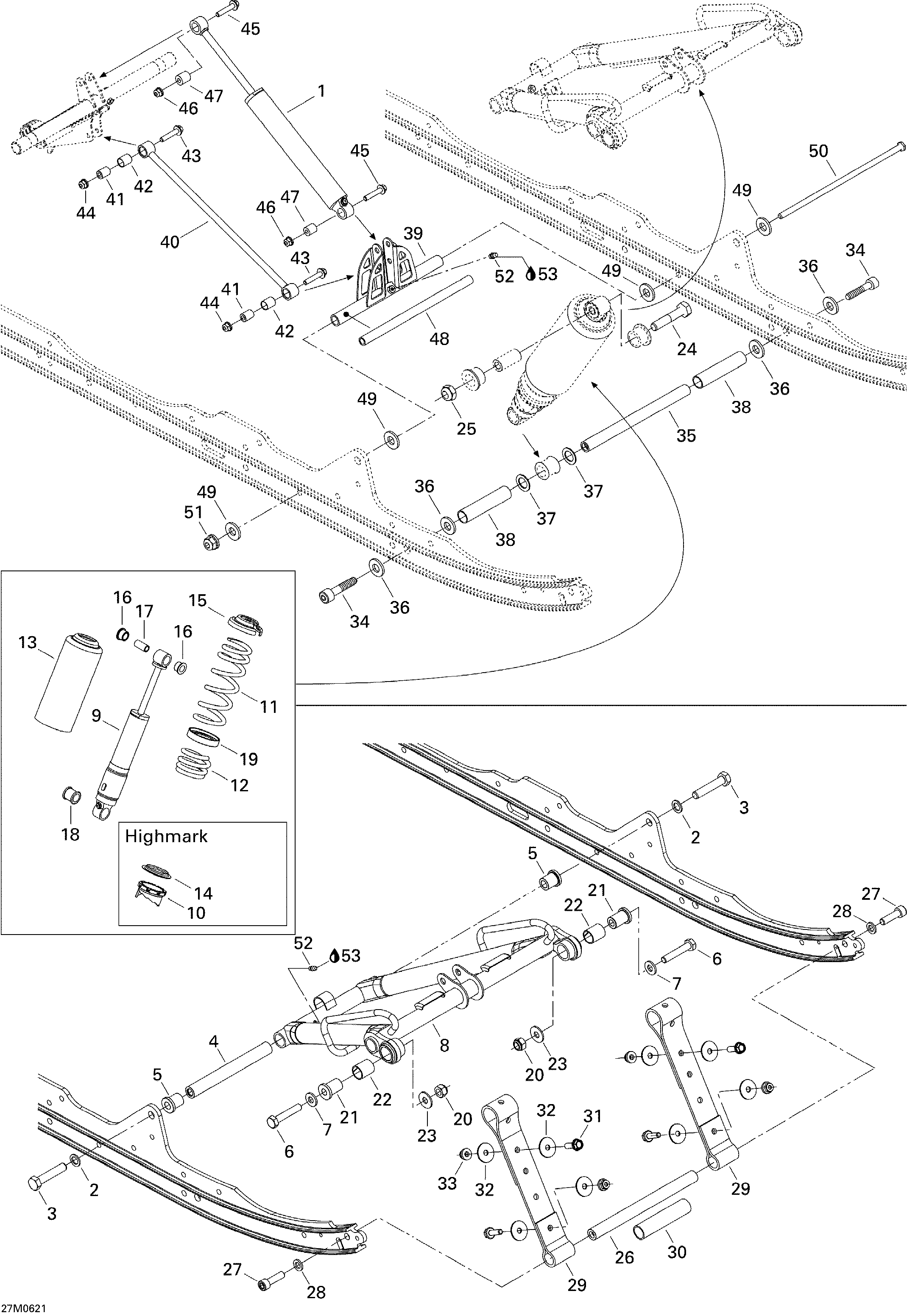

08- Front Arm для BRP Ski-Doo Summit 1000 SDI, Highmark & Highmark X - 2006
-
№АртикулНазвание
-
1503190989 Rear Shock. HighmarkRear Shock. Highmark
-
1503190990 Rear Shock. EuropeRear Shock. Europe
-
1503190990 Rear Shock. Highmark XRear Shock. Highmark X
-
2503189276 WasherWasher
-
3207226044 Hex Screw M12 X 60, Scotch GripHex Screw M12 X 60, Scotch Grip
-
4503189313 ShaftShaft
-
5503189323 CushionCushion
-
6207005544 Hex Screw M10 X 55Hex Screw M10 X 55
-
7732900049 WasherWasher
-
8503191142 Front ArmFront Arm
-
9503190662 Center Shock. Highmark XCenter Shock. Highmark X
-
9503190662 Center Shock. EuropeCenter Shock. Europe
-
9503190981 Center Shock. HighmarkCenter Shock. Highmark
-
10503183700 Cam 45°. HighmarkCam 45°. Highmark
-
11503190854 SpringSpring
-
12503190982 SpringSpring
-
13503188930 ProtectorProtector
-
14517184300 Spring Guide. HighmarkSpring Guide. Highmark
-
15503140600 Spring StopperSpring Stopper
-
16503189117 CushionCushion
-
17503189282 BushingBushing
-
18503189271 CushionCushion
-
19505071685 Spring SpacerSpring Spacer
-
20233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
21503190373 ExtensionExtension
-
22503190474 Extended BushingExtended Bushing
-
23506151251 WasherWasher
-
24207005044 Hex Screw M10 X 50Hex Screw M10 X 50
-
25232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
26503189562 AxleAxle
-
27205503544 Socket Head Screw M10 X 35, Scotch GripSocket Head Screw M10 X 35, Scotch Grip
-
28503189564 WasherWasher
-
29503190782 Stopper StrapStopper Strap
-
30503189265 SpacerSpacer
-
31207682544 Hex Flanged Screw M8 X 25Hex Flanged Screw M8 X 25
-
32224081301 Flat WasherFlat Washer
-
33233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
34205523544 Socket Head Screw M12 X 35, Scotch GripSocket Head Screw M12 X 35, Scotch Grip
-
35503189272 Center Shock ShaftCenter Shock Shaft
-
36503189276 WasherWasher
-
37503189273 WasherWasher
-
38503189274 SpacerSpacer
-
39503189545 Pivot Arm, BlackPivot Arm, Black
-
40503189547 Throttle RodThrottle Rod
-
41503189133 Rod AxleRod Axle
-
42503189625 CushionCushion
-
43207684044 Hex Flanged Screw M8 X 40Hex Flanged Screw M8 X 40
-
44250100025 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
45207684044 Hex Flanged Screw M8 X 40Hex Flanged Screw M8 X 40
-
46250100025 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
47414936000 CushionCushion
-
48503189156 Pivot Arm AxlePivot Arm Axle
-
49503189157 WasherWasher
-
50732601198 Long Bolt M8Long Bolt M8
-
51250100025 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
52408200700 Grease FittingGrease Fitting
-
53219700417 Synthetic Grease, 400 GSynthetic Grease, 400 G
