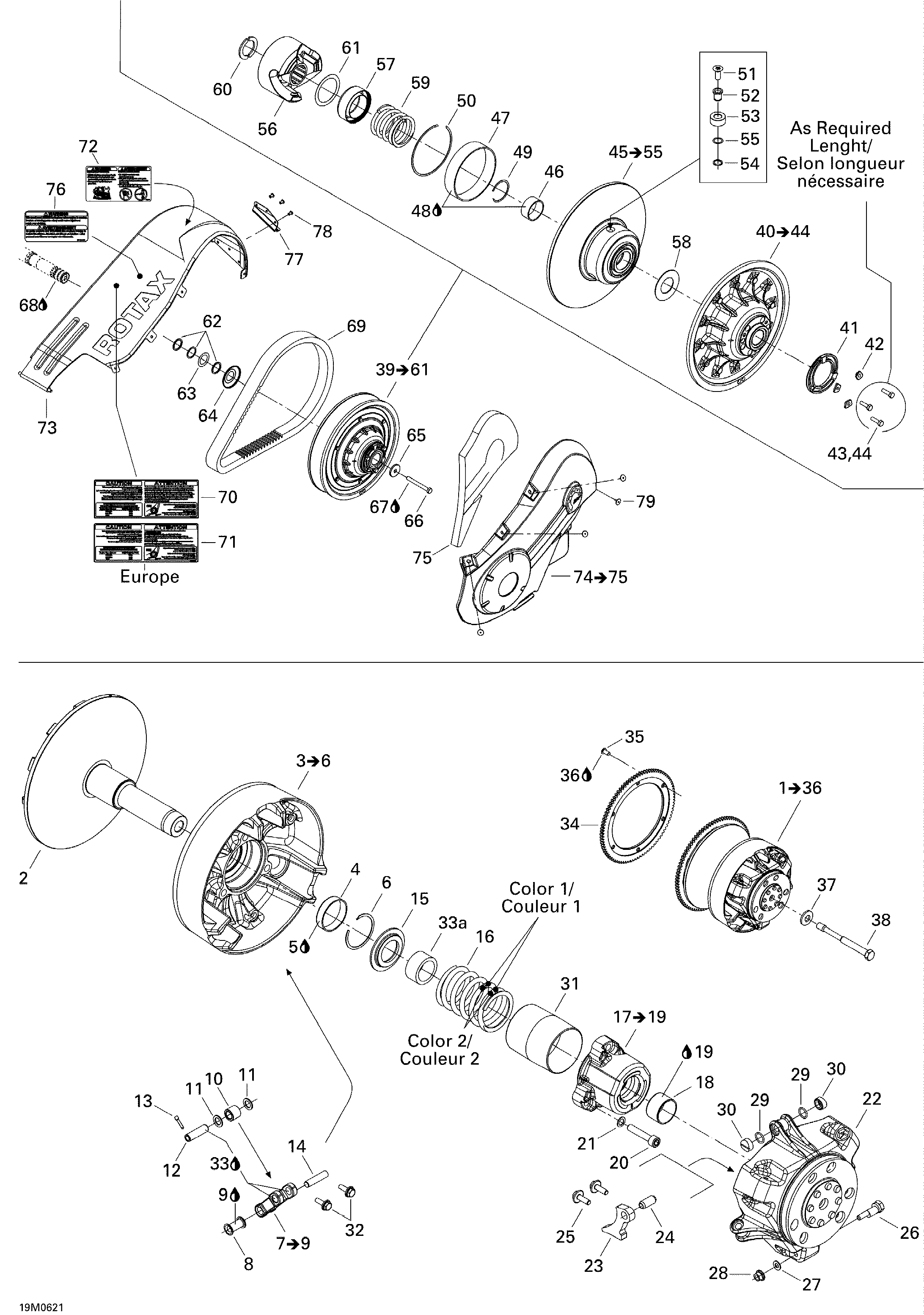

05- Pulley System для BRP Ski-Doo Summit 1000 SDI, Highmark & Highmark X - 2006
-
№АртикулНазвание
-
2417222711 Fixed FlangeFixed Flange
-
3417222646 Sliding Flange Ass'y. Includes 3 to 6Sliding Flange Ass'y. Includes 3 to 6
-
4417222758 BushingBushing
-
5413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
6293370037 CirclipCirclip
-
7417222812 Lever Ass'y. Includes 7 to 9Lever Ass'y. Includes 7 to 9
-
8417222633 BushingBushing
-
9413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
10417222762 RollerRoller
-
11417004302 Stopper WasherStopper Washer
-
12417004309 PinPin
-
13417222813 Pin ScrewPin Screw
-
14417009202 Lever AxleLever Axle
-
15417222312 Spring SeatSpring Seat
-
16414991400 Spring, Rose/whiteSpring, Rose/white
-
16417222371 Spring, Green/white. EuropeSpring, Green/white. Europe
-
17417222759 Spring Cover Ass'y. Includes 17 to 19Spring Cover Ass'y. Includes 17 to 19
-
18417009204 BushingBushing
-
19413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
20205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
21250200009 Lock Washer 8 mmLock Washer 8 mm
-
22417222634 Governor CupGovernor Cup
-
23417222799 Ramp 433Ramp 433
-
23417222444 Ramp 600. EuropeRamp 600. Europe
-
24250400009 Rolled Pin 10 X 22Rolled Pin 10 X 22
-
25250000059 Hex Flanged Scew M6 X 18Hex Flanged Scew M6 X 18
-
26417222674 Calibration ScrewCalibration Screw
-
27417005600 WasherWasher
-
28233061414 Hex Flanged Nut M6Hex Flanged Nut M6
-
29732401030 O-RingO-Ring
-
30417222362 Slider ShoeSlider Shoe
-
31417009205 GuardGuard
-
32250000182 Serrated Hex Flanged Screw M6 X 16Serrated Hex Flanged Screw M6 X 16
-
33413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
33a417222826 BushingBushing
-
34417222830 Ring GearRing Gear
-
35250000243 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
36293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
37250200006 Conical Spring Washer 14 mmConical Spring Washer 14 mm
-
38417300296 Drive Pulley BoltDrive Pulley Bolt
-
40417126807 Fixed Flange Ass'y. Includes 40 to 44Fixed Flange Ass'y. Includes 40 to 44
-
41415005800 Adjustment RingAdjustment Ring
-
42415005900 Adjustment ShimAdjustment Shim
-
43207162544 Hex Screw M6 X 25Hex Screw M6 X 25
-
44207162244 Hex Screw M6 X 22Hex Screw M6 X 22
-
45417127014 Sliding Flange Ass'ySliding Flange Ass'y
-
46417126901 BushingBushing
-
47417126902 BushingBushing
-
48413408300 Loctite, Black Max, 3 mlLoctite, Black Max, 3 ml
-
49371911200 CirclipCirclip
-
50417126878 CirclipCirclip
-
51235382046 Torx Screw M8 X 20, Scotch GripTorx Screw M8 X 20, Scotch Grip
-
52417127015 StudStud
-
53417126892 RollerRoller
-
54417126823 V-circlipV-circlip
-
55417126797 WasherWasher
-
56417126937 Cam Ass'yCam Ass'y
-
57417126381 GuardGuard
-
58504099600 Stopper WasherStopper Washer
-
59414978300 Release Spring, PurpleRelease Spring, Purple
-
60417126734 Half KeyHalf Key
-
61417126322 Swivel AbutmentSwivel Abutment
-
62417300252 SpacerSpacer
-
62417300265 SpacerSpacer
-
63504112000 ShimShim
-
64417300238 ProtectorProtector
-
65517302322 Strength WasherStrength Washer
-
66207087544 Hex Screw M8 X 75Hex Screw M8 X 75
-
67293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
68293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
69417300189 Drive BeltDrive Belt
-
70516002737 Caution Label, AltitudeCaution Label, Altitude
-
71516002738 Caution Label, Altitude. EuropeCaution Label, Altitude. Europe
-
72516002674 Emergency Starting LabelEmergency Starting Label
-
73417300256 Belt GuardBelt Guard
-
74417300301 Side Protector Ass'y. Includes 74 to 75Side Protector Ass'y. Includes 74 to 75
-
75417300246 FoamFoam
-
76516002670 Security Label, Belt GuardSecurity Label, Belt Guard
-
77417300216 Belt Guard BracketBelt Guard Bracket
-
78390909200 Avex RivetAvex Rivet
-
79293150103 Pop Rivet 3/16''Pop Rivet 3/16''
