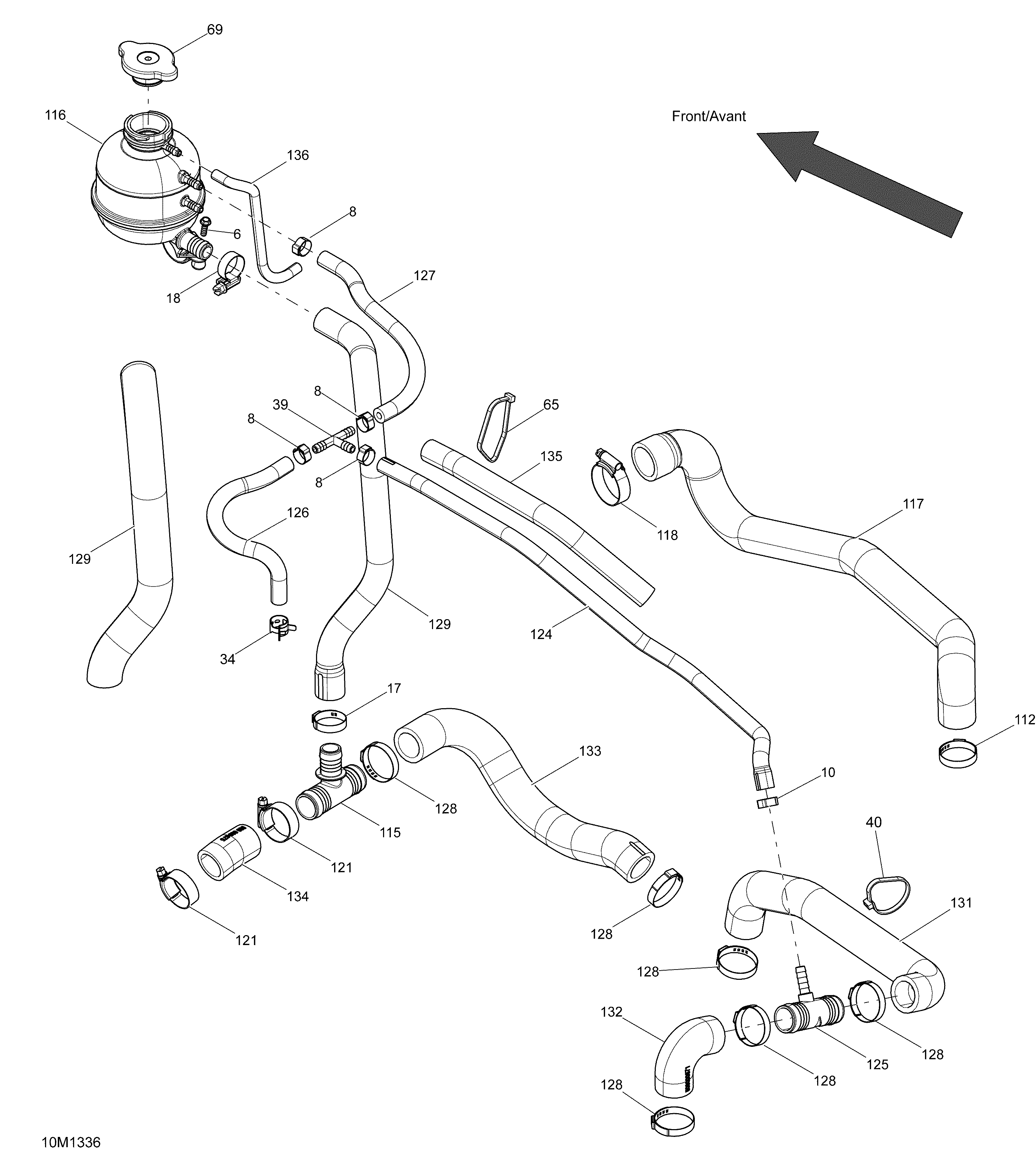

01- Cooling System для BRP Ski-Doo MXZ X 600RS XP - 2013
-
№АртикулНазвание
-
6241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
8293650046 Oetiker ClampOetiker Clamp
-
10293650047 Crimp ClampCrimp Clamp
-
17293650099 Oetiker Gear ClampOetiker Gear Clamp
-
18293650124 Norma Gear ClampNorma Gear Clamp
-
34293650210 Spring ClampSpring Clamp
-
39293710024 T-FittingT-Fitting
-
40414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
65414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
69509000180 Pressure CapPressure Cap
-
112509000181 Oetiker Gear ClampOetiker Gear Clamp
-
115509000372 T-FittingT-Fitting
-
116509000421 Coolant TankCoolant Tank
-
117509000431 Engine Outlet HoseEngine Outlet Hose
-
118509000443 Aba Gear ClampAba Gear Clamp
-
121509000443 Aba Gear ClampAba Gear Clamp
-
124509000503 Breather HoseBreather Hose
-
125509000510 T-FittingT-Fitting
-
126509000518 Bleeder HoseBleeder Hose
-
127509000519 Bleeder HoseBleeder Hose
-
128509000529 Oetiker Gear ClampOetiker Gear Clamp
-
129509000551 Filling HoseFilling Hose
-
131509000670 Radiator HoseRadiator Hose
-
132509000671 Radiator HoseRadiator Hose
-
133509000673 Radiator HoseRadiator Hose
-
134509000675 Radiator HoseRadiator Hose
-
135415080000 Tubing 16 mmTubing 16 mm
-
136415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
