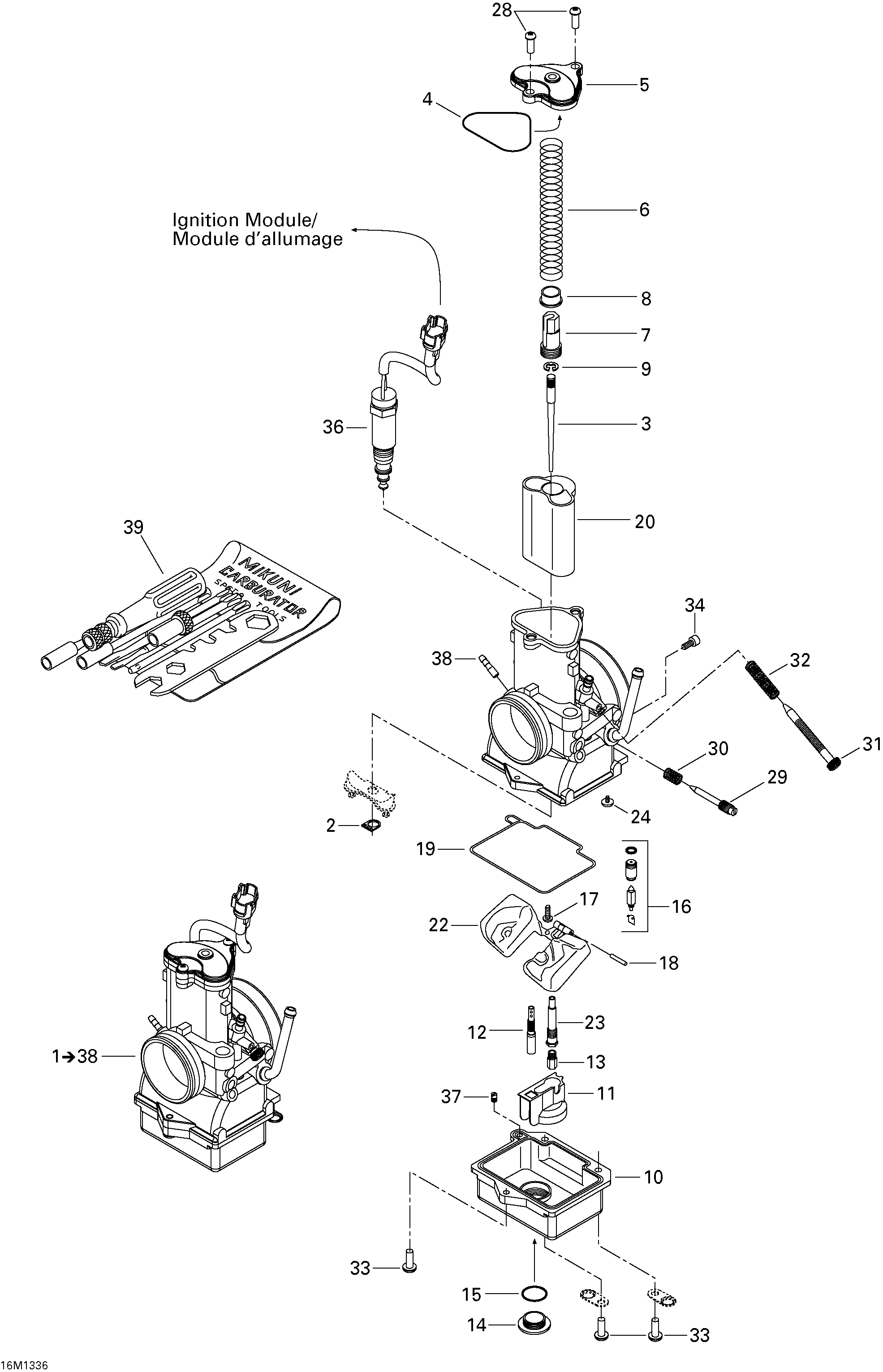

02- Carburetor для BRP Ski-Doo MXZ X 600RS XP - 2013
-
№АртикулНазвание
-
1403138816 Carburator, TMX38-73. Includes 1 to 38Carburator, TMX38-73. Includes 1 to 38
-
2404161865 PackingPacking
-
3404162117 NeedleNeedle
-
4404162111 O-RingO-Ring
-
5404162110 Top CapTop Cap
-
6404162109 SpringSpring
-
7404162108 Holder GuideHolder Guide
-
8404161863 RingRing
-
9404152200 E-RingE-Ring
-
10404162121 Float BodyFloat Body
-
11404161855 HolderHolder
-
12404162134 Pilot Jet 55Pilot Jet 55
-
13404162139 Main Jet 290Main Jet 290
-
14404107400 Drain Plug ScrewDrain Plug Screw
-
15404107300 O-RingO-Ring
-
16404161868 Needle Valve 1.5Needle Valve 1.5
-
17404138600 ScrewScrew
-
18404161860 PinPin
-
19404161993 O-RingO-Ring
-
20404162106 Piston Valve 4.0Piston Valve 4.0
-
22404161859 FloatFloat
-
23486400012 Jet NeedleJet Needle
-
24404161861 ScrewScrew
-
28404138700 ScrewScrew
-
29404161866 AdjusterAdjuster
-
30404132400 SpringSpring
-
31404161850 AdjusterAdjuster
-
32404161849 SpringSpring
-
33404161848 ScrewScrew
-
34404162100 ScrewScrew
-
36404161998 SelenoidSelenoid
-
37404162098 Power Jet 160Power Jet 160
-
38404162123 NippleNipple
-
39404112000 Tool KitTool Kit
