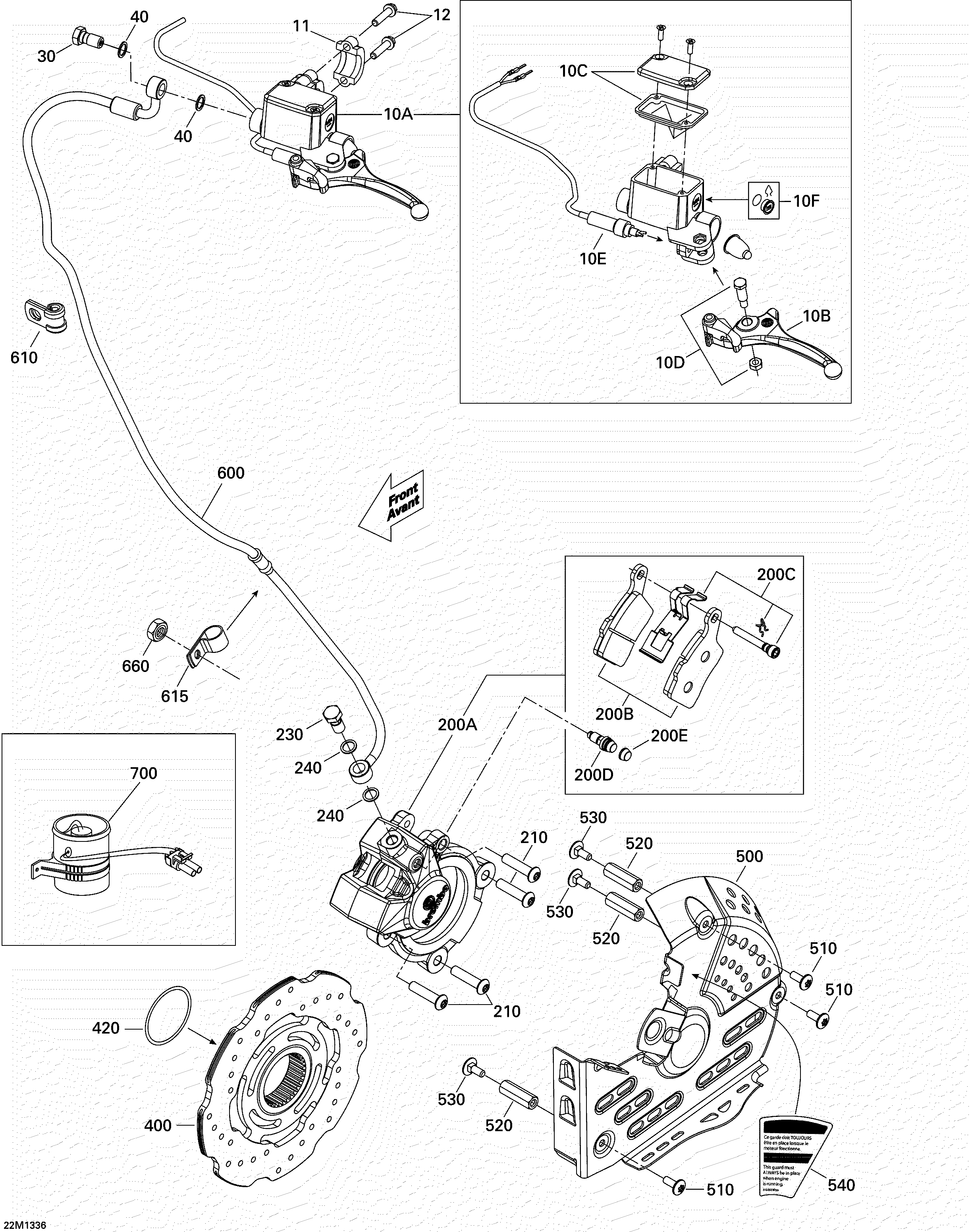

06- Hydraulic Brakes для BRP Ski-Doo MXZ X 600RS XP - 2013
-
№АртикулНазвание
-
10a507032511 Cylinder MAster Ass'y. Includes 10A to 10FCylinder MAster Ass'y. Includes 10A to 10F
-
10b507032428 LeverLever
-
10c415029900 CapCap
-
10d415030000 Pin Ass'yPin Ass'y
-
10e507032526 MicroswitchMicroswitch
-
10f414990600 WindowWindow
-
11507032477 Clamp And Screw KitClamp And Screw Kit
-
12250000447 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
30507032539 Banjo BoltBanjo Bolt
-
40705600310 Copper WasherCopper Washer
-
200a507032501 Brake Caliper Ass'y. Includes 200A to 200EBrake Caliper Ass'y. Includes 200A to 200E
-
200b507032489 Brake Pads KitBrake Pads Kit
-
200c507032474 Kit, Pin, Clip, SpringKit, Pin, Clip, Spring
-
200d507032475 BleederBleeder
-
200e414989700 BootBoot
-
210250000301 Torx Screw M8 X 35, Scotch GripTorx Screw M8 X 35, Scotch Grip
-
230507032539 Banjo BoltBanjo Bolt
-
240705600310 Copper WasherCopper Washer
-
400507032513 DiskDisk
-
420293300134 O-RingO-Ring
-
500507032531 Disk Protector, AluminumDisk Protector, Aluminum
-
510250000223 Torx Screw M6 X 16Torx Screw M6 X 16
-
520507032533 Threaded TubeThreaded Tube
-
530207761644 Carriage Bolt M6 X 16Carriage Bolt M6 X 16
-
540516005525 Warning DecalWarning Decal
-
600507032528 HoseHose
-
610705600459 ClampClamp
-
615518321570 Open ClampOpen Clamp
-
660232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
700204470108 Fan Ass'yFan Ass'y
