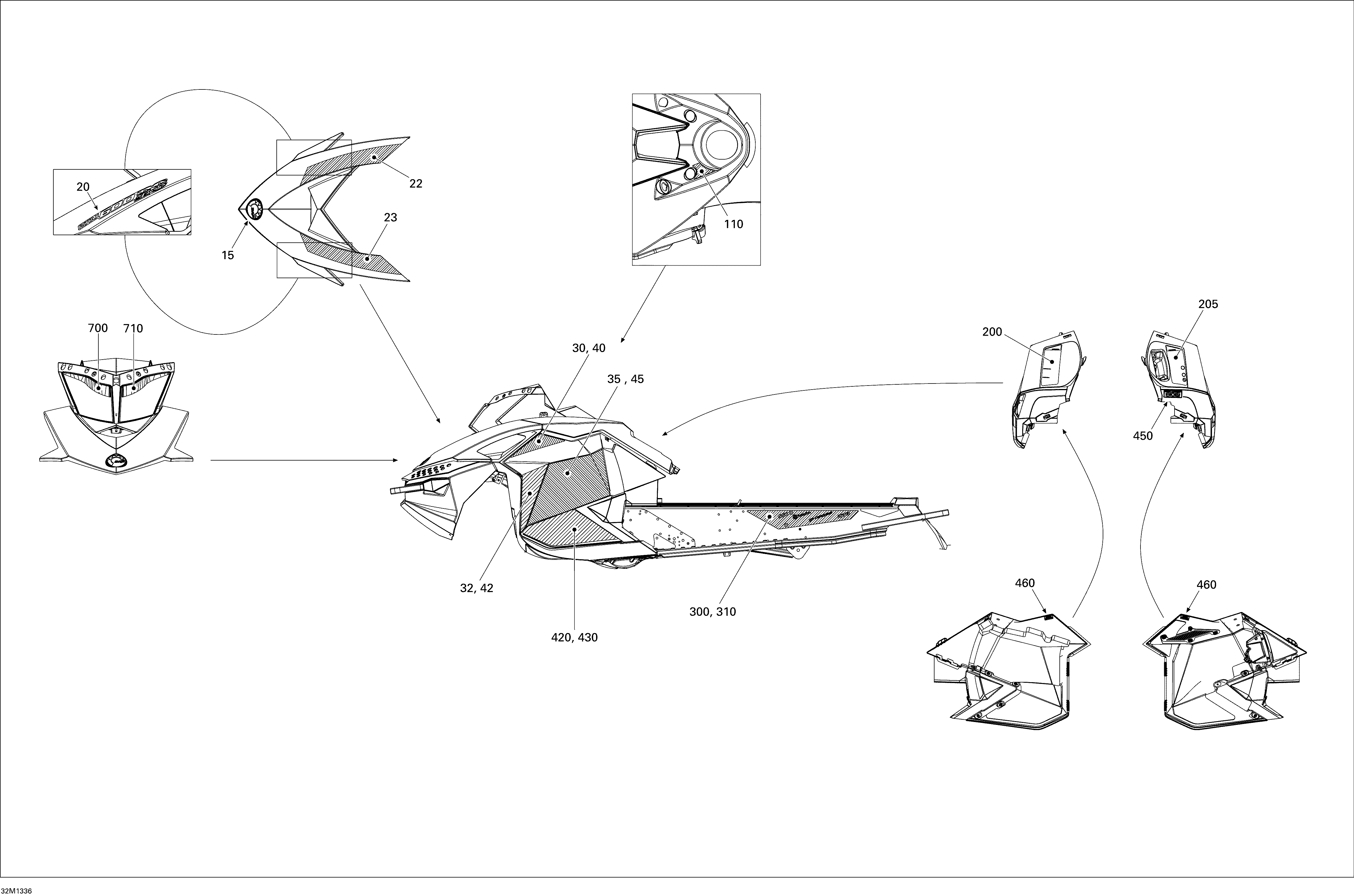

09- Decals для BRP Ski-Doo MXZ X 600RS XP - 2013
-
№АртикулНазвание
-
15219903609 BRP Logo, 68 mmBRP Logo, 68 mm
-
20516005605 Decal, Rotax600RSDecal, Rotax600RS
-
22516005238 RH Hood DecalRH Hood Decal
-
23516005237 LH Hood DecalLH Hood Decal
-
30516005242 RH Upper Side DecalRH Upper Side Decal
-
32516005244 RH Front Side DecalRH Front Side Decal
-
35516005608 RH Side DecalRH Side Decal
-
40516005241 LH Upper Side DecalLH Upper Side Decal
-
42516005243 LH Front Side DecalLH Front Side Decal
-
45516005607 LH Side DecalLH Side Decal
-
110516003786 Decal, Thumb/Handle HeatingDecal, Thumb/Handle Heating
-
200516005227 Warning Decal, SecurityWarning Decal, Security
-
205516005228 Warning Decal, SecurityWarning Decal, Security
-
300516005971 RH Tunnel DecalRH Tunnel Decal
-
310516005970 LH Tunnel DecalLH Tunnel Decal
-
420516005252 RH Lower DecalRH Lower Decal
-
430516005251 LH Lower DecalLH Lower Decal
-
450516005226 Warning Decal, Pictogram. EuropeWarning Decal, Pictogram. Europe
-
460516005280 Warning Decal (Engl.)Warning Decal (Engl.)
-
700516004402 RH Headlight DecalRH Headlight Decal
-
710516004401 LH Headlight DecalLH Headlight Decal
