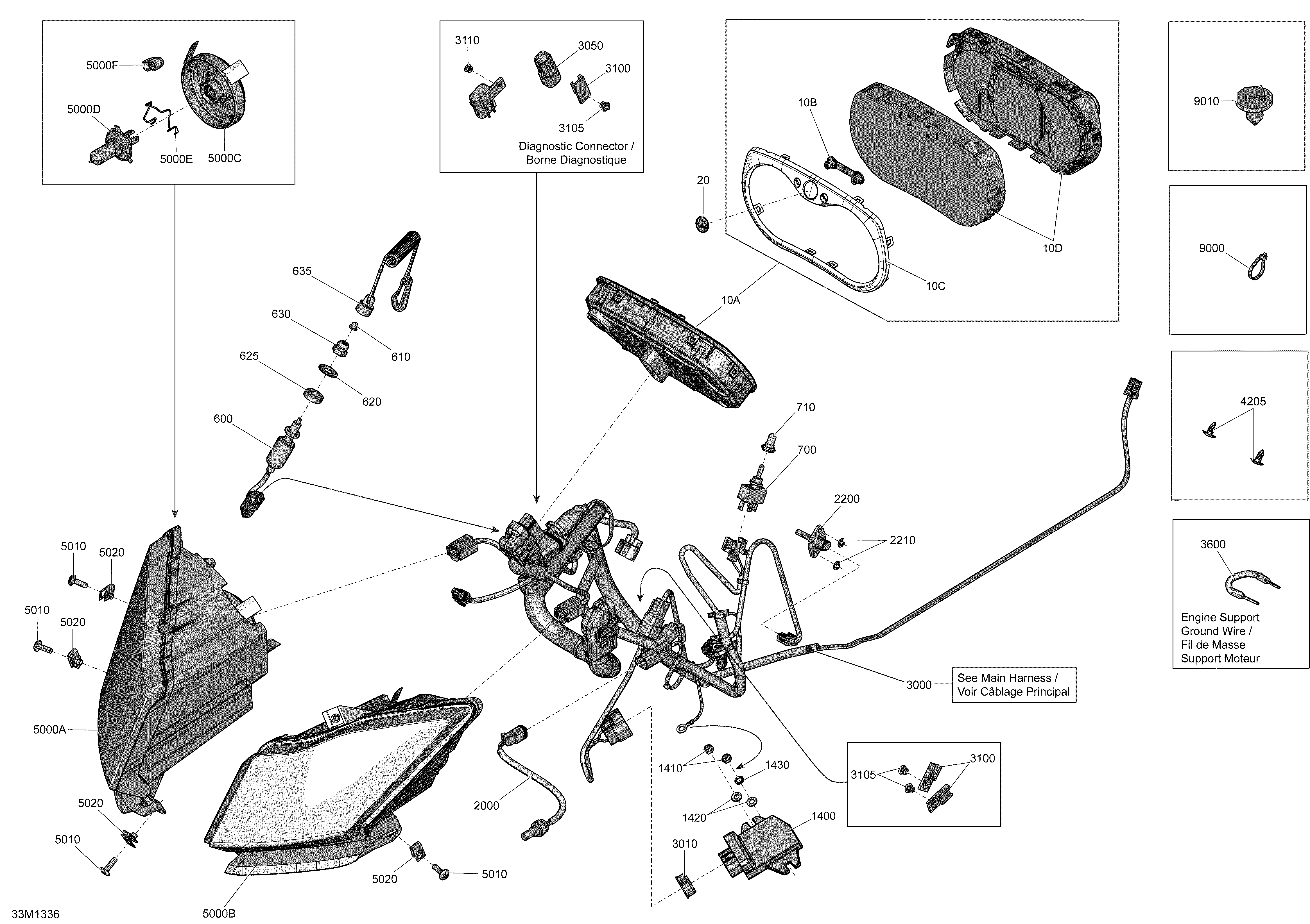

10- Electrical System для BRP Ski-Doo MXZ X 600RS XP - 2013
-
№АртикулНазвание
-
10a515177465 Speedometer. Includes 10A to 10DSpeedometer. Includes 10A to 10D
-
10b415129355 Speedometer ButtonSpeedometer Button
-
10c415129348 Gauge RingGauge Ring
-
10d415129349 LensLens
-
20219902677 Logo BRP, 20 mmLogo BRP, 20 mm
-
600515175653 Brake SwitchBrake Switch
-
610570151100 Plunger CapPlunger Cap
-
620250200032 WasherWasher
-
625510004418 WasherWasher
-
630515145900 Switch NutSwitch Nut
-
635515176462 Cap Ass'yCap Ass'y
-
700410107300 Switch (Heating Grip)Switch (Heating Grip)
-
710515175281 Switch CoverSwitch Cover
-
1400515176364 Voltage RegulatorVoltage Regulator
-
1410232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
1420234061410 Flat Washer 6 mmFlat Washer 6 mm
-
1430234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
2000515177471 Temperature SensorTemperature Sensor
-
2200515176366 Air Temperature SensorAir Temperature Sensor
-
2210389804300 Push NutPush Nut
-
3000515177111 Main HarnessMain Harness
-
3010515176681 LockLock
-
3050710003006 HousingHousing
-
3100270000141 ClipClip
-
3105293150037 Avdel Rivet 3/16''Avdel Rivet 3/16''
-
3110390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
3600515177289 Fil de MasseFil de Masse
-
4205414644300 DartDart
-
5000a517304194 RH Headlamp Ass'y. Includes 5000A to 5000FRH Headlamp Ass'y. Includes 5000A to 5000F
-
5000b517304195 LH Headlamp Ass'y. Includes 5000B to 5000FLH Headlamp Ass'y. Includes 5000B to 5000F
-
5000c515176499 CoverCover
-
5000d515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
5000e515176493 Bulb HolderBulb Holder
-
5000f515176498 CapCap
-
5010250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
5020250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
9000293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
9000293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
9000414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
9000293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
9010293730040 Mount DartMount Dart
