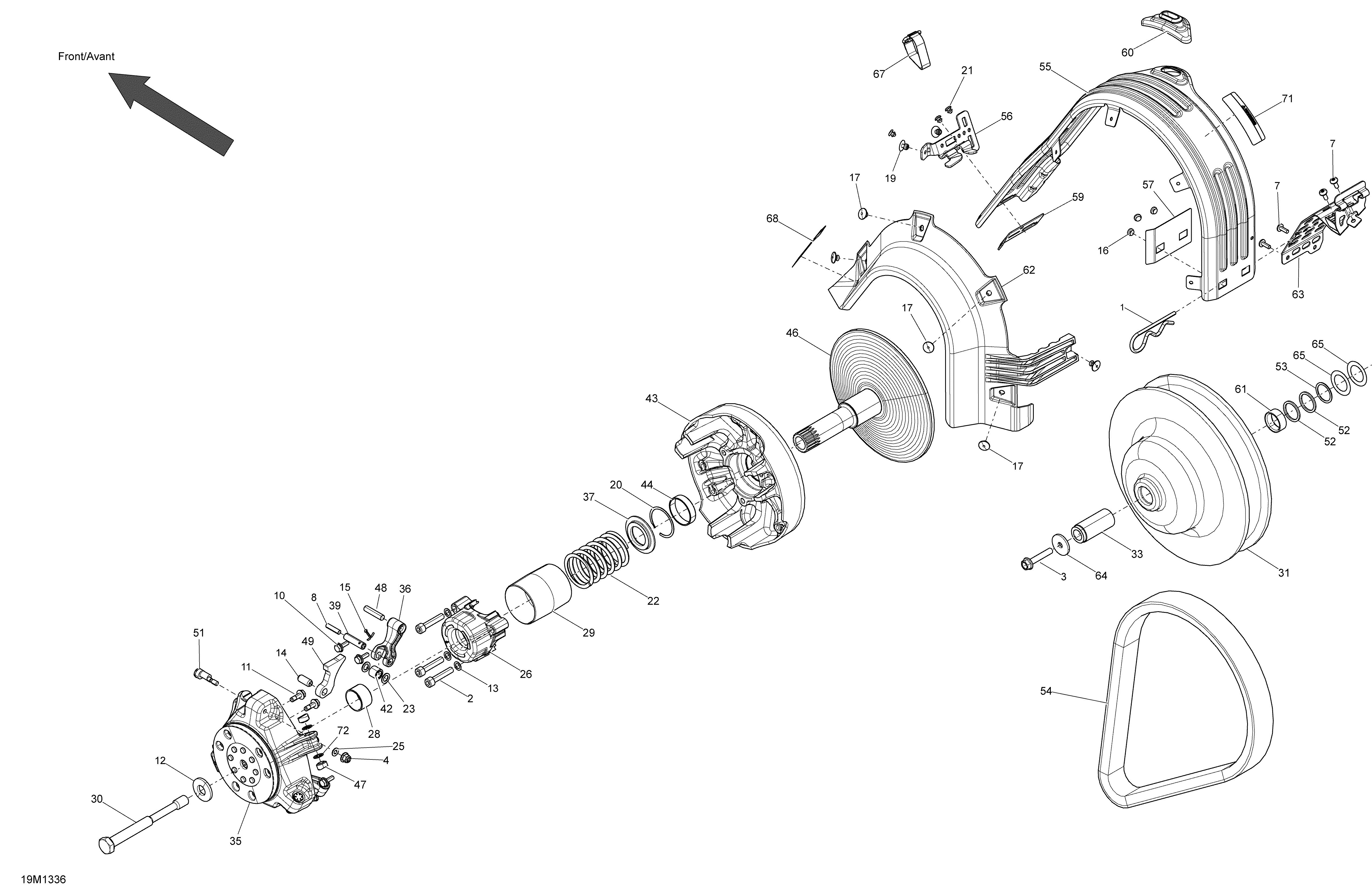

05- Pulley System для BRP Ski-Doo MXZ X 600RS XP - 2013
-
№АртикулНазвание
-
1114045200 Hair PinHair Pin
-
2205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
3207584544 Hex. Flanged Screw M8 X 45, Scotch GripHex. Flanged Screw M8 X 45, Scotch Grip
-
4233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
7250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
8250000408 Screw Socket Set DIN.913 S.GripScrew Socket Set DIN.913 S.Grip
-
10250000416 Serrated Hex. Flange Bolt M6Serrated Hex. Flange Bolt M6
-
11250000418 Flanged Hex. Screw M6 X 18, Scotch GripFlanged Hex. Screw M6 X 18, Scotch Grip
-
12250200006 Spring Washer 14 mmSpring Washer 14 mm
-
13250200009 Lock Washer 8 mmLock Washer 8 mm
-
14250400050 Spring Pin M10 X 22Spring Pin M10 X 22
-
15250400060 Cotter PinCotter Pin
-
16293150091 Henrob RivetHenrob Rivet
-
17293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
19293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
20293370037 CirclipCirclip
-
21390909200 Avex RivetAvex Rivet
-
22414689800 Clutch SpringClutch Spring
-
22417223610 Racing SpringRacing Spring
-
23417004302 Stopper WasherStopper Washer
-
25417005600 WasherWasher
-
26417007500 Spring Cover Ass'ySpring Cover Ass'y
-
28417009204 BushingBushing
-
29417009205 GuardGuard
-
30417120000 Drive Pulley BoltDrive Pulley Bolt
-
31417127291 Driven Pulley (Rapid Reaction)Driven Pulley (Rapid Reaction)
-
33417127300 BushingBushing
-
35417223366 Governor Cup Ass'yGovernor Cup Ass'y
-
36417222671 LeverLever
-
37417222312 Spring SeatSpring Seat
-
39417222595 Threaded Pin, M6Threaded Pin, M6
-
42417222947 RollerRoller
-
43417222971 Sliding Flange Ass'ySliding Flange Ass'y
-
44417222758 BushingBushing
-
46417223012 Fixed Flange Ass'yFixed Flange Ass'y
-
47417223021 Slider ShoeSlider Shoe
-
48417223164 Lever AxleLever Axle
-
49417223281 Ramp 443Ramp 443
-
51417223501 Calibration ScrewCalibration Screw
-
52417300252 SpacerSpacer
-
53417300265 SpacerSpacer
-
54417300425 Drive BeltDrive Belt
-
55860200362 Belt Guard Ass'y KitBelt Guard Ass'y Kit
-
56417300360 Front Belt Guard BracketFront Belt Guard Bracket
-
57417300372 PlatePlate
-
59417300380 ReinforcementReinforcement
-
60417300381 GuideGuide
-
61417300399 SpacerSpacer
-
62417300431 Lateral Protector Ass'yLateral Protector Ass'y
-
63417300448 Belt Guard BracketBelt Guard Bracket
-
64503183100 WasherWasher
-
65504112000 ShimShim
-
67508000599 Velcro StripVelcro Strip
-
68516005503 Decal, EnglishDecal, English
-
71516005509 Safety Belt Guard DecalSafety Belt Guard Decal
-
72732401030 O-RingO-Ring
