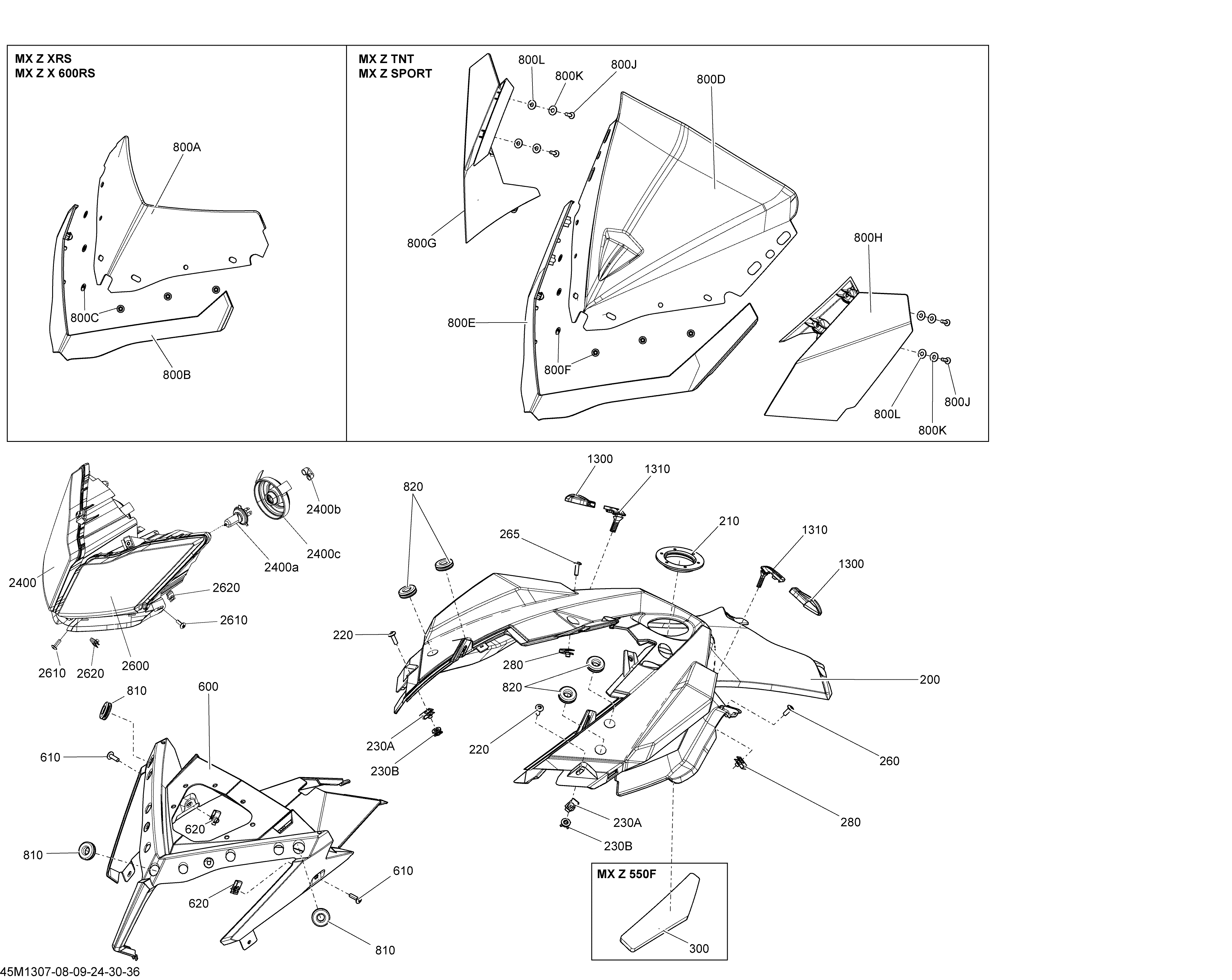

09- Windshield And Console для BRP Ski-Doo MXZ X 600RS XP - 2013
-
№АртикулНазвание
-
200517305224 ConsoleConsole
-
210517304518 Console NutConsole Nut
-
220250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
230a250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
260250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
265250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
280250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
600517304940 Gauge SupportGauge Support
-
610250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
620250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
800a517304226 Low Windshield Ass'y (140). Includes 800A to 800CLow Windshield Ass'y (140). Includes 800A to 800C
-
800b517303757 Windshield SupportWindshield Support
-
800c732610072 Push NutPush Nut
-
810517303756 GrommetGrommet
-
1300860200239 Black Latch Kit. Includes 1300A to 1300BBlack Latch Kit. Includes 1300A to 1300B
-
1310517303981 Panel LatchPanel Latch
-
2400517304194 RH Headlamp Ass'yRH Headlamp Ass'y
-
2400a515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
2400b515176498 CapCap
-
2400c515176499 CoverCover
-
2600517304195 LH Headlamp Ass'yLH Headlamp Ass'y
-
2610250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
2620250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
