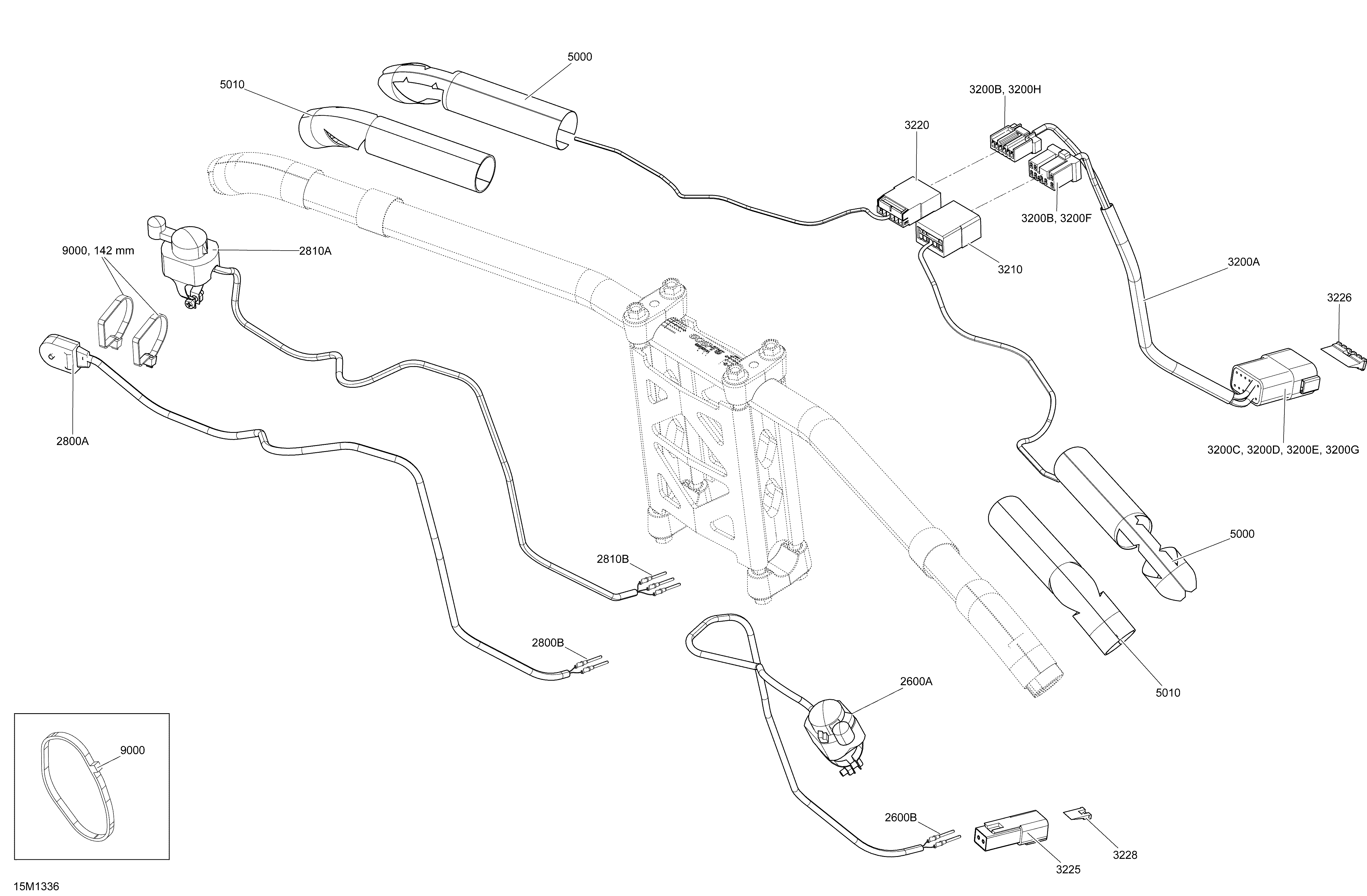

10- Steering Wiring Harness для BRP Ski-Doo MXZ X 600RS XP - 2013
-
№АртикулНазвание
-
2600A515177454 Kill Switch. Includes 2600A to 2600BKill Switch. Includes 2600A to 2600B
-
2600B515175768 Male TerminalMale Terminal
-
2800A515176631 Switch. Includes 2800A to 2800BSwitch. Includes 2800A to 2800B
-
2800B515175768 Male TerminalMale Terminal
-
2810A515177434 Dimmer Switch. Includes 2810A to 2810BDimmer Switch. Includes 2810A to 2810B
-
2810B515175768 Male TerminalMale Terminal
-
3200a515176633 Steering Harness. Includes 3200A to 3200HSteering Harness. Includes 3200A to 3200H
-
3200b515175231 Female TerminalFemale Terminal
-
3200C278000631 Male TerminalMale Terminal
-
3200D409015600 Male Lock, 12 CircuitsMale Lock, 12 Circuits
-
3200E293000052 Sealing CapSealing Cap
-
3200F515175543 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
3200G515175669 Male HousingMale Housing
-
3200H515175819 Female Terminal Housing, 8 CircuitsFemale Terminal Housing, 8 Circuits
-
3210515175817 Male Terminal Housing, 8 CircuitsMale Terminal Housing, 8 Circuits
-
3220515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
3225515175665 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
3226409015600 Male Lock, 12 CircuitsMale Lock, 12 Circuits
-
3228409207500 Male Lock, 2 CircuitsMale Lock, 2 Circuits
-
5000506152578 Heating Element 20 WATTHeating Element 20 WATT
-
5010506152611 InsulantInsulant
-
9000293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
9000293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
9000414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
9000293750008 Tie-Rap 350 mmTie-Rap 350 mm
