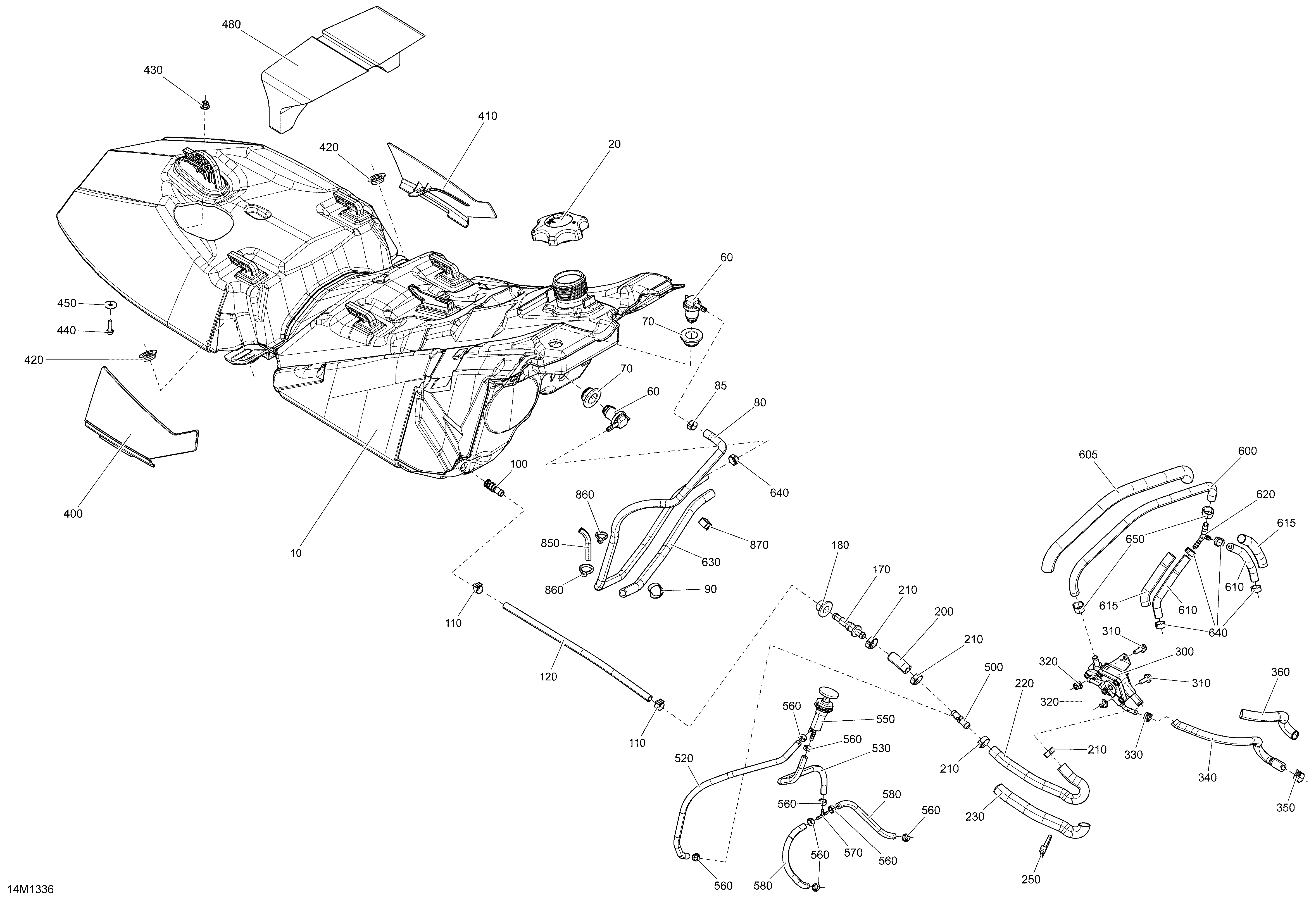

02- Fuel System для BRP Ski-Doo MXZ X 600RS XP - 2013
-
№АртикулНазвание
-
10513033697 Fuel TankFuel Tank
-
20513033103 Fuel Tank CapFuel Tank Cap
-
60513033517 Male ConnectorMale Connector
-
70513033596 GrommetGrommet
-
80513033565 HoseHose
-
85293650025 Oetiker Gear ClampOetiker Gear Clamp
-
90414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
100414872100 Fuel FilterFuel Filter
-
110513033010 Norma Spring ClampNorma Spring Clamp
-
120513033332 HoseHose
-
170414872700 Male ConnectorMale Connector
-
180513033435 GrommetGrommet
-
200513033444 HoseHose
-
210293650053 Crimp ClampCrimp Clamp
-
220513033439 Formed HoseFormed Hose
-
230415080000 Tubing 16 mmTubing 16 mm
-
250414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
300513033669 Fuel PumpFuel Pump
-
310207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
320233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
330414415200 Universal Spring ClampUniversal Spring Clamp
-
340513033111 Formed HoseFormed Hose
-
350513033029 Universal Spring ClampUniversal Spring Clamp
-
360409901800 Tubing 13 mmTubing 13 mm
-
400513033418 RH CapRH Cap
-
410513033419 LH CapLH Cap
-
420513033326 Shoulder BushingShoulder Bushing
-
430233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
440207162044 Hex. Screw M6 X 20Hex. Screw M6 X 20
-
450224060201 Flat WasherFlat Washer
-
480513033528 FoamFoam
-
500415119300 T-FittingT-Fitting
-
520513033423 HoseHose
-
530513033423 HoseHose
-
550513033441 PrimerPrimer
-
560293650043 ClipClip
-
570414222400 T-FittingT-Fitting
-
580513033423 HoseHose
-
600415129492 HoseHose
-
605415080000 Tubing 16 mmTubing 16 mm
-
610513033565 HoseHose
-
615409901800 Tubing 13 mmTubing 13 mm
-
620513033672 Y ConnectorY Connector
-
630409901800 Tubing 13 mmTubing 13 mm
-
640293650025 Oetiker Gear ClampOetiker Gear Clamp
-
650293650125 Oetiker ClampOetiker Clamp
-
850414506600 TrimTrim
-
860293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
870414227300 ClipClip
