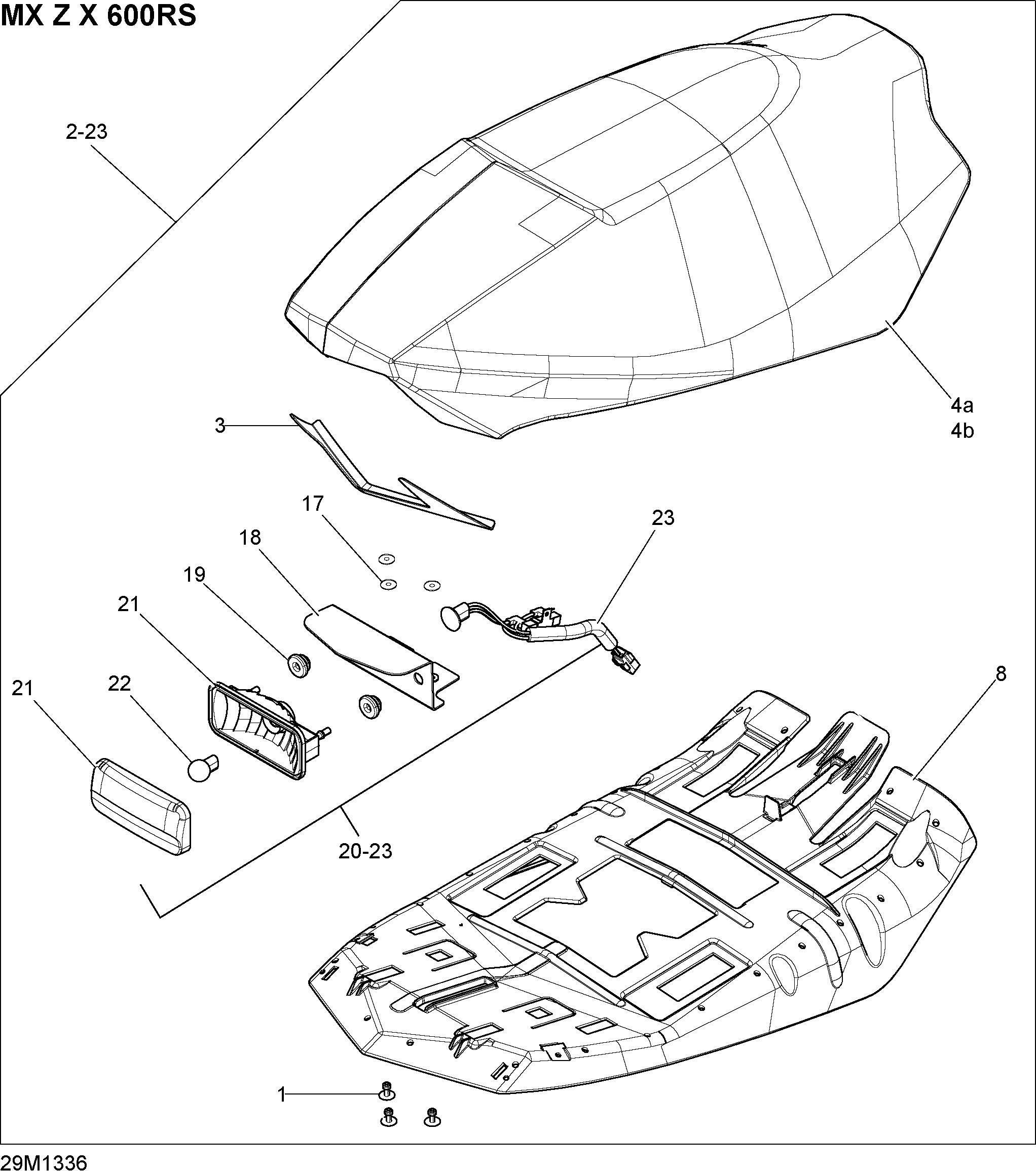

09- Seat для BRP Ski-Doo MXZ X 600RS XP - 2013
-
№АртикулНазвание
-
1293150104 Pop Rivet 3/16''. MX Z X 600RSPop Rivet 3/16''. MX Z X 600RS
-
4a510005122 Seat Foam. MX Z X 600RSSeat Foam. MX Z X 600RS
-
4b510005403 Seat Cover. MX Z X 600RSSeat Cover. MX Z X 600RS
-
8510005407 Seat Base. MX Z X 600RSSeat Base. MX Z X 600RS
-
17517297900 Flat Washer. MX Z X 600RSFlat Washer. MX Z X 600RS
-
18520000890 Support. MX Z X 600RSSupport. MX Z X 600RS
-
19705003666 Rubber Grommet. MX Z X 600RSRubber Grommet. MX Z X 600RS
-
20511000507 Rear Light Ass'y. MX Z X 600RS, Includes 20 to 23Rear Light Ass'y. MX Z X 600RS, Includes 20 to 23
-
21710000652 Rear Lens Box. MX Z X 600RSRear Lens Box. MX Z X 600RS
-
22710000653 Bulb. MX Z X 600RSBulb. MX Z X 600RS
-
23511000508 Wiring Harness. MX Z X 600RSWiring Harness. MX Z X 600RS
