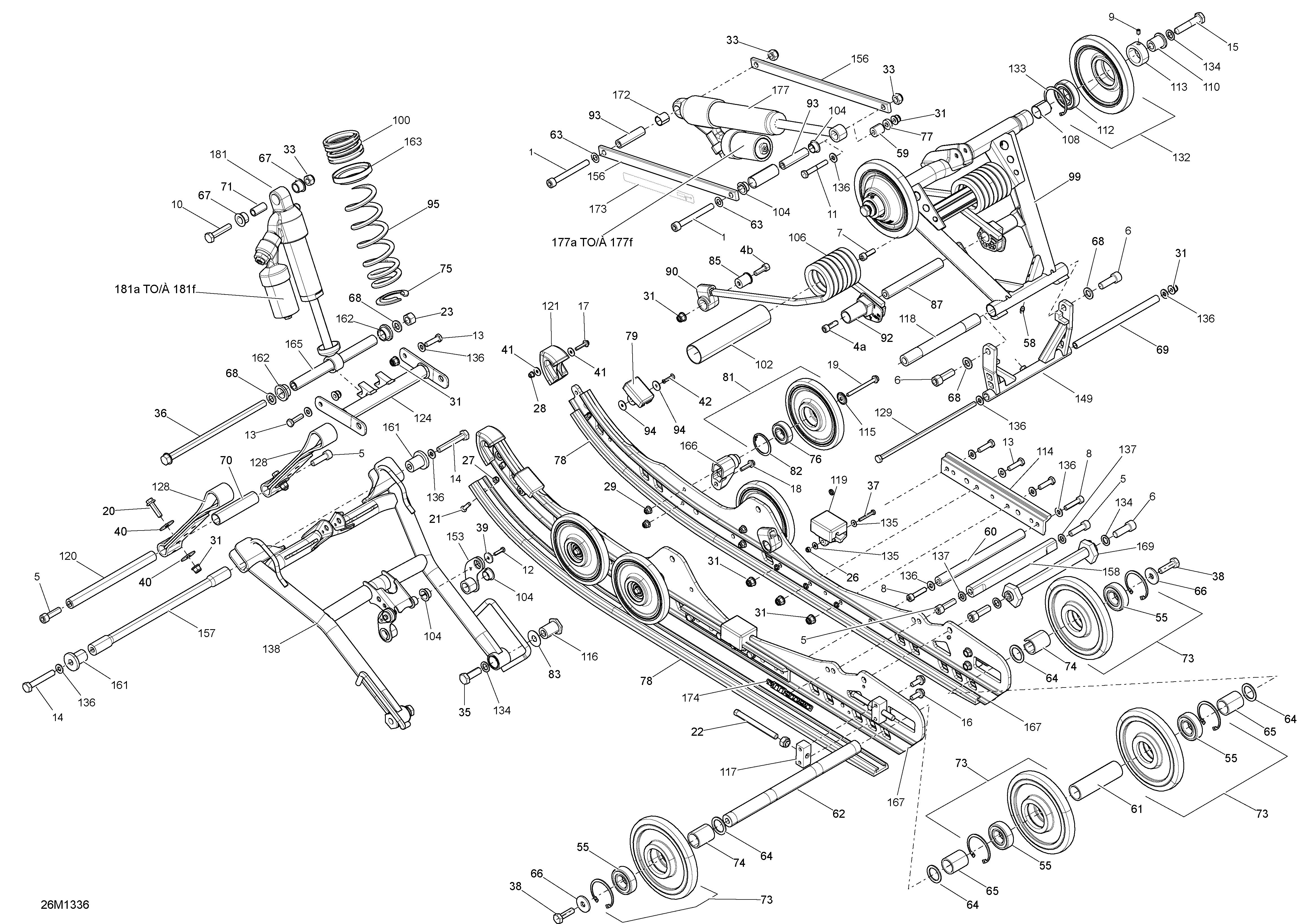

08- Rear Suspension для BRP Ski-Doo MXZ X 600RS XP - 2013
-
№АртикулНазвание
-
1205009044 Socket Screw M10 X 90Socket Screw M10 X 90
-
5205503554 Socket Head Screw M10 X 35Socket Head Screw M10 X 35
-
6205523587 Socket Head Screw Scotch Grip Din.912Socket Head Screw Scotch Grip Din.912
-
7205582544 Socket Head Screw M8 X 25, Scotch GripSocket Head Screw M8 X 25, Scotch Grip
-
8205583544 Socket Head Screw M8 X 35, Scotch GripSocket Head Screw M8 X 35, Scotch Grip
-
9206260844 Socket Set Screw M6 X 8Socket Set Screw M6 X 8
-
10207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
11207085586 Hex. Screw M8 X 55Hex. Screw M8 X 55
-
12207152044 Hex. Screw M5 X 20Hex. Screw M5 X 20
-
13207183054 Hex. Cap Screw M8 X 30Hex. Cap Screw M8 X 30
-
14207206534 Hex. Screw M10 X 65, Scotch GripHex. Screw M10 X 65, Scotch Grip
-
15207226044 Hex. Screw M12 X 60, Scotch GripHex. Screw M12 X 60, Scotch Grip
-
16207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
17207652544 Hex. Flanged Screw M5 X 25Hex. Flanged Screw M5 X 25
-
18207662556 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
19207667056 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
20207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
21208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
22230100054 Hex Screw M10 x 100Hex Screw M10 x 100
-
23232021416 Hex. Nut M12Hex. Nut M12
-
26232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
27232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
28233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
29233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
31233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
33233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
35250000537 Hex. Cap Screw M12 X 35Hex. Cap Screw M12 X 35
-
36250000229 Hex. Screw M12 X 252Hex. Screw M12 X 252
-
37250000483 Hex. Cap Screw M5 X 35Hex. Cap Screw M5 X 35
-
38250000592 Hex Cap Screw NylonHex Cap Screw Nylon
-
39250200016 WasherWasher
-
40250200128 Flat Washer 8 mmFlat Washer 8 mm
-
41250200140 WasherWasher
-
42293150142 Pop Rivet 3/16''Pop Rivet 3/16''
-
55293350055 Ball BearingBall Bearing
-
57390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
58408200700 Grease FittingGrease Fitting
-
59414936000 CushionCushion
-
60503151600 AxleAxle
-
61503156000 Center SpacerCenter Spacer
-
62503167900 Rear AxleRear Axle
-
63503175800 WasherWasher
-
64503180400 WasherWasher
-
65503182900 Inner SpacerInner Spacer
-
66503183300 WasherWasher
-
67503189117 CushionCushion
-
68503189148 WasherWasher
-
69503189156 Pivot Arm AxlePivot Arm Axle
-
70503189265 SpacerSpacer
-
71503189282 BushingBushing
-
73503189568 Wheel 165 Ass'YWheel 165 Ass'Y
-
74503189809 Outer SpacerOuter Spacer
-
75503190271 Spring StopperSpring Stopper
-
76503190396 Ball BearingBall Bearing
-
77503190526 SpacerSpacer
-
78503190573 Slider ShoeSlider Shoe
-
79503190576 Rubber StopperRubber Stopper
-
81503191316 Wheel 141 Ass'yWheel 141 Ass'y
-
82415129371 Retaining RingRetaining Ring
-
83503190656 WasherWasher
-
85503190754 Retainer CushionRetainer Cushion
-
87503191178 Spring Cam AxeSpring Cam Axe
-
90503191183 Spring SupportSpring Support
-
92503191191 LH Spring CamLH Spring Cam
-
92503191190 RH Spring CamRH Spring Cam
-
93503191192 Bar AxleBar Axle
-
94503191273 WasherWasher
-
95503192724 SpringSpring
-
99503193126 Rear ArmRear Arm
-
100503193112 Painted SpringPainted Spring
-
102503191345 Plastic BushingPlastic Bushing
-
104503191555 Swivel BushingSwivel Bushing
-
106503191615 LH Spring, SquareLH Spring, Square
-
106503191614 RH Spring, SquareRH Spring, Square
-
108503191773 BushingBushing
-
110503191775 BushingBushing
-
112503191778 Ball BearingBall Bearing
-
113503191782 Retaining RingRetaining Ring
-
114503192497 Reinforcement RunnerReinforcement Runner
-
115503191820 Wheel Cup M6Wheel Cup M6
-
116503191966 Lower AxleLower Axle
-
117503191984 TensionerTensioner
-
118503192095 Lower ShaftLower Shaft
-
119503192099 Rubber StopperRubber Stopper
-
120503192115 Runner AxelRunner Axel
-
121503192299 Runner ProtectorRunner Protector
-
124503193285 Adjusted ReinforcementAdjusted Reinforcement
-
128503192360 Stopper StrapStopper Strap
-
129503192440 Bolt M8 X 248mmBolt M8 X 248mm
-
132503192483 Wheel 155Wheel 155
-
133415129598 Retaining RingRetaining Ring
-
134503192491 WasherWasher
-
135503192493 WasherWasher
-
136503192494 WasherWasher
-
137503192496 WasherWasher
-
138503192673 Front Arm Ass'yFront Arm Ass'y
-
149503192701 Pivot ArmPivot Arm
-
153503192706 LH Rocker ArmLH Rocker Arm
-
153503192707 RH Rocker ArmRH Rocker Arm
-
156503192712 Tie RodTie Rod
-
157503192713 Slide BushingSlide Bushing
-
158503192715 Limit AxleLimit Axle
-
161503192721 BushingBushing
-
162503192726 CushionCushion
-
163503193131 Spring SpacerSpring Spacer
-
165503192809 Center Shaft PivotCenter Shaft Pivot
-
166503193082 Casted SupportCasted Support
-
167503193431 Runner, BronzeRunner, Bronze
-
169503193129 Axle CamAxle Cam
-
172505072663 BushingBushing
-
173516005609 Shock Position DecalShock Position Decal
-
174516004755 Runner DecalRunner Decal
-
177503193109 Rear ShocksRear Shocks
-
181503193457 Center ShockCenter Shock
-
177a415093807 O-RingO-Ring
-
177b415093806 Piston RingPiston Ring
-
177c505070398 Air ValveAir Valve
-
177d505070399 ScrewScrew
-
177e505070400 O-RingO-Ring
-
177f415093804 O-RingO-Ring
-
181a415093807 O-RingO-Ring
-
181b415093806 Piston RingPiston Ring
-
181c505070398 Air ValveAir Valve
-
181d505070399 ScrewScrew
-
181e505070400 O-RingO-Ring
-
181f415093804 O-RingO-Ring
-
4a205082554 Socket Screw M8 X 25Socket Screw M8 X 25
-
4b205582544 Socket Head Screw M8 X 25, Scotch GripSocket Head Screw M8 X 25, Scotch Grip
