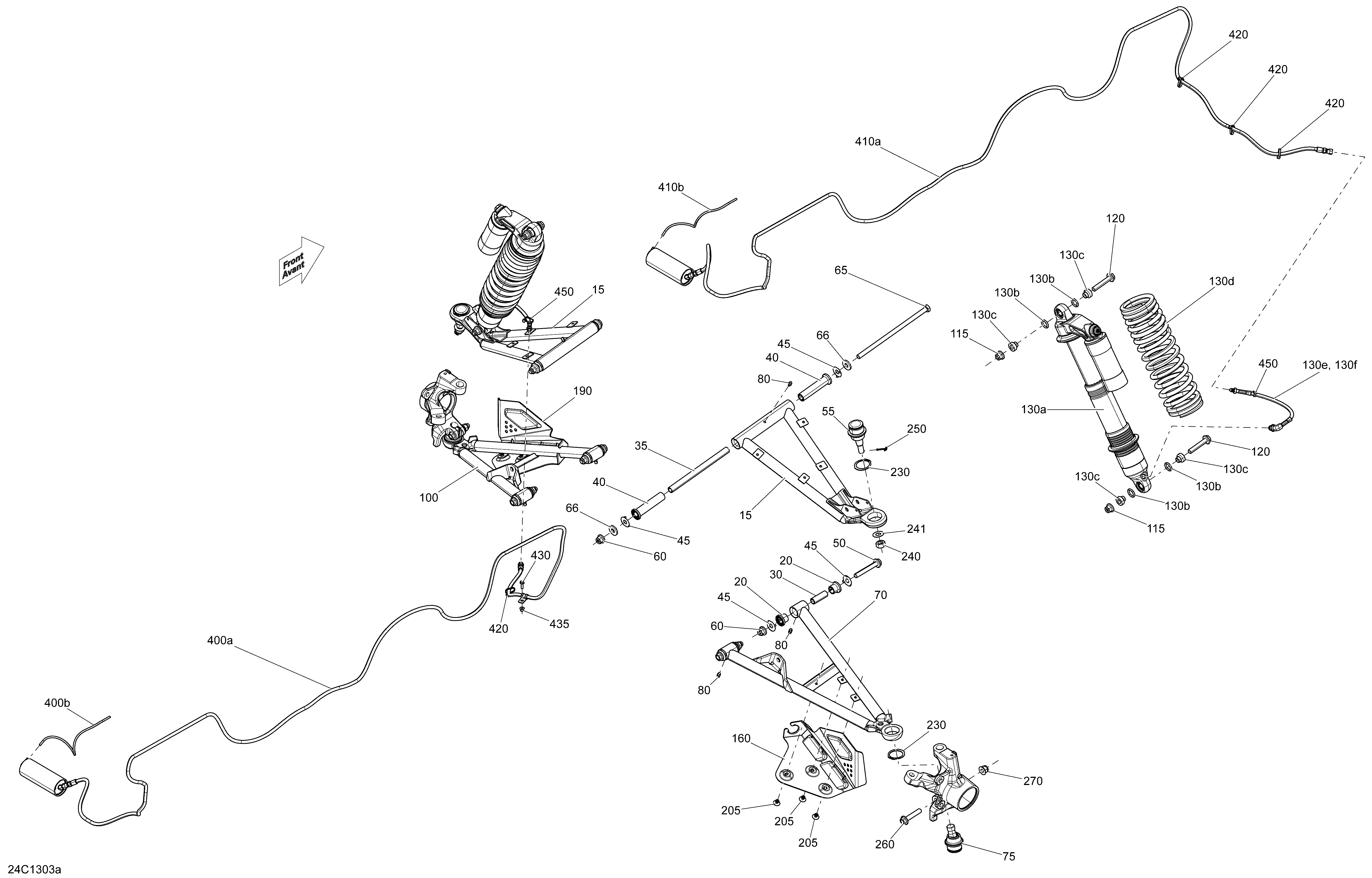

07- Front Suspension Except Europe для BRP Commander LTD 1000 - 2013
-
№АртикулНазвание
-
15706200796 Suspension Upper ArmSuspension Upper Arm
-
20703500875 Bushing Kit. Includes 30Bushing Kit. Includes 30
-
30703500875 Bushing Kit. Includes 20Bushing Kit. Includes 20
-
35706201061 Inner BushingInner Bushing
-
40706201062 CushionCushion
-
45706201063 Wear PlateWear Plate
-
50207607046 Hex. Flanged Screw M10 X 70Hex. Flanged Screw M10 X 70
-
55706202044 Ball JointBall Joint
-
60233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
65250000510 Hex. Cap Screw M10 X 225Hex. Cap Screw M10 X 225
-
66503190439 WasherWasher
-
70706200744 RH Lower Suspension ArmRH Lower Suspension Arm
-
75706202045 Ball JointBall Joint
-
80408200700 Grease FittingGrease Fitting
-
100706200742 LH Lower Suspension ArmLH Lower Suspension Arm
-
115233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
120207605544 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
-
130a706201364 Front Shock. Includes 130a to 130cFront Shock. Includes 130a to 130c
-
130b715500360 O-Ring BushingO-Ring Bushing
-
130c715500361 Interior BushingInterior Bushing
-
130d706201473 Black SpringBlack Spring
-
130e706201446 LH Front Hose Assembly. Includes 130e to 130fLH Front Hose Assembly. Includes 130e to 130f
-
130f705600459 ClampClamp
-
160706201670 RH ProtectorRH Protector
-
190706201669 LH ProtectorLH Protector
-
205293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
230293370035 CirclipCirclip
-
240250100099 Nut M12Nut M12
-
241706200281 Hardened WasherHardened Washer
-
250211400017 Cotter PinCotter Pin
-
260207605044 Hex. Flanged Screw M10 X 50Hex. Flanged Screw M10 X 50
-
270233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
400a706201536 LH Front Hose Assembly. Includes 400a to 400bLH Front Hose Assembly. Includes 400a to 400b
-
400b706001143 Hose, Polyurethane 4 mmHose, Polyurethane 4 mm
-
410a706201537 RH Front Hose Ass'y. Includes 410a to 410bRH Front Hose Ass'y. Includes 410a to 410b
-
410b706001143 Hose, Polyurethane 4 mmHose, Polyurethane 4 mm
-
420293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
430210251680 Hex. Forming Screw M5 X 16Hex. Forming Screw M5 X 16
-
435233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
450414115200 Tie-Rap 180 mmTie-Rap 180 mm
