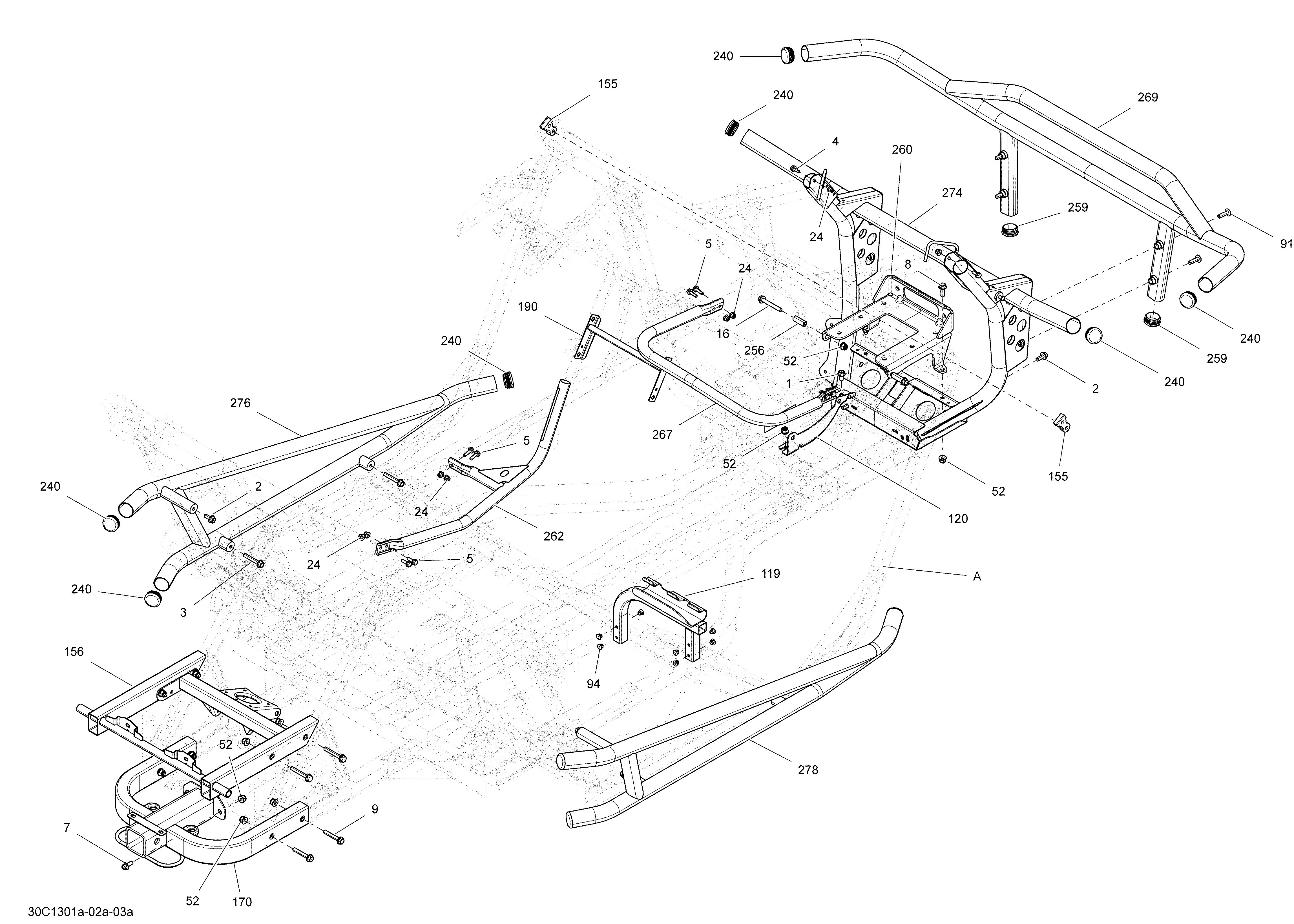

09- Frame для BRP Commander LTD 1000 - 2013
-
№АртикулНазвание
-
1207581644 Hex. Flanged Screw M8 X 16, Scotch GripHex. Flanged Screw M8 X 16, Scotch Grip
-
2207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
4207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
5207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
7207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
8207682544 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
9207685044 Hex. Flanged Screw M8 X 50Hex. Flanged Screw M8 X 50
-
16207686044 Hex. Flanged Screw M8 x 60Hex. Flanged Screw M8 x 60
-
24233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
52233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
91250000197 Torx Truss Screw M8 X 30Torx Truss Screw M8 X 30
-
94293150096 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
119715001721 Frame Ass'yFrame Ass'y
-
120705201721 Front Differential SupportFront Differential Support
-
155705202129 Binding PlateBinding Plate
-
156705202165 Box holderBox holder
-
170715001251 Trailer Hitch Ass'yTrailer Hitch Ass'y
-
190705202463 Panel ReinforcementPanel Reinforcement
-
240705202455 CapCap
-
256705202499 BushingBushing
-
260715000704 Winch PlateWinch Plate
-
262705202946 Console HandleConsole Handle
-
267705202950 Passenger HandlePassenger Handle
-
269715000958 Black Front BumperBlack Front Bumper
-
274705202995 Front BumperFront Bumper
-
A715001721 Frame Ass'yFrame Ass'y
