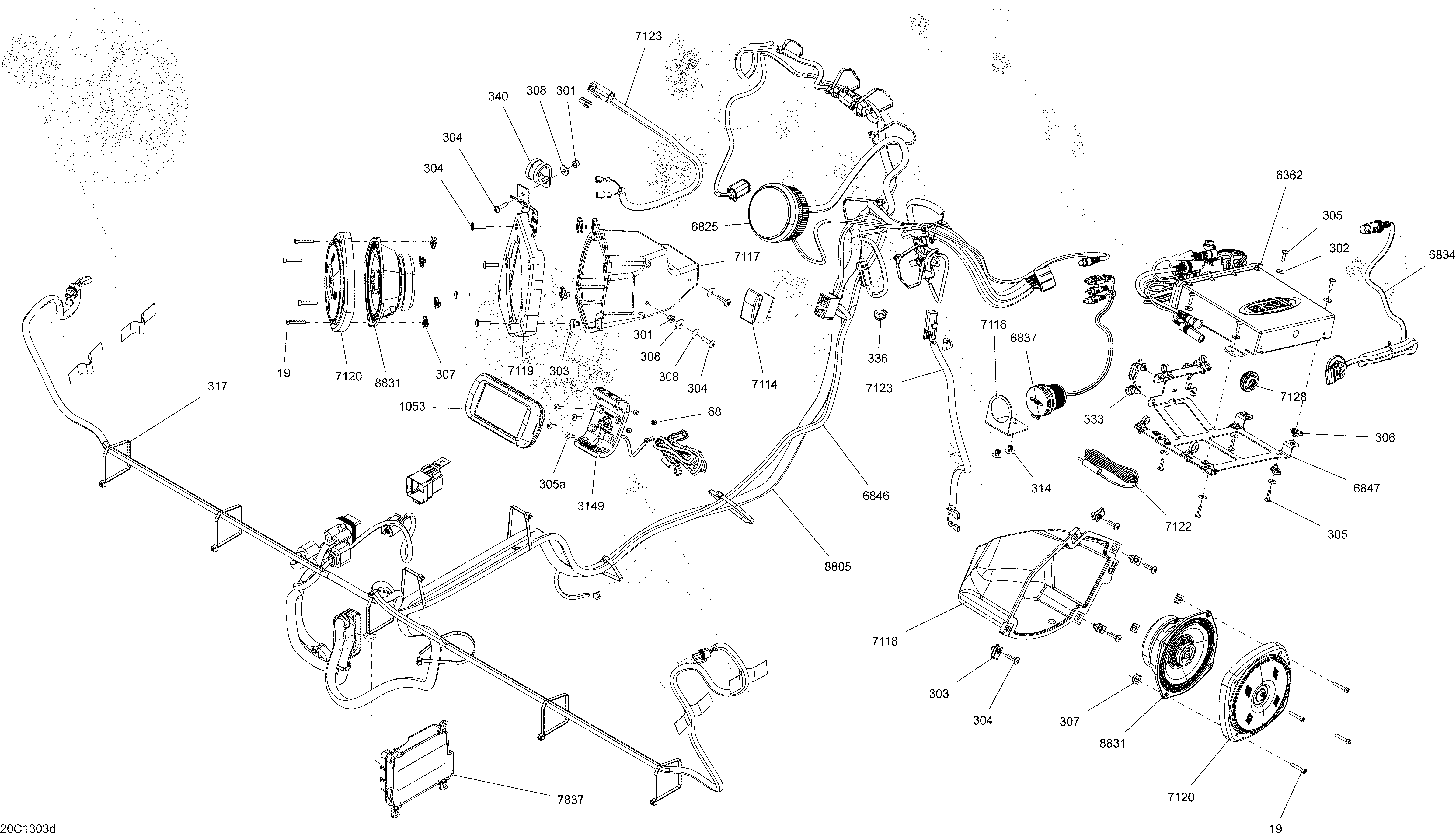

10- Electrical System для BRP Commander LTD 1000 - 2013
-
№АртикулНазвание
-
19205042560 Socket Head Screw M4 X 25. LTDSocket Head Screw M4 X 25. LTD
-
68232541484 Elastic Stop Nut M4. LTDElastic Stop Nut M4. LTD
-
301233251494 Elastic Flanged Nut M5. LTDElastic Flanged Nut M5. LTD
-
302234042600 Flat Washer 4 mm, Stainless. LTDFlat Washer 4 mm, Stainless. LTD
-
303250000079 Panel Nut M5 X 0.8. LTDPanel Nut M5 X 0.8. LTD
-
304250000130 Torx Screw M5 X 20. LTDTorx Screw M5 X 20. LTD
-
305a250000575 Torx-Truss M4 X 16. LTDTorx-Truss M4 X 16. LTD
-
305250000242 Truss Torx Screw M4 X 16. LTDTruss Torx Screw M4 X 16. LTD
-
306250100143 Extruded Panel Nut M4 X 0.7. LTDExtruded Panel Nut M4 X 0.7. LTD
-
307250100149 Extruded Panel Nut M4 X 0.7. LTDExtruded Panel Nut M4 X 0.7. LTD
-
308250200025 Washer M5. LTDWasher M5. LTD
-
314293150103 Pop Rivet 3/16''. LTDPop Rivet 3/16''. LTD
-
317293750008 Tie-Rap 350 mm. LTDTie-Rap 350 mm. LTD
-
333293750009 Tie-Rap 173 mm. LTDTie-Rap 173 mm. LTD
-
336414227300 Clip. LTDClip. LTD
-
340709200036 Hose Anchor. LTDHose Anchor. LTD
-
1053710002544 GPS. LTD InternationalGPS. LTD International
-
1053710002544 GPS. LTD North AmericaGPS. LTD North America
-
3149710002545 GPS Support. LTDGPS Support. LTD
-
6362710002548 Amplifier. LTDAmplifier. LTD
-
6825710002549 Radio Interface. LTDRadio Interface. LTD
-
6834710002550 IPOD Extension. LTDIPOD Extension. LTD
-
6837710002551 USB Extension. LTDUSB Extension. LTD
-
6846710002553 Radio Harness. LTDRadio Harness. LTD
-
6847710002556 Amplifier Support. LTDAmplifier Support. LTD
-
7114710002684 Switched Accessory. LTDSwitched Accessory. LTD
-
7116710002731 USB Extension Support. LTDUSB Extension Support. LTD
-
7117710002786 LH Front Speaker Box. LTDLH Front Speaker Box. LTD
-
7118710002787 RH Front Speaker Box. LTDRH Front Speaker Box. LTD
-
7119710002789 Speaker Box Plate. LTDSpeaker Box Plate. LTD
-
7120710002790 Speaker Cover. LTDSpeaker Cover. LTD
-
7122710002810 Antenna. LTDAntenna. LTD
-
7123710002833 Speaker Harness. LTDSpeaker Harness. LTD
-
7128710002926 Grommet Boot. LTDGrommet Boot. LTD
-
7837710002947 Calibrated Compressor Module. LTDCalibrated Compressor Module. LTD
-
8805710003005 Compressor Harness. LTDCompressor Harness. LTD
-
8831710003233 Front Speaker. LTDFront Speaker. LTD
