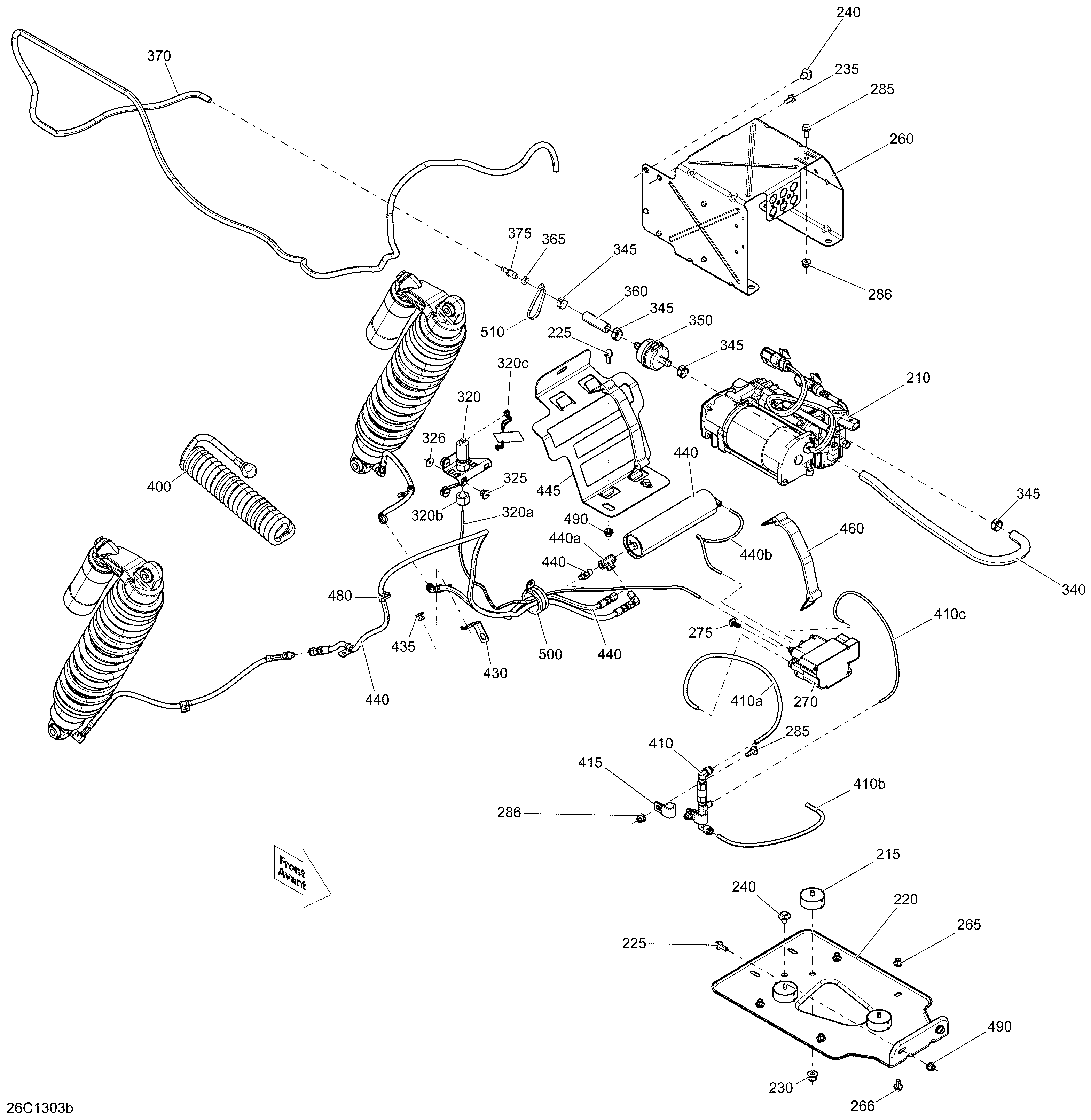

08- Rear Suspension Except Europe_Compressor для BRP Commander LTD 1000 - 2013
-
№АртикулНазвание
-
210706001100 CompressorCompressor
-
210a706001104 Solenoid ValveSolenoid Valve
-
210b715900198 Pressure Connector 4mmPressure Connector 4mm
-
210c715900199 Pressure Connector 6mmPressure Connector 6mm
-
215706001127 Rubber MountRubber Mount
-
220706001121 Lower SupportLower Support
-
225207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
230233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
235210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
240293730018 Mount DartMount Dart
-
260706001120 Upper SupportUpper Support
-
265293450274 InsertInsert
-
266207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
270706001104 Solenoid ValveSolenoid Valve
-
275250000546 Oval Head Torx Screw K60 X 16Oval Head Torx Screw K60 X 16
-
285207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
286233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
320706001134 Bracket Ass'y. Inclus 320 to 320cBracket Ass'y. Inclus 320 to 320c
-
320a706001143 Hose, Polyurethane 4 mmHose, Polyurethane 4 mm
-
320b250100124 Hex. Nut With Nylon 1/2'' X 20Hex. Nut With Nylon 1/2'' X 20
-
320c414811400 O-RingO-Ring
-
325390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
326517124300 WasherWasher
-
340415080300 Fuel LineFuel Line
-
345293650053 Crimp ClampCrimp Clamp
-
350706001141 Air FilterAir Filter
-
360415080300 Fuel LineFuel Line
-
365293650195 Clamp, OetikerClamp, Oetiker
-
370415080200 Hose, PolyurethaneHose, Polyurethane
-
375293710035 Straight FittingStraight Fitting
-
400706000808 Auxiliary HoseAuxiliary Hose
-
410706001144 Pressure Distributor Ass'y. Inclus 410 to 410cPressure Distributor Ass'y. Inclus 410 to 410c
-
410a706001145 Hose, Polyurethane 6 mmHose, Polyurethane 6 mm
-
410b706001145 Hose, Polyurethane 6 mmHose, Polyurethane 6 mm
-
410c706001143 Hose, Polyurethane 4 mmHose, Polyurethane 4 mm
-
415705600040 Open ClampOpen Clamp
-
430705601036 Hose BracketHose Bracket
-
435390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
440706001169 Rear Shocks Distributor Ass'y. Inclus 440 to 440bRear Shocks Distributor Ass'y. Inclus 440 to 440b
-
440a706000806 T-FittingT-Fitting
-
440b706001143 Hose, Polyurethane 4 mmHose, Polyurethane 4 mm
-
455706201524 Tank BracketTank Bracket
-
460515176044 Battery StrapBattery Strap
-
480293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
490293450274 InsertInsert
-
500293650218 Hose RetainerHose Retainer
-
510414115200 Tie-Rap 180 mmTie-Rap 180 mm
