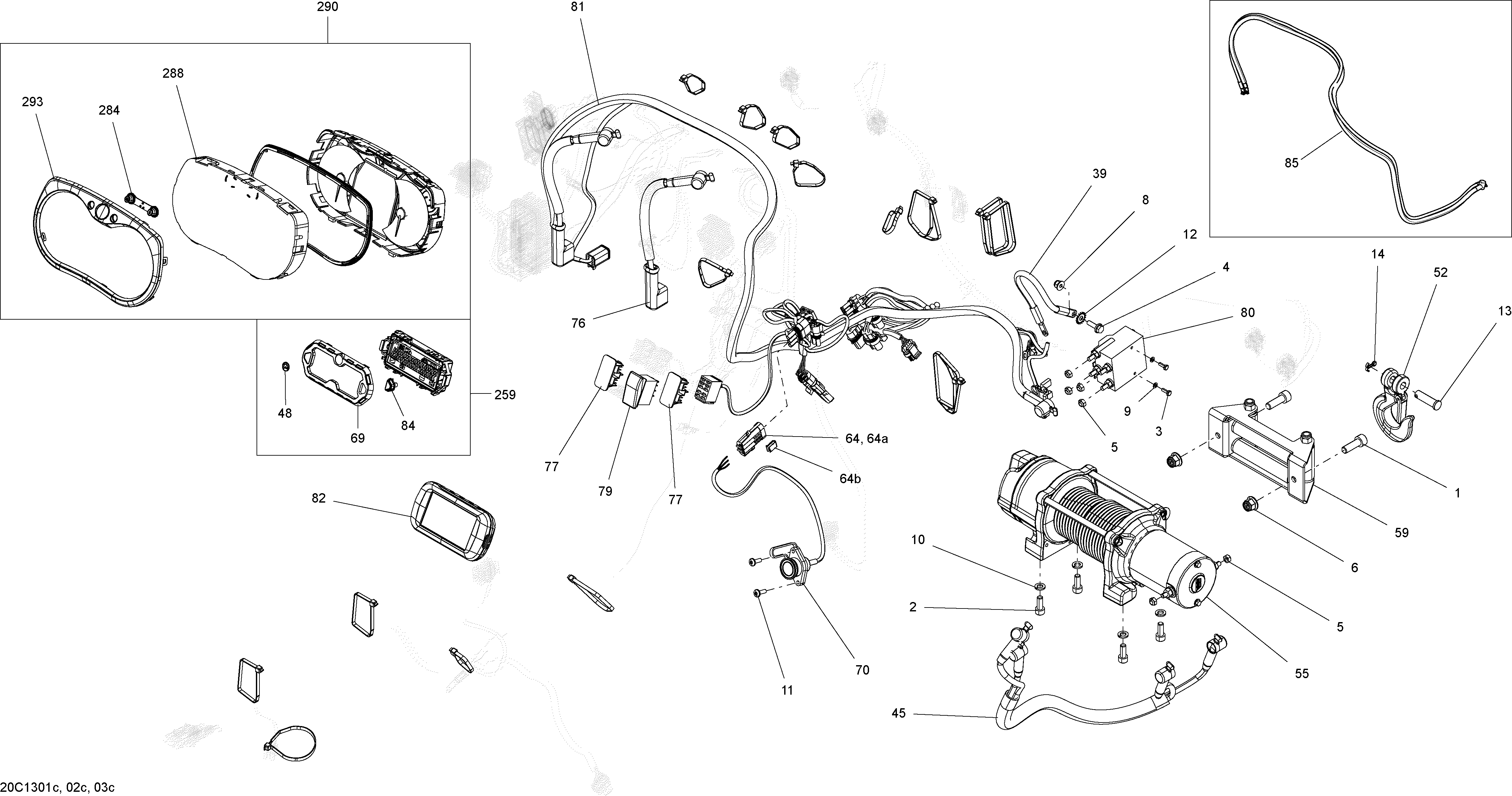

10- Electrical System LTD для BRP Commander LTD 1000 - 2013
-
№АртикулНазвание
-
1205003044 Socket Screw M10 x 30. LTD Except EuropeSocket Screw M10 x 30. LTD Except Europe
-
2205082044 Socket Head Screw M8 X 20. LTD Except EuropeSocket Head Screw M8 X 20. LTD Except Europe
-
3207141044 Hex. Screw M4 X 10. LTD Except EuropeHex. Screw M4 X 10. LTD Except Europe
-
4207662044 Hex. Flanged Screw M6 X 20. LTD Except EuropeHex. Flanged Screw M6 X 20. LTD Except Europe
-
5232561434 Elastic Stop Nut M6. LTD Except EuropeElastic Stop Nut M6. LTD Except Europe
-
6233201414 Hex. Flanged Elastic Nut M10. LTD Except EuropeHex. Flanged Elastic Nut M10. LTD Except Europe
-
8233261414 Hex. Flanged Elastic Nut M6. LTD Except EuropeHex. Flanged Elastic Nut M6. LTD Except Europe
-
9234141601 Lock Washer 4 mm. LTD Except EuropeLock Washer 4 mm. LTD Except Europe
-
10234181401 Lock Washer 8 mm. LTD Except EuropeLock Washer 8 mm. LTD Except Europe
-
11250000146 Truss Head Torx Screw K50 X 16. LTD Except EuropeTruss Head Torx Screw K50 X 16. LTD Except Europe
-
12250200041 Lock Washer Serrated M6. LTD Except EuropeLock Washer Serrated M6. LTD Except Europe
-
13250400021 Clevis Pin. LTD Except EuropeClevis Pin. LTD Except Europe
-
14250400022 Cotter Pin. LTD Except EuropeCotter Pin. LTD Except Europe
-
39710002214 Negative Cable. LTD Except EuropeNegative Cable. LTD Except Europe
-
45710002216 Electrical Winch Cable. LTD Except EuropeElectrical Winch Cable. LTD Except Europe
-
52705002329 Hook. LTD Except EuropeHook. LTD Except Europe
-
55705003944 Winch. LTD Except EuropeWinch. LTD Except Europe
-
59705004228 Winch Cable Guide. LTD Except EuropeWinch Cable Guide. LTD Except Europe
-
64710001059 Connector Ass'y. LTD Except EuropeConnector Ass'y. LTD Except Europe
-
64a278000281 Female Terminal Housing, 3 Circuits. LTD Except EuropeFemale Terminal Housing, 3 Circuits. LTD Except Europe
-
64b710000992 Clip. LTD Except EuropeClip. LTD Except Europe
-
70710001023 Winch Connector. LTD Except EuropeWinch Connector. LTD Except Europe
-
77710001999 Plug Carling. LTD EuropePlug Carling. LTD Europe
-
79710002052 Switch. LTD Except EuropeSwitch. LTD Except Europe
-
80710002112 Solenoid. LTD Except EuropeSolenoid. LTD Except Europe
-
81710002159 Positive Cable. LTD Except EuropePositive Cable. LTD Except Europe
-
81710003404 Winch Cable (-/+). XT, LTDWinch Cable (-/+). XT, LTD
-
82710002544 GPS. LTD InternationalGPS. LTD International
-
82710002544 GPS. LTD North AmericaGPS. LTD North America
-
82710003093 GPS. LTD EuropeGPS. LTD Europe
-
85710003407 Winch Cable (-/+). X, DPSWinch Cable (-/+). X, DPS
-
284415129355 Speedometer Button. LTDSpeedometer Button. LTD
-
288415129349 Lens. LTDLens. LTD
-
290710003290 Calibrated Speedometer. LTDCalibrated Speedometer. LTD
-
293415129348 Gauge Ring. LTDGauge Ring. LTD
