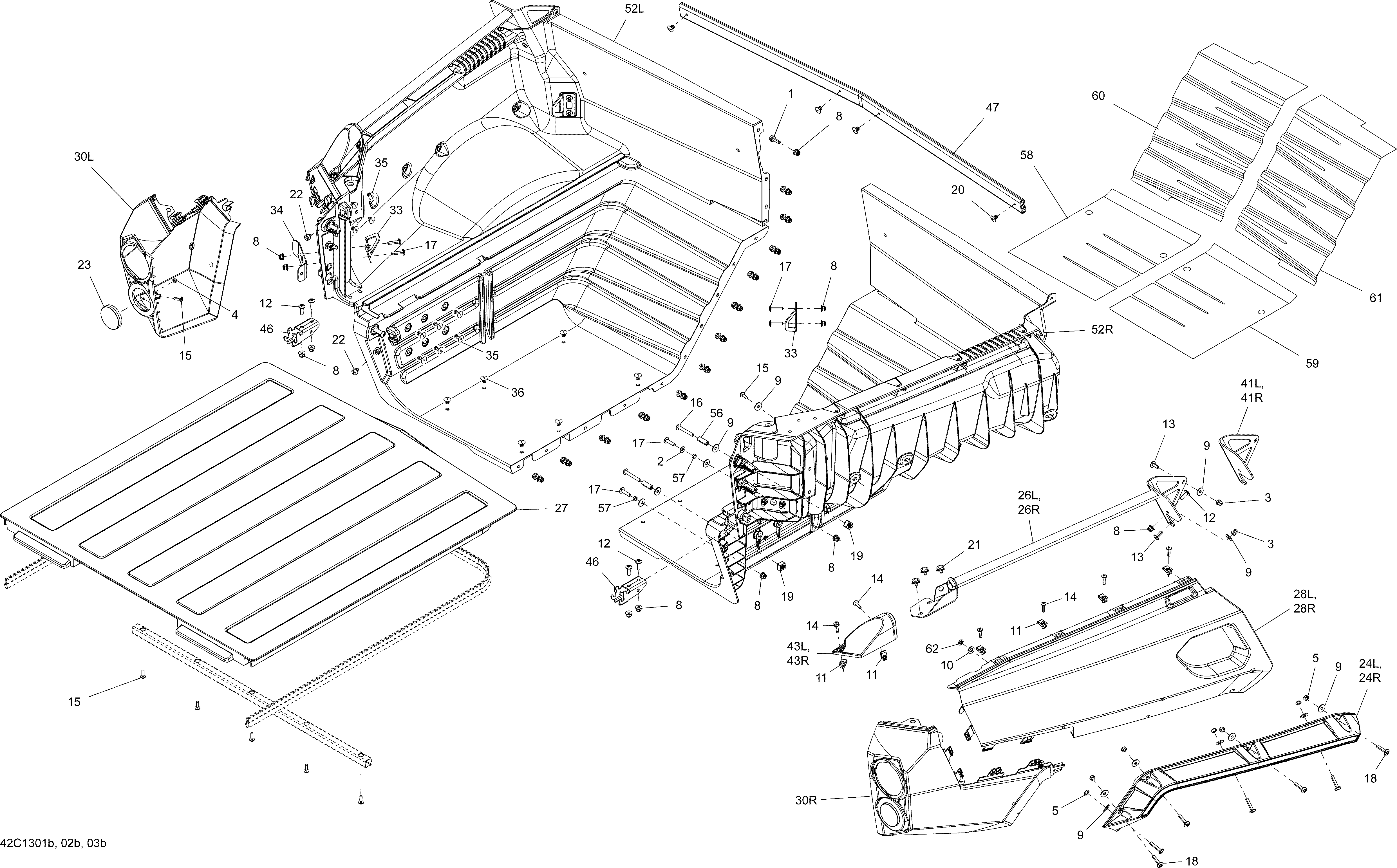

09- Rear Cargo Box для BRP Commander LTD 1000 - 2013
-
№АртикулНазвание
-
1207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
2224061121 Flat WasherFlat Washer
-
3232361493 Domed Nut M6Domed Nut M6
-
4232551414 Elastic Stop Nut M5. North America, InternationalElastic Stop Nut M5. North America, International
-
5232561434 Elastic Stop Nut M6. LTDElastic Stop Nut M6. LTD
-
8233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
9234062670 Flat WasherFlat Washer
-
10234081100 Flat Washer 8 mm, NylonFlat Washer 8 mm, Nylon
-
11250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
11250000079 Panel Nut M5 X 0.8. LTDPanel Nut M5 X 0.8. LTD
-
12250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
13250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
14250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
14250000130 Torx Screw M5 X 20. LTDTorx Screw M5 X 20. LTD
-
15250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
16250000215 Torx Screw M6 X 45Torx Screw M6 X 45
-
17250000284 Torx Screw M6 x 25Torx Screw M6 x 25
-
18250000371 Torx Screw M6 X 30 Stainless. LTDTorx Screw M6 X 30 Stainless. LTD
-
19269500725 Nut Housing Ass'yNut Housing Ass'y
-
20293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
21293150190 Pop Rivet 3/16. LTDPop Rivet 3/16. LTD
-
22293830005 Rubber PlugRubber Plug
-
24L705003603 LH Upper Rear Mudguards. LTDLH Upper Rear Mudguards. LTD
-
24R705003604 RH Upper Rear Mudguards. LTDRH Upper Rear Mudguards. LTD
-
26L708300231 LH Welded Rail. LTDLH Welded Rail. LTD
-
26R708300232 RH Welded Rail. LTDRH Welded Rail. LTD
-
27708300131 Separator Pannel Ass'ySeparator Pannel Ass'y
-
28L708300548 LH Rear Fender, Magnesium. MagnesiumLH Rear Fender, Magnesium. Magnesium
-
28L708300671 LH Rear Fender, White. WhiteLH Rear Fender, White. White
-
28R708300550 RH Rear Fender, Magnesium. MagnesiumRH Rear Fender, Magnesium. Magnesium
-
28R708300670 RH Rear Fender, White. WhiteRH Rear Fender, White. White
-
30l708300103 LH Rear FaciaLH Rear Facia
-
30l708300103 LH Rear Facia. LTDLH Rear Facia. LTD
-
30r708300104 RH Rear FaciaRH Rear Facia
-
30r708300104 RH Rear Facia. LTDRH Rear Facia. LTD
-
33708300183 Retaining PlateRetaining Plate
-
34708300206 Retaining Plate SupportRetaining Plate Support
-
35293150100 Pop Rivet 3/16''Pop Rivet 3/16''
-
36293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
43L708300233 LH Rail Cover. LTDLH Rail Cover. LTD
-
43R708300234 RH Rail Cover. LTDRH Rail Cover. LTD
-
46708300345 Upper Pivot SupportUpper Pivot Support
-
47708300346 Front SupportFront Support
-
52L715001259 LH Box Ass'yLH Box Ass'y
-
52R715001257 RH Box Ass'yRH Box Ass'y
-
56708300736 SpacerSpacer
-
57708300737 BushingBushing
-
58708300809 Heat Deflector SheetHeat Deflector Sheet
-
59708300810 Heat Deflector SheetHeat Deflector Sheet
-
60708300811 Heat Deflector SheetHeat Deflector Sheet
-
61708300812 Heat Deflector SheetHeat Deflector Sheet
-
62732610072 Push NutPush Nut
