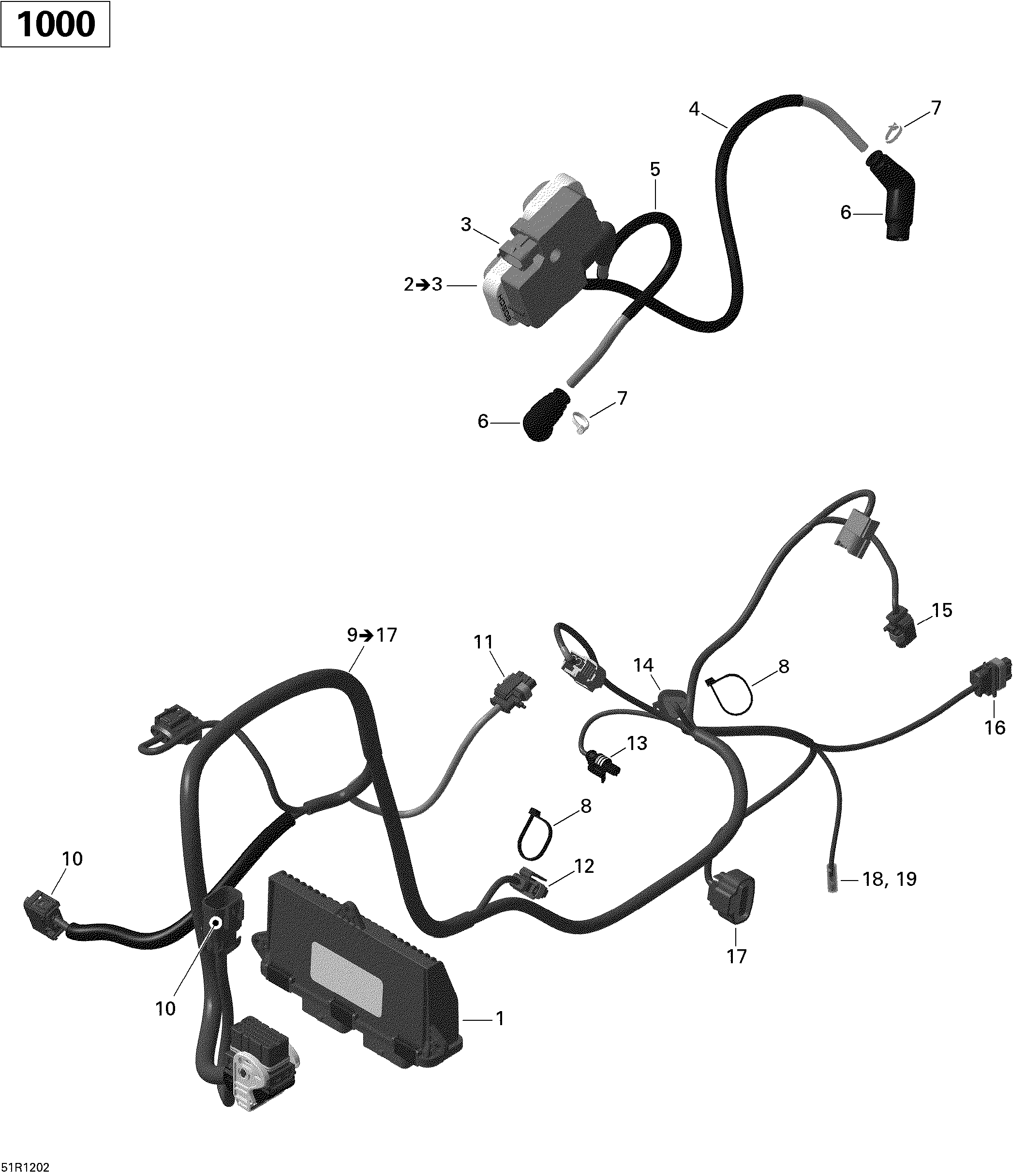

10- Engine Harness And Electronic Module для BRP Commander LTD 1000 - 2013
-
№АртикулНазвание
-
1420266956 ECM Connector. Except EuropeECM Connector. Except Europe
-
1420266957 ECM Connector. EuropeECM Connector. Europe
-
2278001546 Ignition CoilIgnition Coil
-
3710000568 HousingHousing
-
4420665330 Spark Plug Cable, 610 mm, PTO SideSpark Plug Cable, 610 mm, PTO Side
-
5420664300 Spark Plug Cable, 365 mm, MAG SideSpark Plug Cable, 365 mm, MAG Side
-
6420265248 Spark Plug ConnectorSpark Plug Connector
-
7420866710 Tie RapTie Rap
-
8420866714 Tie RapTie Rap
-
9420666332 Engine Wiring Harness. Includes 9 to 17Engine Wiring Harness. Includes 9 to 17
-
10710001872 Housing, 6 PositionsHousing, 6 Positions
-
11278000997 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
12278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
13278001012 Male Housing, 1 CircuitMale Housing, 1 Circuit
-
14409207000 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
15278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
16278000997 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
17710000329 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
18278001009 Female TerminalFemale Terminal
-
19278001007 Insulated SheathInsulated Sheath
