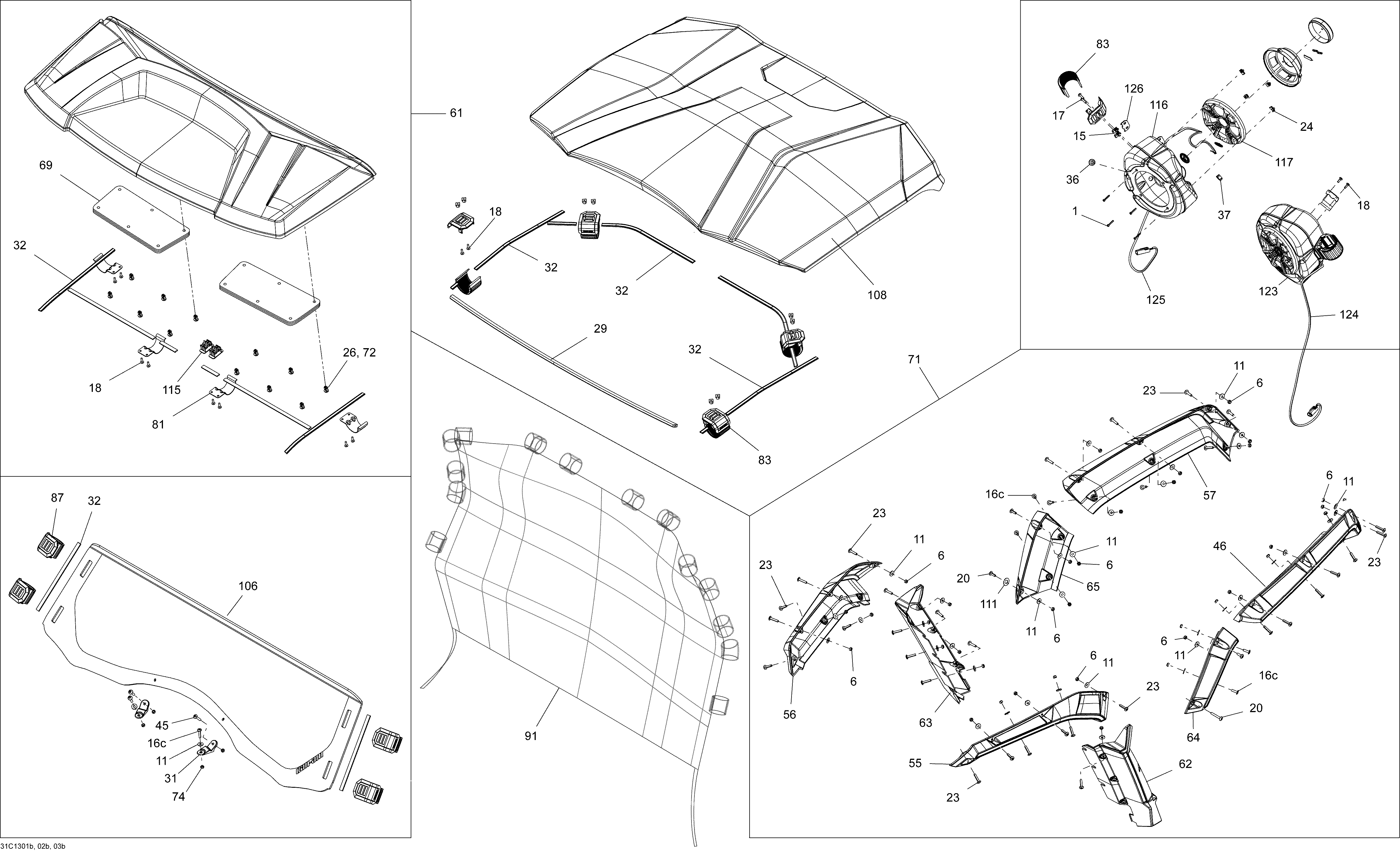

09- Body And Accessories Kit для BRP Commander LTD 1000 - 2013
-
№АртикулНазвание
-
1205042560 Socket Head Screw M4 X 25. LTDSocket Head Screw M4 X 25. LTD
-
6232561434 Elastic Stop Nut M6. LTDElastic Stop Nut M6. LTD
-
11234062670 Flat Washer. LTDFlat Washer. LTD
-
15250000079 Panel Nut M5 X 0.8. LTDPanel Nut M5 X 0.8. LTD
-
16c250000488 Torx Truss Screw M6 X 20. LTDTorx Truss Screw M6 X 20. LTD
-
16c250000488 Torx Truss Screw M6 X 20. LTDTorx Truss Screw M6 X 20. LTD
-
17250000130 Torx Screw M5 X 20. LTDTorx Screw M5 X 20. LTD
-
18250000146 Truss Head Torx Screw K50 X 16. LTDTruss Head Torx Screw K50 X 16. LTD
-
20250000215 Torx Screw M6 X 45. LTDTorx Screw M6 X 45. LTD
-
23250000371 Torx Screw M6 X 30 Stainless. LTDTorx Screw M6 X 30 Stainless. LTD
-
24250100143 Extruded Panel Nut M4 X 0.7. LTDExtruded Panel Nut M4 X 0.7. LTD
-
26293150089 Tuflok Plastic Rivet. LTDTuflok Plastic Rivet. LTD
-
29293200136 Seal, Meter. LTDSeal, Meter. LTD
-
31705005776 Windshield Support. LTDWindshield Support. LTD
-
32293250087 Gasket, Neoprene. LTDGasket, Neoprene. LTD
-
36414036300 Grommet. LTDGrommet. LTD
-
37414227300 Clip. LTDClip. LTD
-
45250000284 Torx Screw M6 x 25. LTDTorx Screw M6 x 25. LTD
-
46705003603 LH Upper Rear Mudguards. LTDLH Upper Rear Mudguards. LTD
-
55705003058 LH Upper Front Mudguards. LTDLH Upper Front Mudguards. LTD
-
56705003059 RH Upper Front Mudguards. LTDRH Upper Front Mudguards. LTD
-
57705003604 RH Upper Rear Mudguards. LTDRH Upper Rear Mudguards. LTD
-
61705005669 Roof Visor Ass.. LTDRoof Visor Ass.. LTD
-
62705003601 LH Lower Front Mudguards. LTDLH Lower Front Mudguards. LTD
-
63705003602 RH Lower Front Mudguards. LTDRH Lower Front Mudguards. LTD
-
64705003605 LH Lower Rear Mudguards. LTDLH Lower Rear Mudguards. LTD
-
65705003606 RH Lower Rear Mudguards. LTDRH Lower Rear Mudguards. LTD
-
69280000496 Visor Pocket. LTDVisor Pocket. LTD
-
71715001013 Fender Extension Kit. LTDFender Extension Kit. LTD
-
72705005658 Visor Fastener Kit. LTDVisor Fastener Kit. LTD
-
74233261494 Hex. Elastic Flanged Nut M6. LTDHex. Elastic Flanged Nut M6. LTD
-
81705004430 ''U'' Bracket. LTD''U'' Bracket. LTD
-
83705005719 Velcro Strap. LTDVelcro Strap. LTD
-
87705005720 Perforated Velcro Strap. LTDPerforated Velcro Strap. LTD
-
91715001193 Rear Net Wind Deflector Ass'y. LTDRear Net Wind Deflector Ass'y. LTD
-
106705005671 Half Windshield Ass'y. LTDHalf Windshield Ass'y. LTD
-
108705005670 Mid Roof Kit. LTDMid Roof Kit. LTD
-
111706200281 Hardened Washer. LTDHardened Washer. LTD
-
115710001999 Plug Carling. LTDPlug Carling. LTD
-
116710002839 RH Speaker Box Ass'yRH Speaker Box Ass'y
-
117710002838 SpeakerSpeaker
-
123710002837 LH Speaker Box Ass'yLH Speaker Box Ass'y
-
124710002857 Speaker Harness. LTDSpeaker Harness. LTD
-
125710002857 Speaker Harness. LTDSpeaker Harness. LTD
-
126710002946 M5 Support Plate. LTDM5 Support Plate. LTD
