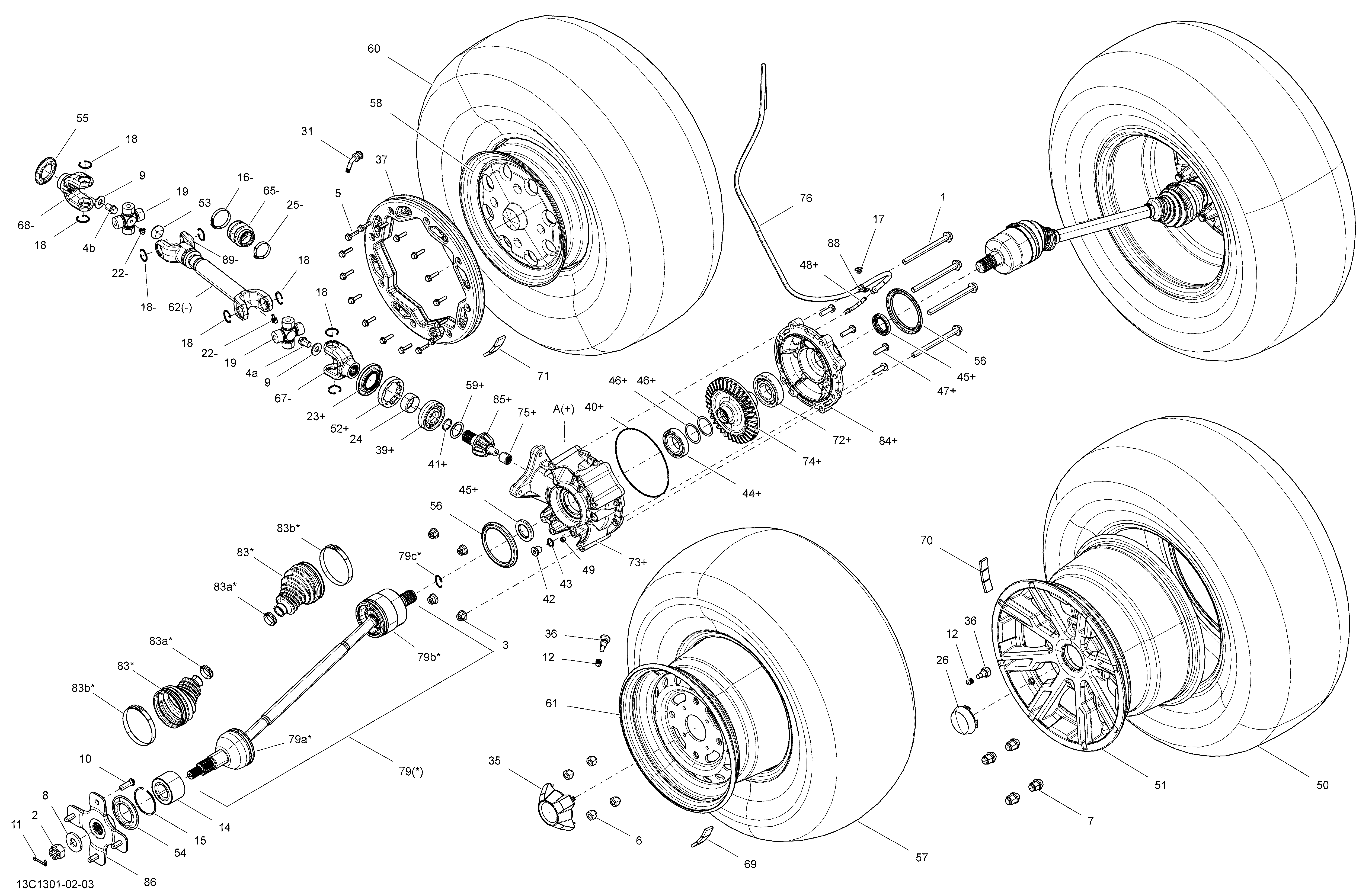

08- Drive System, Rear для BRP Commander LTD 1000 - 2013
-
№АртикулНазвание
-
1230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
2250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
3233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
4a250000378 Hex Flanged Screw M12 X 16, Scotch GripHex Flanged Screw M12 X 16, Scotch Grip
-
4b250000359 Hex Flanged Screw M12 x 16Hex Flanged Screw M12 x 16
-
7250100082 Chrome Wheel Nut M10 X 1.25Chrome Wheel Nut M10 X 1.25
-
8250200049 Spring WasherSpring Washer
-
9250200102 Flat Washer M12Flat Washer M12
-
10250300045 Wheel Stud. LH Hub StudWheel Stud. LH Hub Stud
-
10705400791 Wheel Stud. RH Hub StudWheel Stud. RH Hub Stud
-
11250400036 Cotter PinCotter Pin
-
12293000110 Valve CapValve Cap
-
14293350040 Cone BearingCone Bearing
-
15293370019 CirclipCirclip
-
16293650138 Oetiker Gear ClampOetiker Gear Clamp
-
17390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
18715900102 Snap RingSnap Ring
-
19715900186 U-JointU-Joint
-
22715900184 Grease FittingGrease Fitting
-
23705401481 Oil SealOil Seal
-
24705400036 Wear RingWear Ring
-
25509000045 Oetiker Gear ClampOetiker Gear Clamp
-
26705400520 Wheel CapWheel Cap
-
31705400872 Rim Valve with CapRim Valve with Cap
-
35705400921 Wheel CapWheel Cap
-
36705400193 Rim Valve With CapRim Valve With Cap
-
39705500260 Ball BearingBall Bearing
-
40705500265 SealSeal
-
41705500267 O-RingO-Ring
-
42705500504 Fill Level PlugFill Level Plug
-
43705500506 Copper WasherCopper Washer
-
44705500749 Ball BearingBall Bearing
-
45705501196 Oil SealOil Seal
-
45705501196 Oil SealOil Seal
-
46703500548 Differential Shim KitDifferential Shim Kit
-
46703500049 Pinion Shim KitPinion Shim Kit
-
47705500892 ScrewScrew
-
48705500893 Vent ValveVent Valve
-
49705500894 Drain PlugDrain Plug
-
50705500964 Rear TireRear Tire
-
50705501295 Rear Tire. EuropeRear Tire. Europe
-
51705501471 Rear RimRear Rim
-
52705500987 NutNut
-
53715900187 CoverCover
-
54705501121 Wear SleeveWear Sleeve
-
55705501123 ProtectorProtector
-
56705501124 Wear RingWear Ring
-
59705501162 Pinion Gear ShimPinion Gear Shim
-
59705500075 Pinion Gear Shim .022''Pinion Gear Shim .022''
-
61705501623 Black Rear Rim, BlackBlack Rear Rim, Black
-
62705501257 Drive Axle Ass'yDrive Axle Ass'y
-
65715900118 Rubber BootRubber Boot
-
67715900101 Fixe YokeFixe Yoke
-
68705501373 Fixed JointFixed Joint
-
70705501385 1/2 OZ Weight1/2 OZ Weight
-
72705501389 Ball BearingBall Bearing
-
73705501395 Pinion Rear CoverPinion Rear Cover
-
74705501397 Gear, 36 ToothGear, 36 Tooth
-
75705501408 Needle BearingNeedle Bearing
-
76415080200 Hose, PolyurethaneHose, Polyurethane
-
79705501481 Half ShaftHalf Shaft
-
79a705501776 CV JointCV Joint
-
79b705501780 Plunging JointPlunging Joint
-
79c705501781 CirclipCirclip
-
83705501777 Rubber Boot KitRubber Boot Kit
-
83a715900242 Oetiker Clamp, 27.3 mmOetiker Clamp, 27.3 mm
-
83b715900241 Oetiker Clamp, 82.1 mmOetiker Clamp, 82.1 mm
-
84705501507 Rear Differential CoverRear Differential Cover
-
85705501571 Pinion 10 ToothPinion 10 Tooth
-
86705501713 LH Wheel HubLH Wheel Hub
-
86705401314 RH Wheel HubRH Wheel Hub
-
88705600459 ClampClamp
-
89715900106 Spline YokeSpline Yoke
-
A705502000 Differential Ass'yDifferential Ass'y
