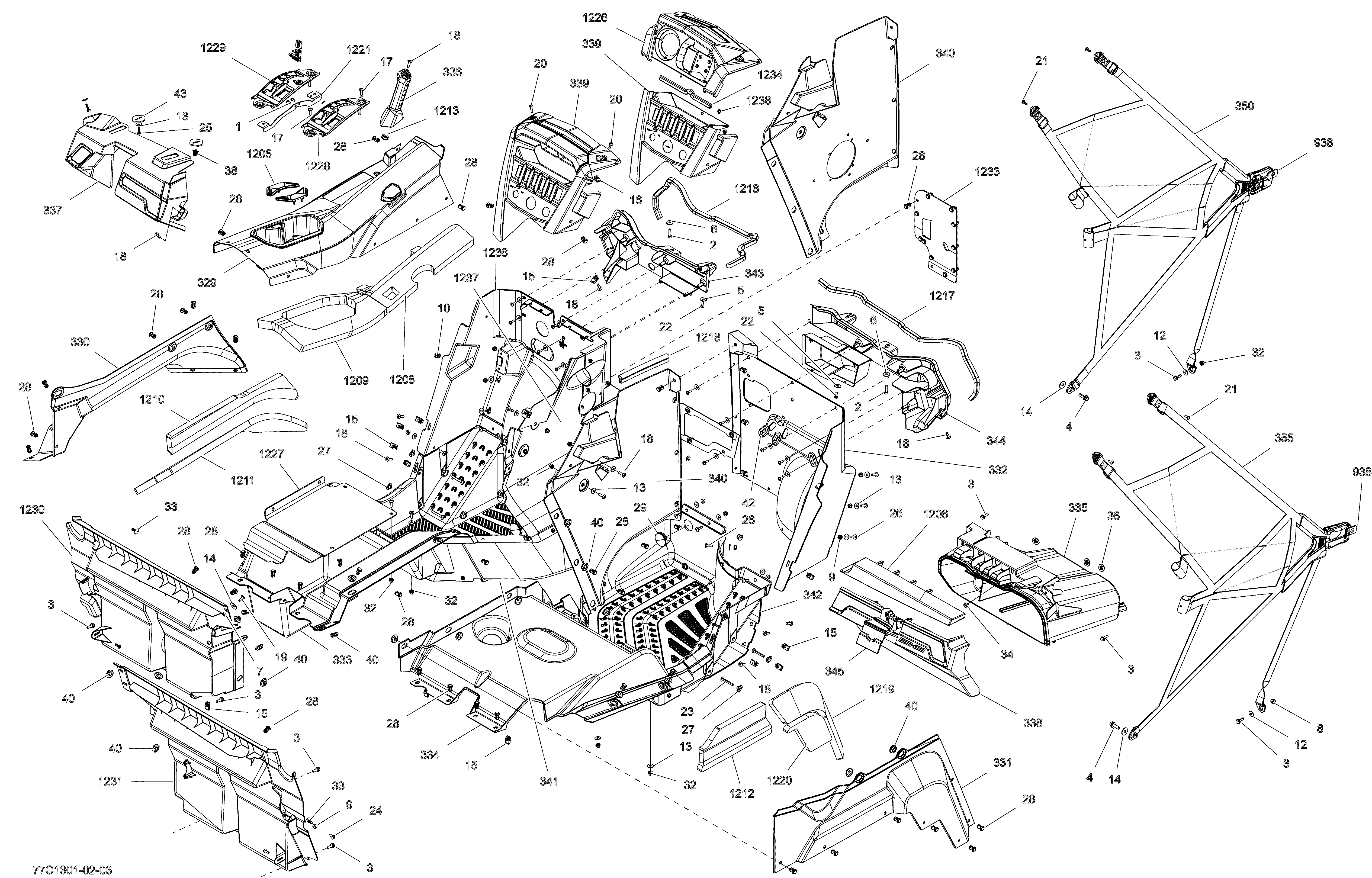

09- Cab Interior для BRP Commander LTD 1000 - 2013
-
№АртикулНазвание
-
2207162544 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
3207662034 Hex. Flanged ScrewHex. Flanged Screw
-
4207682544 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
5224060201 Flat WasherFlat Washer
-
6224061201 Flat WasherFlat Washer
-
7232061600 Hex. Nut M6Hex. Nut M6
-
8233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
9233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
10233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
12234062410 Flat Washer 6 mmFlat Washer 6 mm
-
13234062670 Flat WasherFlat Washer
-
14234082410 Flat Washer 8 mmFlat Washer 8 mm
-
15250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
16250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
17250000081 Torx Screw M6 X 25Torx Screw M6 X 25
-
18250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
19250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
20250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
21250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
22250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
23250000215 Torx Screw M6 X 45Torx Screw M6 X 45
-
24250000261 Torx Screw M6 X 16Torx Screw M6 X 16
-
25250000297 Truss Head Torx Screw K50 X 20Truss Head Torx Screw K50 X 20
-
26250000335 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
27293100003 Nut M6Nut M6
-
28293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
29293250242 Rubber CoverRubber Cover
-
32293450274 InsertInsert
-
33293730011 Dart, BlackDart, Black
-
34293830005 Rubber PlugRubber Plug
-
36414859400 CapCap
-
38517302785 ClipClip
-
40705003264 GrommetGrommet
-
42705003668 Oblong GrommetOblong Grommet
-
43705003841 Support PlateSupport Plate
-
329715001247 Central Console Ass'yCentral Console Ass'y
-
330707900001 LH Side ConsoleLH Side Console
-
331707900002 RH Side ConsoleRH Side Console
-
332707900004 RH Front FloorRH Front Floor
-
333707900153 LH Under Cover Ass'yLH Under Cover Ass'y
-
333707900158 LH Under Cover Ass'yLH Under Cover Ass'y
-
334707900006 RH Under Cover Ass'yRH Under Cover Ass'y
-
335707900046 Storage Bin. LTDStorage Bin. LTD
-
336707900011 Passenger HandlePassenger Handle
-
337715001250 Dashboard Ass'yDashboard Ass'y
-
338715001263 Bin Cover Ass'yBin Cover Ass'y
-
339707900065 Lower Central Dashboard Ass'y. LTDLower Central Dashboard Ass'y. LTD
-
340707900098 RH Fixe Side Console. LTDRH Fixe Side Console. LTD
-
341707900022 LH Lower FloorLH Lower Floor
-
342707900023 RH Lower FloorRH Lower Floor
-
343707900029 LH Floor SupportLH Floor Support
-
344707900030 RH Floor SupportRH Floor Support
-
345707900031 LatchLatch
-
350707900127 LH Lateral Net. Upper Link 707900049LH Lateral Net. Upper Link 707900049
-
355707900128 RH Lateral Net. Upper Link 707900049RH Lateral Net. Upper Link 707900049
-
938707900035 BuckleBuckle
-
1205707900036 Cup RetainerCup Retainer
-
1206707900062 Trim Glove BoxTrim Glove Box
-
1208707900041 Front Central Console FoamFront Central Console Foam
-
1209707900042 Rear Central Console FoamRear Central Console Foam
-
1210707900043 LH Upper Lateral Console FoamLH Upper Lateral Console Foam
-
1211707900044 LH Lower Lateral Console FoamLH Lower Lateral Console Foam
-
1212707900045 RH Lateral Console FoamRH Lateral Console Foam
-
1213707900048 Connector TubeConnector Tube
-
1216293200093 Neoprene SealNeoprene Seal
-
1217293200093 Neoprene SealNeoprene Seal
-
1218293250240 Neoprene SealNeoprene Seal
-
1219707900055 RH Lateral Console FoamRH Lateral Console Foam
-
1220707900056 RH Lateral Console FoamRH Lateral Console Foam
-
1226707900066 Gauge SupportGauge Support
-
1227707900069 Under Cover SeatUnder Cover Seat
-
1228707900070 Lever IndicatorLever Indicator
-
1229707900070 Lever IndicatorLever Indicator
-
1230707900095 LH Rear DeflectorLH Rear Deflector
-
1230707900092 LH Rear DeflectorLH Rear Deflector
-
1231707900094 RH Rear DeflectorRH Rear Deflector
-
1233707900125 DeflectorDeflector
-
1234707900109 Protection Trim. LTDProtection Trim. LTD
-
1236707900134 LH Front FloorLH Front Floor
-
1237707900137 LH Lateral Console. LTDLH Lateral Console. LTD
-
1238732610072 Push Nut. LTDPush Nut. LTD
