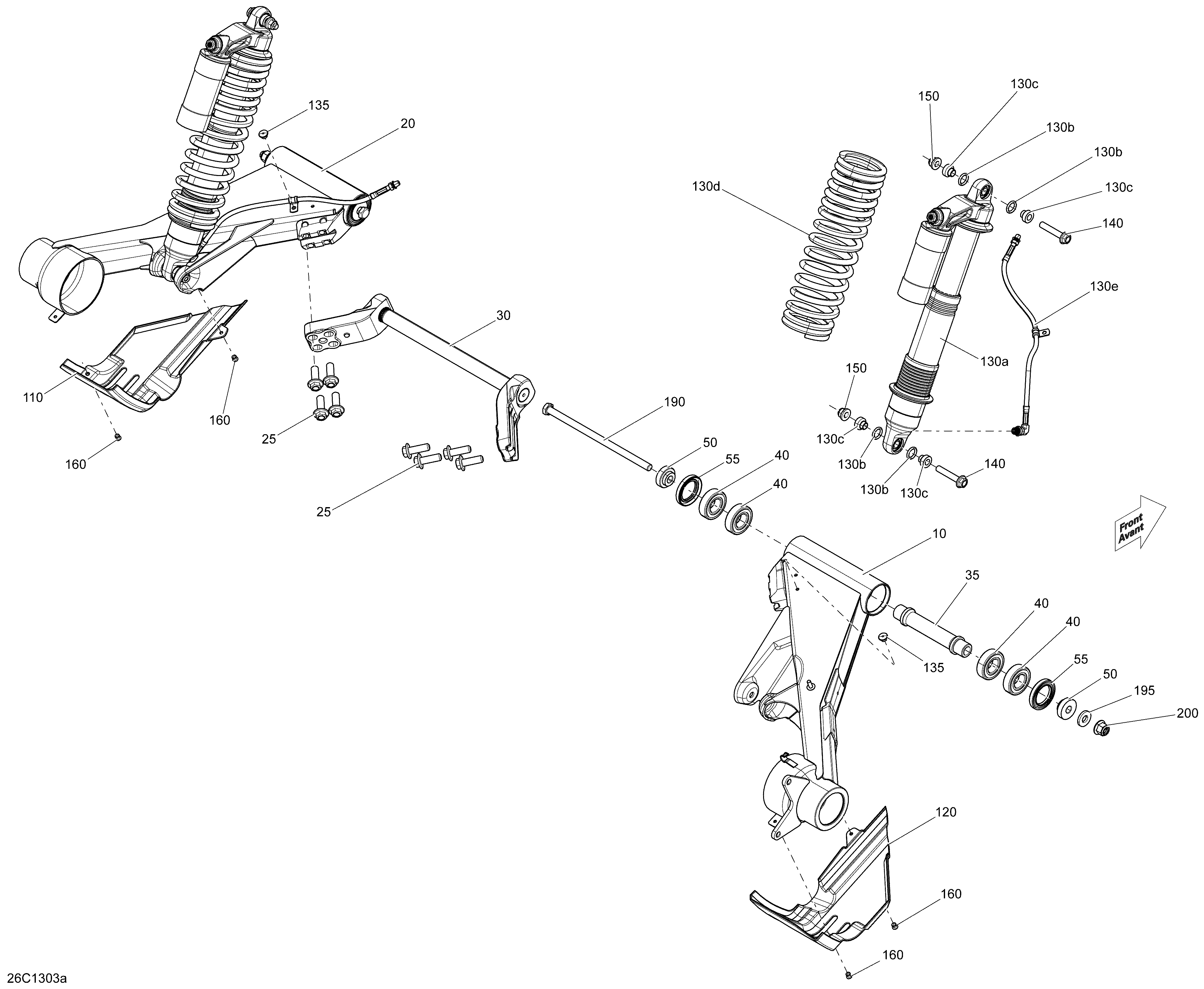

08- Rear Suspension для BRP Commander LTD 1000 - 2013
-
№АртикулНазвание
-
10706001318 RH Swing ArmRH Swing Arm
-
20706001319 LH Swing ArmLH Swing Arm
-
25207523544 Hex. Flanged Screw M12 X 35, Scotch GripHex. Flanged Screw M12 X 35, Scotch Grip
-
30706001322 Sway BarSway Bar
-
35706000616 Pivot BushingPivot Bushing
-
40293350055 Ball BearingBall Bearing
-
50706000629 SpacerSpacer
-
55293200094 SealSeal
-
110706000630 LH Joint ProtectorLH Joint Protector
-
120706000814 RH Joint ProtectorRH Joint Protector
-
130a706001039 Rear Shock Ass'y. Inclus 130a to 130cRear Shock Ass'y. Inclus 130a to 130c
-
130b715500360 O-Ring BushingO-Ring Bushing
-
130c715500361 Interior BushingInterior Bushing
-
130d706001040 Rear Spring, Yellow-WhiteRear Spring, Yellow-White
-
130e706001118 Rear Hose Ass'yRear Hose Ass'y
-
135390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
140207605544 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
-
150233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
160293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
190250000515 Hex. Cap Screw M12 X 241Hex. Cap Screw M12 X 241
-
195250200120 Flat Washer M12Flat Washer M12
-
200233221416 Elastic Flange Nut M12Elastic Flange Nut M12
