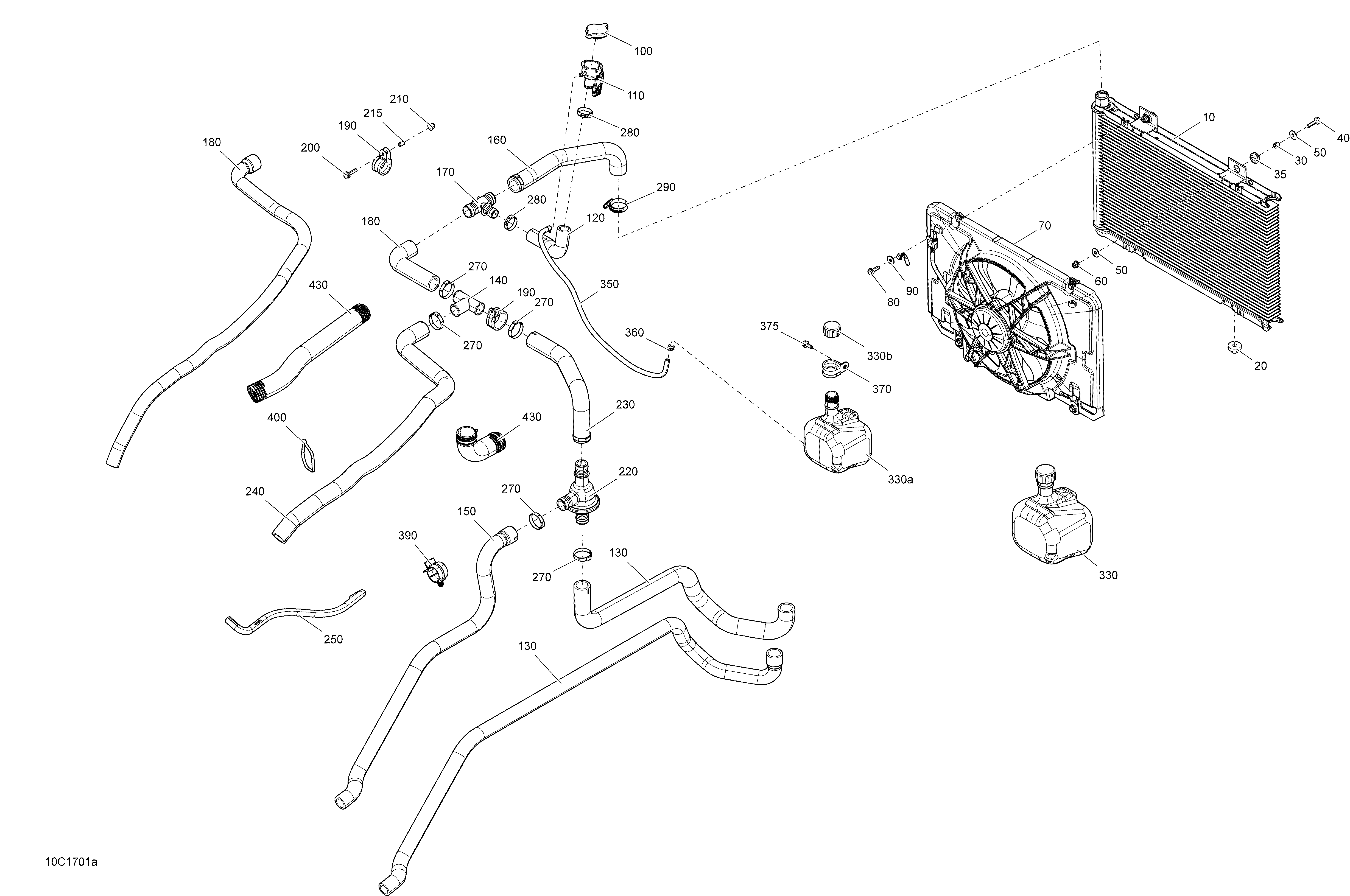

01- Cooling System - Commander для BRP Commander - Commander Max - 2017
-
№АртикулНазвание
-
10709200395 RadiatorRadiator
-
20709200285 GrommetGrommet
-
30293900105 BushingBushing
-
35293720053 GrommetGrommet
-
40207662534 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
50250200082 Flat WasherFlat Washer
-
60233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
70709200566 Fan Ass'yFan Ass'y
-
80207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
90234062410 Flat Washer 6 mmFlat Washer 6 mm
-
100709200207 Pressure CapPressure Cap
-
110709200179 Filler NeckFiller Neck
-
120709200264 Filler Neck HoseFiller Neck Hose
-
130709200355 Radiator Inlet Hose. 800 EngineRadiator Inlet Hose. 800 Engine
-
130709200513 Radiator Inlet Hose. 1000 EngineRadiator Inlet Hose. 1000 Engine
-
140509000219 T-Fitting. 1000 EngineT-Fitting. 1000 Engine
-
150709200441 Pump Hose. 1000 EnginePump Hose. 1000 Engine
-
160709200265 Radiator Outlet HoseRadiator Outlet Hose
-
170509000372 T-FittingT-Fitting
-
180709200295 Intermediate Hose. 800 EngineIntermediate Hose. 800 Engine
-
180709200380 Intermediate Hose. 1000 EngineIntermediate Hose. 1000 Engine
-
190293650218 Hose Retainer. 1000 EngineHose Retainer. 1000 Engine
-
190709200036 Hose Anchor. 800 EngineHose Anchor. 800 Engine
-
200207662534 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
210233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
215707000065 Spacer. 800 EngineSpacer. 800 Engine
-
220709200406 Thermostat. 1000 EngineThermostat. 1000 Engine
-
230709200447 Hose. 1000 EngineHose. 1000 Engine
-
240709200382 Intermediate Hose. 1000 EngineIntermediate Hose. 1000 Engine
-
250709200646 HoseHose
-
270509000162 Gear ClampGear Clamp
-
280293650099 Crimp ClampCrimp Clamp
-
290293650098 Norma Gear ClampNorma Gear Clamp
-
330709200624 Coolant Tank Ass'y. Includes 330 to 330bCoolant Tank Ass'y. Includes 330 to 330b
-
330a709200504 Coolant TankCoolant Tank
-
330b709200587 Tank CapTank Cap
-
350415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
360414554800 Spring ClampSpring Clamp
-
370709200036 Hose AnchorHose Anchor
-
375207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
390275500590 RetainerRetainer
-
400293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
430515176260 Tubing 35 mmTubing 35 mm
