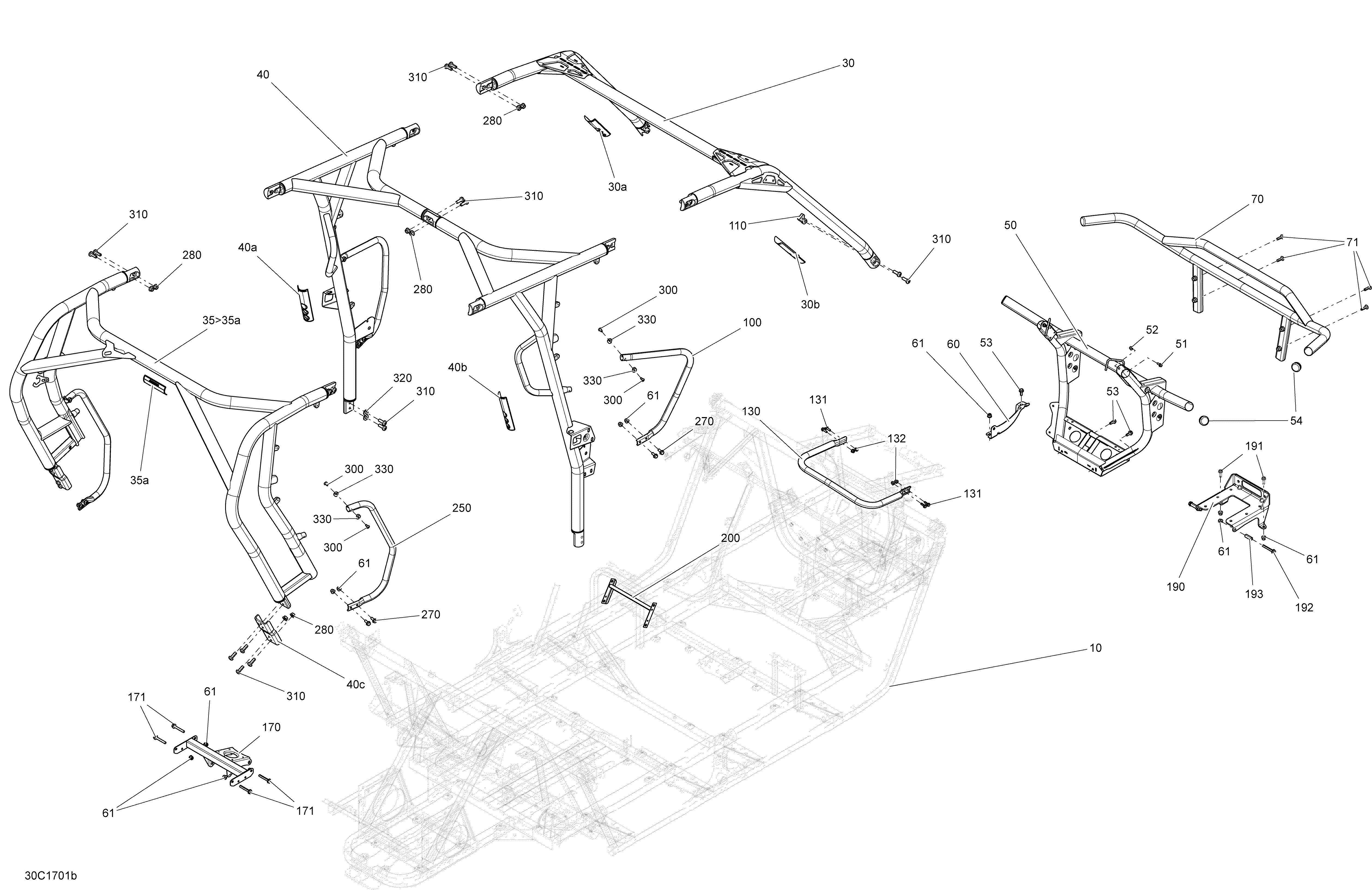

09- Frame - Commander MAX для BRP Commander - Commander Max - 2017
-
№АртикулНазвание
-
10705204784 Black Frame MaxBlack Frame Max
-
30715003420 Black Cage Kit. Includes 30 to 30bBlack Cage Kit. Includes 30 to 30b
-
30a704903679 Warning LabelWarning Label
-
30b704903680 Warning LabelWarning Label
-
35>35a715003420 Black Cage Kit. Includes 35 to 35aBlack Cage Kit. Includes 35 to 35a
-
35a704903492 Warning LabelWarning Label
-
40715003424 Black Center Safety Cage Kit. Includes 40 to 40cBlack Center Safety Cage Kit. Includes 40 to 40c
-
40a704903679 Warning LabelWarning Label
-
40b704903680 Warning LabelWarning Label
-
40c705203514 Rear Hand MountingRear Hand Mounting
-
50705202995 Black Front BumperBlack Front Bumper
-
51207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
52233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
53207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
54705202455 CapCap
-
60705201721 Front Differential SupportFront Differential Support
-
61233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
70715000958 Black Front Bumper. Except Package STD, DPSBlack Front Bumper. Except Package STD, DPS
-
71250000745 Torx Truss M/S M8 X30. Package XT, XTP, LTDTorx Truss M/S M8 X30. Package XT, XTP, LTD
-
100705203642 Black RH Front Side Protector TubeBlack RH Front Side Protector Tube
-
100705203643 Black LH Front Side Protector TubeBlack LH Front Side Protector Tube
-
110705203415 Binding BlockBinding Block
-
130705203332 Black HandleBlack Handle
-
131207662046 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
132233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
170705203538 Differential HolderDifferential Holder
-
171207685544 Hex. Flanged Screw M8 X 55Hex. Flanged Screw M8 X 55
-
190715000704 Winch Plate. Except Package STD, DPSWinch Plate. Except Package STD, DPS
-
191207682534 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
192207686044 Hex. Flanged Screw M8 x 60. Except Package STD, DPSHex. Flanged Screw M8 x 60. Except Package STD, DPS
-
193705202499 Bushing. Except Package STD, DPSBushing. Except Package STD, DPS
-
200705203717 Reinforcement PanelReinforcement Panel
-
250705203649 Black LH Rear Side Protector TubeBlack LH Rear Side Protector Tube
-
250705203652 Black RH Rear Side Protector TubeBlack RH Rear Side Protector Tube
-
270207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
280233101464 Hex. Elastic Flange Nut , M10 X 1.5Hex. Elastic Flange Nut , M10 X 1.5
-
300250000789 Torx Truss M6X14Torx Truss M6X14
-
310250000848 Screw Pan M10 X 30Screw Pan M10 X 30
-
320250200154 WasherWasher
-
330705202223 Offset WasherOffset Washer
