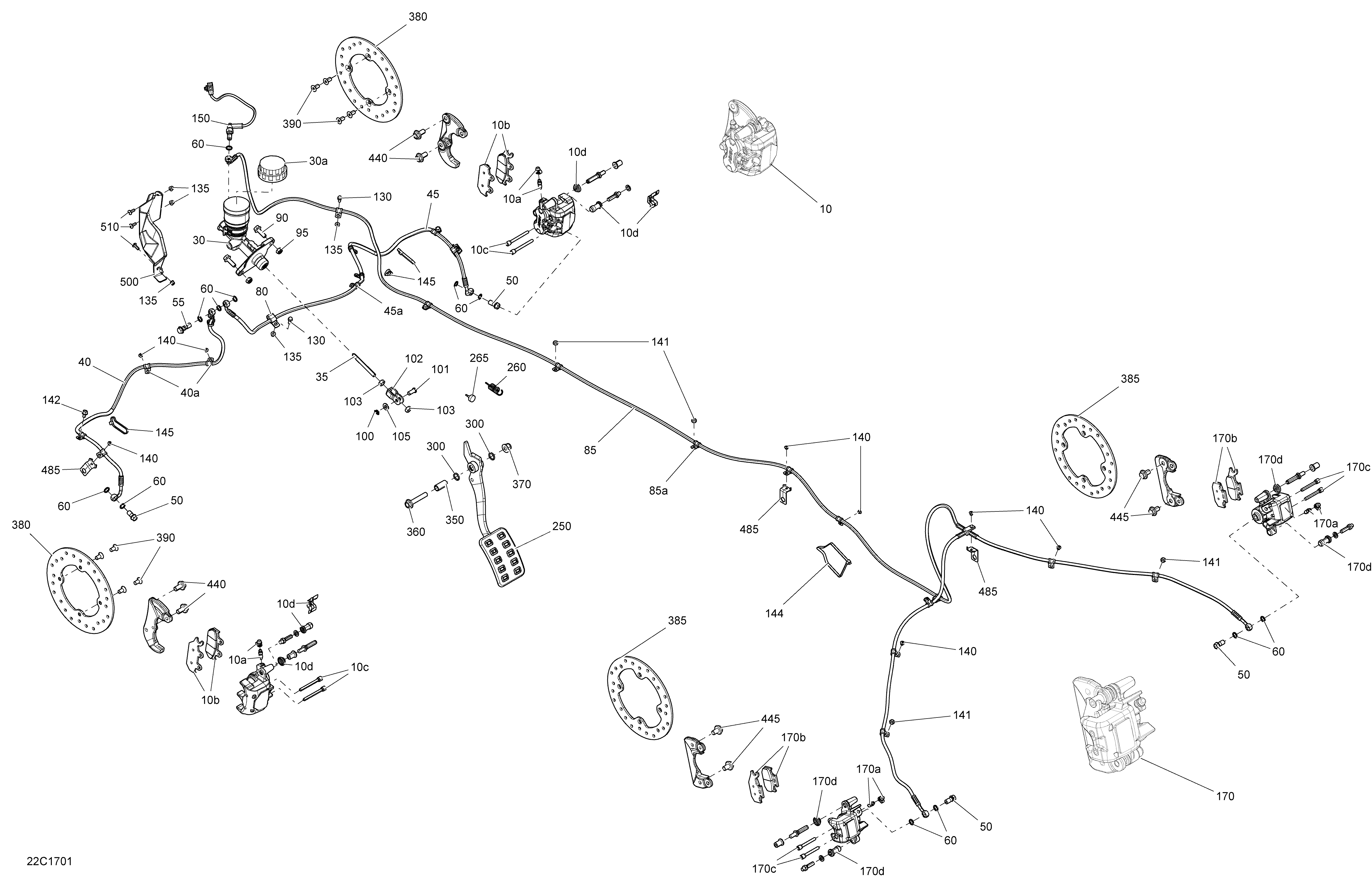

06- Brakes - All Models для BRP Commander - Commander Max - 2017
-
№АртикулНазвание
-
10705600678 RH Caliper Ass'y. Commander. Includes 10 to 10dRH Caliper Ass'y. Commander. Includes 10 to 10d
-
10705601129 RH Caliper Ass'y. Commander Max. Includes 10 to 10dRH Caliper Ass'y. Commander Max. Includes 10 to 10d
-
10705600679 LH Caliper Ass'y. Commander. Includes 10 to 10dLH Caliper Ass'y. Commander. Includes 10 to 10d
-
10705601128 LH Caliper Ass'y. Commander Max. Includes 10 to 10dLH Caliper Ass'y. Commander Max. Includes 10 to 10d
-
10a705600080 Bleeding ScrewBleeding Screw
-
10b715500336 RH Brake Pad Kit. CommanderRH Brake Pad Kit. Commander
-
10b705601150 RH Brake Pad Kit. Commander MaxRH Brake Pad Kit. Commander Max
-
10b715500335 LH Brake Pad Kit. CommanderLH Brake Pad Kit. Commander
-
10b705601149 LH Brake Pad Kit. Commander MaxLH Brake Pad Kit. Commander Max
-
10c715500337 Pin Kit. CommanderPin Kit. Commander
-
10c705601151 Hanger Pin Kit. Commander MaxHanger Pin Kit. Commander Max
-
10d715500383 Spring Boot Bolt Kit. CommanderSpring Boot Bolt Kit. Commander
-
10d715500385 Spring And Bolt Kit. Commander MaxSpring And Bolt Kit. Commander Max
-
30705601505 Master Cylinder Ass'y. Includes 30 to 30cMaster Cylinder Ass'y. Includes 30 to 30c
-
30a715500332 Diaphragm Cap KitDiaphragm Cap Kit
-
35705600833 Master Cylinder RodMaster Cylinder Rod
-
35705600833 Master Cylinder RodMaster Cylinder Rod
-
40705600943 LH Front Hose. Commander. Includes 40 to 40aLH Front Hose. Commander. Includes 40 to 40a
-
40705601194 LH Front Hose. Commander Max. Includes 40 to 40aLH Front Hose. Commander Max. Includes 40 to 40a
-
40a715900250 Hose ClipHose Clip
-
45705601195 RH Front Flexible Hose Ass'y. Commander Max. Includes 45 to 45aRH Front Flexible Hose Ass'y. Commander Max. Includes 45 to 45a
-
45705601265 RH Front Hose. Commander. Includes 45 to 45aRH Front Hose. Commander. Includes 45 to 45a
-
45a705600459 ClampClamp
-
50705600609 Banjo BoltBanjo Bolt
-
55705600958 Banjo BoltBanjo Bolt
-
60705600310 Copper WasherCopper Washer
-
80293650220 ClampClamp
-
85705601173 Rear Flexible Hose Ass'y. Commander Max. Includes 85 to 85aRear Flexible Hose Ass'y. Commander Max. Includes 85 to 85a
-
85a715900250 Hose ClipHose Clip
-
85705601391 Rear Flexible Hose Ass'y. CommanderRear Flexible Hose Ass'y. Commander
-
85a715900250 Hose ClipHose Clip
-
90207682534 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
95232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
100371800700 Cotter PinCotter Pin
-
101250400058 PinPin
-
102705601142 YokeYoke
-
103232081414 Hex. Nut M8Hex. Nut M8
-
105234081430 Flat Washer M8Flat Washer M8
-
130210251650 Hex. Forming Screw M5 X 16Hex. Forming Screw M5 X 16
-
135233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
140390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
141232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
142210261040 Hex. Flanged Screw M6 X 10Hex. Flanged Screw M6 X 10
-
144293750008 Tie-Rap 350 mm. CommanderTie-Rap 350 mm. Commander
-
145414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
145414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
150705601250 Brake SwitchBrake Switch
-
170705600872 Rear Caliper. Commander. Includes 170 to 170dRear Caliper. Commander. Includes 170 to 170d
-
170705601174 RH Rear Caliper Ass'y. Commander Max. Includes 170 to 170dRH Rear Caliper Ass'y. Commander Max. Includes 170 to 170d
-
170705601175 LH Rear Caliper Ass'y. Commander Max. Includes 170 to 170dLH Rear Caliper Ass'y. Commander Max. Includes 170 to 170d
-
170a705600080 Bleeding ScrewBleeding Screw
-
170b715500336 Brake Pad Kit. CommanderBrake Pad Kit. Commander
-
170b705601147 RH Brake Pad Kit. Commander MaxRH Brake Pad Kit. Commander Max
-
170b705600398 LH Brake Pad Kit. Commander MaxLH Brake Pad Kit. Commander Max
-
170c715500337 Pin Kit. CommanderPin Kit. Commander
-
170c705600081 Pin Kit. Commander MaxPin Kit. Commander Max
-
170d715500383 Spring Boot Bolt Kit. CommanderSpring Boot Bolt Kit. Commander
-
170d715500384 Spring, Protector And Bolt Kit. Commander MaxSpring, Protector And Bolt Kit. Commander Max
-
250705600724 Brake PedalBrake Pedal
-
260705600792 Brake Pedal SpringBrake Pedal Spring
-
265708000759 Rubber StopperRubber Stopper
-
300293300144 O-RingO-Ring
-
350705600815 Inner SpacerInner Spacer
-
360207605544 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
-
370233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
380705600684 Brake Disc. Commander Except Package XTPBrake Disc. Commander Except Package XTP
-
380705600999 Disc Brake. Commander Package XTPDisc Brake. Commander Package XTP
-
380705601178 Disc Brake. Commander MaxDisc Brake. Commander Max
-
385705600684 Brake Disc. Commander MaxBrake Disc. Commander Max
-
390235381646 Torx Screw M8 X 16, Scotch Grip. Commander Package XTPTorx Screw M8 X 16, Scotch Grip. Commander Package XTP
-
390235381646 Torx Screw M8 X 16, Scotch Grip. Commander MaxTorx Screw M8 X 16, Scotch Grip. Commander Max
-
440250000601 Hex. Flanged Screw M10 X 20, Scotch GripHex. Flanged Screw M10 X 20, Scotch Grip
-
445250000060 Flanged Screw M10 X 16, Scotch GripFlanged Screw M10 X 16, Scotch Grip
-
485705601337 Bracket. Commander MaxBracket. Commander Max
-
485705601337 BracketBracket
-
485705601337 BracketBracket
-
500705600917 LH Front DeflectorLH Front Deflector
-
510250000742 Torx Screw M5 X 14Torx Screw M5 X 14
