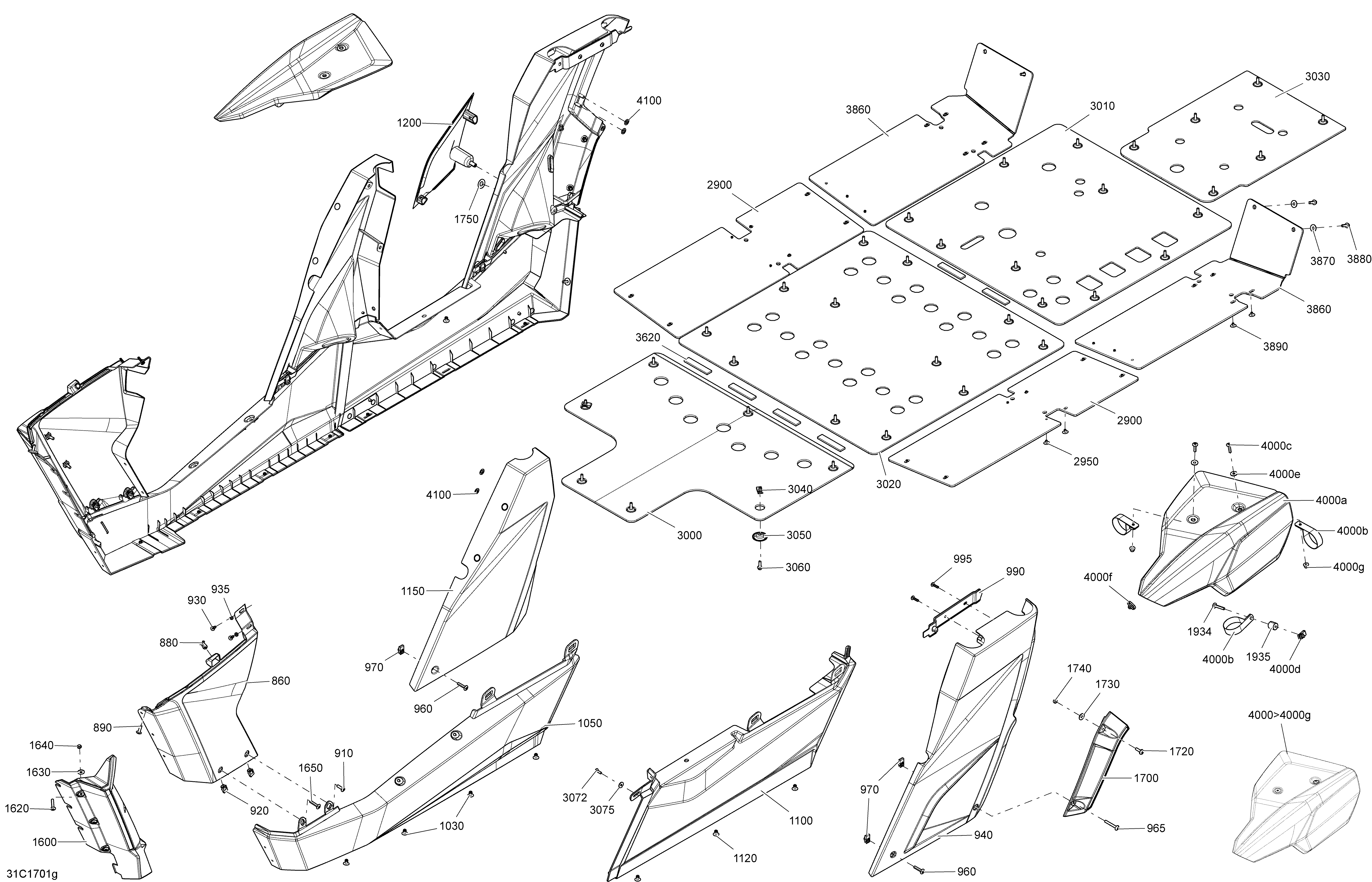

09- Body And Accessories - Max, Central, All Models для BRP Commander - Commander Max - 2017
-
№АртикулНазвание
-
860705008349 Brush Aluminum LH Front Lateral Pannel. Aluminum ModelBrush Aluminum LH Front Lateral Pannel. Aluminum Model
-
860705008351 Brush Aluminum RH Front Lateral Pannel. Aluminum ModelBrush Aluminum RH Front Lateral Pannel. Aluminum Model
-
860705009590 Camo LH Front Lateral Panel. Camo ModelCamo LH Front Lateral Panel. Camo Model
-
860705009591 Camo RH Front Lateral Panel. Camo ModelCamo RH Front Lateral Panel. Camo Model
-
860705010701 Midnight Blue LH Front Lateral Panel. Blue ModelMidnight Blue LH Front Lateral Panel. Blue Model
-
860705010702 Midnight Blue RH Front Lateral Panel. Blue ModelMidnight Blue RH Front Lateral Panel. Blue Model
-
860705007851 Viper Red LH Front Lateral Pannel. Red ModelViper Red LH Front Lateral Pannel. Red Model
-
860705007852 Viper Red RH Front Lateral Pannel. Red ModelViper Red RH Front Lateral Pannel. Red Model
-
880293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
890250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
910250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
910250000722 Torx Screw M6 X 20. Package DPSTorx Screw M6 X 20. Package DPS
-
920250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
930250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
935234051410 Flat Washer M5Flat Washer M5
-
940705008354 Brush Aluminum LH Rear Lateral Panel. Aluminum ModelBrush Aluminum LH Rear Lateral Panel. Aluminum Model
-
940705008356 Brush Aluminum RH Rear Lateral Pannel. Aluminum ModelBrush Aluminum RH Rear Lateral Pannel. Aluminum Model
-
940705009596 Camo LH Rear Lateral Panel. Camo ModelCamo LH Rear Lateral Panel. Camo Model
-
940705009602 Camo RH Rear Lateral Panel. Camo ModelCamo RH Rear Lateral Panel. Camo Model
-
940705010703 Midnight Blue LH Rear Lateral Panel. Blue ModelMidnight Blue LH Rear Lateral Panel. Blue Model
-
940705010727 Midnight Blue RH Rear Lateral Panel. Blue ModelMidnight Blue RH Rear Lateral Panel. Blue Model
-
940705009605 Viper Red RH Rear Lateral Panel. Red ModelViper Red RH Rear Lateral Panel. Red Model
-
940705007874 Viper Red LH Rear Lateral Panel. Red ModelViper Red LH Rear Lateral Panel. Red Model
-
960250000843 Torx Truss Screw M6 X 30Torx Truss Screw M6 X 30
-
965250000748 Torx Screw M6 X 45Torx Screw M6 X 45
-
970250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
990705007916 Support Skid PlateSupport Skid Plate
-
995250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
1030293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1050705005423 Black LH Lower Panel. Package DPSBlack LH Lower Panel. Package DPS
-
1050705005424 Black RH Lower Panel. Package DPSBlack RH Lower Panel. Package DPS
-
1050705007035 Black LH Lower Panel. Package LTDBlack LH Lower Panel. Package LTD
-
1050705007036 Black RH Lower Panel. Package LTDBlack RH Lower Panel. Package LTD
-
1050705007035 Black LH Lower Panel. Package XTBlack LH Lower Panel. Package XT
-
1050705007036 Black RH Lower Panel. Package XTBlack RH Lower Panel. Package XT
-
1100705005425 Black LH Rear Lower PanelBlack LH Rear Lower Panel
-
1100705005426 Black RH Rear Lower PanelBlack RH Rear Lower Panel
-
1120293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1150705008361 Brush Aluminum LH Center Cage Panel. Aluminum ModelBrush Aluminum LH Center Cage Panel. Aluminum Model
-
1150705008364 Brush Aluminum RH Center Cage Panel. Aluminum ModelBrush Aluminum RH Center Cage Panel. Aluminum Model
-
1150705009611 Camo LH Center Cage Panel. Camo ModelCamo LH Center Cage Panel. Camo Model
-
1150705009614 Camo RH Center Cage Panel. Camo ModelCamo RH Center Cage Panel. Camo Model
-
1150705010730 Midnight Blue LH Center Cage Panel. Blue ModelMidnight Blue LH Center Cage Panel. Blue Model
-
1150705010731 Midnight Blue RH Center Cage Panel. Blue ModelMidnight Blue RH Center Cage Panel. Blue Model
-
1150705009607 Red LH Center Cage Panel. Red ModelRed LH Center Cage Panel. Red Model
-
1150705009609 Red RH Center Cage Panel. Red ModelRed RH Center Cage Panel. Red Model
-
1200705008367 Brush Aluminum RH Panel Cover. Aluminum ModelBrush Aluminum RH Panel Cover. Aluminum Model
-
1200705009617 Red RH Panel Cover. Red ModelRed RH Panel Cover. Red Model
-
1200705009619 Camo RH Panel Cover. Camo ModelCamo RH Panel Cover. Camo Model
-
1200705010729 Midnight Blue RH Panel Cover. Blue ModelMidnight Blue RH Panel Cover. Blue Model
-
1600705008668 LH Lower Black Mudguard. Package XT, LTDLH Lower Black Mudguard. Package XT, LTD
-
1600705008669 RH Lower Black Mudguard. Package XT, LTDRH Lower Black Mudguard. Package XT, LTD
-
1620250000842 Torx Screw M6 X 30 Stainless. Package XT, LTDTorx Screw M6 X 30 Stainless. Package XT, LTD
-
1630234062670 Flat Washer, Stainless. Package XT, LTDFlat Washer, Stainless. Package XT, LTD
-
1640232561434 Elastic Stop Nut M6. Package XT, LTDElastic Stop Nut M6. Package XT, LTD
-
1650250000842 Torx Screw M6 X 30 Stainless. Package XT, LTDTorx Screw M6 X 30 Stainless. Package XT, LTD
-
1700705008670 LH Rear Lower Black Mudguard. Package XT, LTDLH Rear Lower Black Mudguard. Package XT, LTD
-
1700705008672 RH Rear Lower Black Mudguard. Package XT, LTDRH Rear Lower Black Mudguard. Package XT, LTD
-
1720250000712 Torx Screw M6 X 20. Package XT, LTDTorx Screw M6 X 20. Package XT, LTD
-
1730234062670 Flat Washer, Stainless. Package XT, LTDFlat Washer, Stainless. Package XT, LTD
-
1740232561434 Elastic Stop Nut M6. Package XT, LTDElastic Stop Nut M6. Package XT, LTD
-
1750250200086 Flat Washer. Package XT, LTDFlat Washer. Package XT, LTD
-
1934250000415 Torx Screw NylonTorx Screw Nylon
-
1935705009217 SpacerSpacer
-
2900705008421 Side Protector PlateSide Protector Plate
-
2950293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
3000705007055 Middle Protector PlateMiddle Protector Plate
-
3010705007056 Rear Protector PlateRear Protector Plate
-
3020705009447 Skid PlateSkid Plate
-
3030705007227 Rear Protector PlateRear Protector Plate
-
3040250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
3050705007171 CupCup
-
3060210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
3072250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
3075250200025 Washer M5Washer M5
-
3620291001932 PadPad
-
3860705007038 Lateral Skid PlateLateral Skid Plate
-
3870250200097 Flat WasherFlat Washer
-
3880210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
3890293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
4000>4000g705008450 Black Cage Cover Kit. Camo Model Include 4000a>4000gBlack Cage Cover Kit. Camo Model Include 4000a>4000g
-
4000>4000g705008450 Black Cage Cover Kit. Aluminum Model Include 4000a>4000gBlack Cage Cover Kit. Aluminum Model Include 4000a>4000g
-
4000>4000g705010737 Midnight Blue Cage Cover Kit. Blue Model Include 4000a>4000gMidnight Blue Cage Cover Kit. Blue Model Include 4000a>4000g
-
4000a705008452 Black LH Top Center Cage Cover. Camo ModelBlack LH Top Center Cage Cover. Camo Model
-
4000a705008453 Black RH Top Center Cage Cover. Camo ModelBlack RH Top Center Cage Cover. Camo Model
-
4000a705008452 Black LH Top Center Cage Cover. Aluminum ModelBlack LH Top Center Cage Cover. Aluminum Model
-
4000a705008453 Black RH Top Center Cage Cover. Aluminum ModelBlack RH Top Center Cage Cover. Aluminum Model
-
4000b705005626 ''P'' Bracket, 2'' Dia.''P'' Bracket, 2'' Dia.
-
4000c207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
4000d250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
4000e234062670 Flat Washer, StainlessFlat Washer, Stainless
-
4000f293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
4000g233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
4100250100031 Push NutPush Nut
