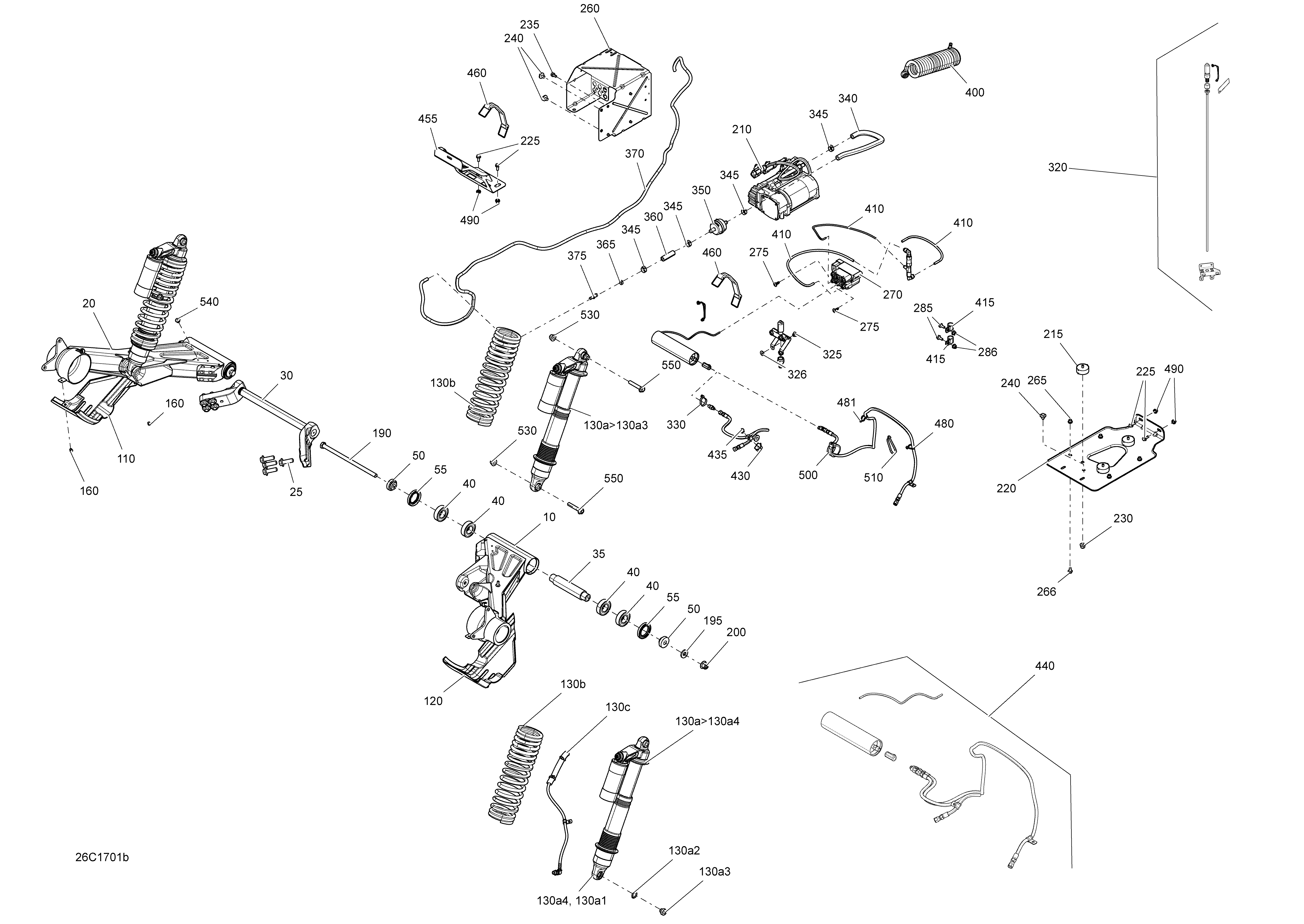

08- Rear Suspension - Package LTD для BRP Commander - Commander Max - 2017
-
№АртикулНазвание
-
10706001513 RH Swing ArmRH Swing Arm
-
20706001514 LH Swing ArmLH Swing Arm
-
25207523544 Hex. Flanged Screw M12 X 35, Scotch GripHex. Flanged Screw M12 X 35, Scotch Grip
-
30706001500 Sway Bar Ass'y. CommanderSway Bar Ass'y. Commander
-
30706001718 Bar Sway. Commander MaxBar Sway. Commander Max
-
35706001529 BushingBushing
-
40293350055 Ball BearingBall Bearing
-
50706001350 SpacerSpacer
-
55293200094 SealSeal
-
110706000630 LH Joint ProtectorLH Joint Protector
-
120706000814 RH Joint ProtectorRH Joint Protector
-
130a>130a3706001039 Rear Shock Ass'y. Commander. Includes 130a to 130a3Rear Shock Ass'y. Commander. Includes 130a to 130a3
-
130a>130a4706002610 Rear Shock Ass'y. Commander Max. Includes 130a to 130a4Rear Shock Ass'y. Commander Max. Includes 130a to 130a4
-
130a1715900251 Spherical Bearing. Commander MaxSpherical Bearing. Commander Max
-
130a2715500360 O-Ring Bushing. CommanderO-Ring Bushing. Commander
-
130a2715900209 O-Ring Bushing. Commander MaxO-Ring Bushing. Commander Max
-
130a3715500361 Interior Bushing. CommanderInterior Bushing. Commander
-
130a3715900210 Interior Bushing. Commander MaxInterior Bushing. Commander Max
-
130a4715900252 Retaining Ring. Commander MaxRetaining Ring. Commander Max
-
130b706001040 Black Rear Spring. CommanderBlack Rear Spring. Commander
-
130b706002580 Black Rear Spring. Commander MaxBlack Rear Spring. Commander Max
-
130c706002299 Rear Hose Ass'y. CommanderRear Hose Ass'y. Commander
-
160293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
190250000515 Hex. Cap Screw M12 X 241Hex. Cap Screw M12 X 241
-
195250200120 Flat Washer M12Flat Washer M12
-
200233221416 Elastic Flange Nut M12Elastic Flange Nut M12
-
210706001100 Compressor. CommanderCompressor. Commander
-
215706001127 Rubber Mount. CommanderRubber Mount. Commander
-
220706001121 Lower Support. CommanderLower Support. Commander
-
225207561644 Hex. Flanged Screw M6 X 16, Scotch Grip. CommanderHex. Flanged Screw M6 X 16, Scotch Grip. Commander
-
230233281414 Hex. Flanged Elastic Nut M8. CommanderHex. Flanged Elastic Nut M8. Commander
-
235210261250 Hex. Flanged Screw M6 X 12. CommanderHex. Flanged Screw M6 X 12. Commander
-
240293730018 Mount Dart. CommanderMount Dart. Commander
-
260706001120 Upper Support. CommanderUpper Support. Commander
-
265293450274 Insert. CommanderInsert. Commander
-
266207561244 Hex. Flanged Screw M6 X 12, Scotch Grip. CommanderHex. Flanged Screw M6 X 12, Scotch Grip. Commander
-
270706001104 Solenoid Valve. CommanderSolenoid Valve. Commander
-
275250000546 Oval Head Torx Screw K60 X 16. CommanderOval Head Torx Screw K60 X 16. Commander
-
285207661644 Hex. Flanged Screw M6 X 16. CommanderHex. Flanged Screw M6 X 16. Commander
-
286233261414 Hex. Flanged Elastic Nut M6. CommanderHex. Flanged Elastic Nut M6. Commander
-
320706001873 Bracket Ass'y. CommanderBracket Ass'y. Commander
-
325390406500 Pop Rivet 3/16''. CommanderPop Rivet 3/16''. Commander
-
326517124300 Washer. CommanderWasher. Commander
-
330414115200 Tie-Rap 180 mm. CommanderTie-Rap 180 mm. Commander
-
340415080300 Fuel Line. CommanderFuel Line. Commander
-
345293650053 Crimp Clamp. CommanderCrimp Clamp. Commander
-
350706001141 Air Filter. CommanderAir Filter. Commander
-
360415080300 Fuel Line. CommanderFuel Line. Commander
-
365293650195 Clamp, Oetiker. CommanderClamp, Oetiker. Commander
-
370415080200 Hose, Polyurethane. CommanderHose, Polyurethane. Commander
-
375293710035 Straight Fitting. CommanderStraight Fitting. Commander
-
400706000808 Auxiliary Hose. CommanderAuxiliary Hose. Commander
-
410706001144 Pressure Distributor Ass'y. CommanderPressure Distributor Ass'y. Commander
-
415705600040 Open Clamp. CommanderOpen Clamp. Commander
-
430705601337 Bracket. CommanderBracket. Commander
-
435390406500 Pop Rivet 3/16''. CommanderPop Rivet 3/16''. Commander
-
440706001751 Rear Shock Distributor. CommanderRear Shock Distributor. Commander
-
455706201524 Tank Bracket. CommanderTank Bracket. Commander
-
460515176044 Battery Strap. CommanderBattery Strap. Commander
-
480293750002 Tie-Rap 142 mm. CommanderTie-Rap 142 mm. Commander
-
481293750002 Tie-Rap 142 mm. CommanderTie-Rap 142 mm. Commander
-
490293450274 Insert. CommanderInsert. Commander
-
500293650218 Hose Retainer. CommanderHose Retainer. Commander
-
510414115200 Tie-Rap 180 mm. CommanderTie-Rap 180 mm. Commander
-
530233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
540390406500 Pop Rivet 3/16''. CommanderPop Rivet 3/16''. Commander
-
550207605546 Hex. Flanged Screw M10 X 55. CommanderHex. Flanged Screw M10 X 55. Commander
-
550207605587 Hex. Flanged Screw M10 X 55. Commander MaxHex. Flanged Screw M10 X 55. Commander Max
