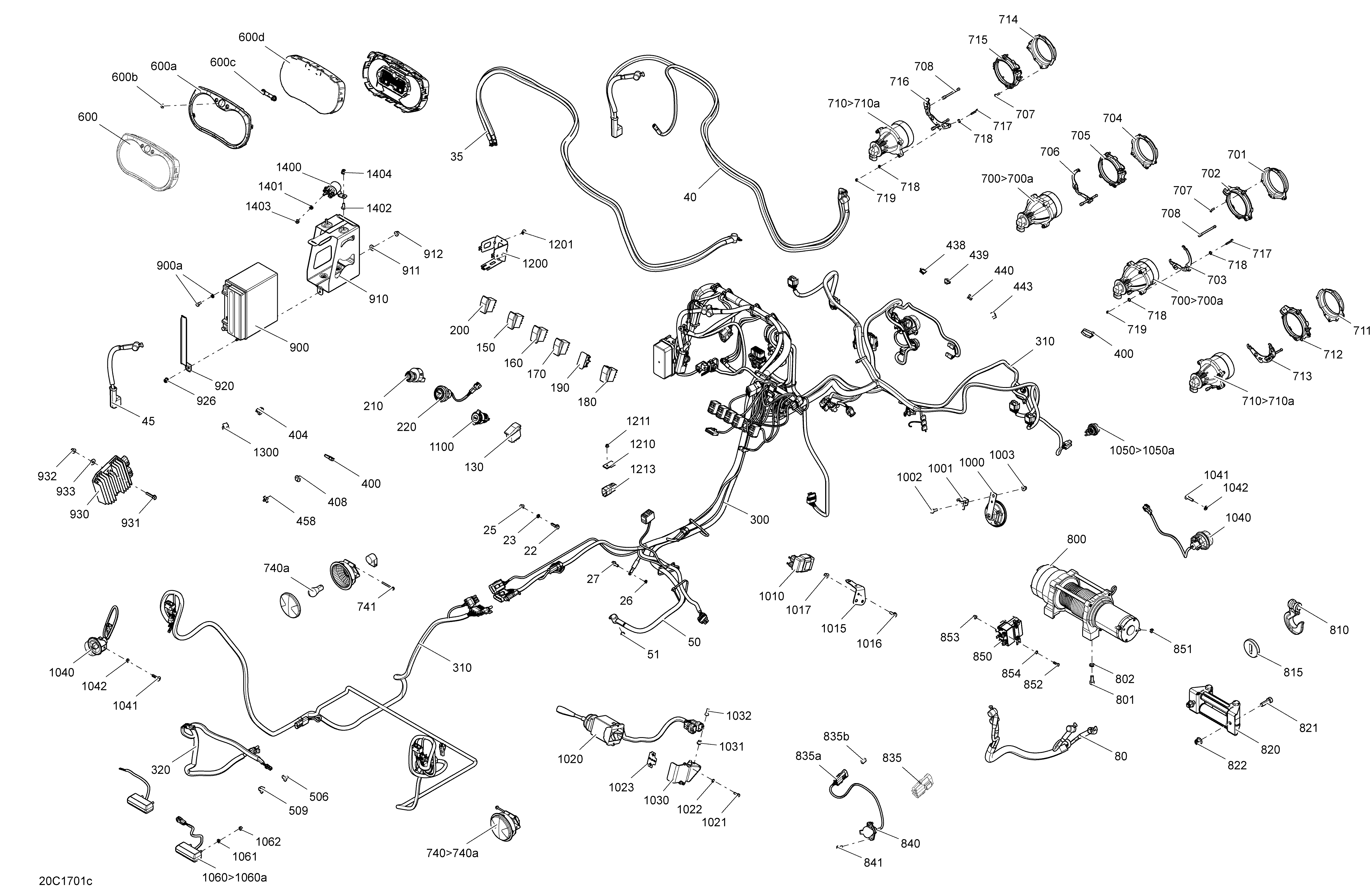

10- Electrical System - EUROPE для BRP Commander - Commander Max - 2017
-
№АртикулНазвание
-
22207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
23234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
25233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
26234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
27207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
35710004575 Winch Cable (-/+). Package DPSWinch Cable (-/+). Package DPS
-
40710005123 Winch Cable (-/+). Package XTWinch Cable (-/+). Package XT
-
45710004384 Positive Cable. Package DPSPositive Cable. Package DPS
-
50710004383 Positive CablePositive Cable
-
51232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
80710004387 Electrical Winch Cable. Package XTElectrical Winch Cable. Package XT
-
130710002053 Switch, Over RideSwitch, Over Ride
-
150710001737 SwitchSwitch
-
160710003541 Switch PPS SportSwitch PPS Sport
-
170710001781 Switch DPSSwitch DPS
-
180710002052 Switch. Package XTSwitch. Package XT
-
190710001999 Plug CarlingPlug Carling
-
200710002076 SwitchSwitch
-
210710004570 Ignition SwitchIgnition Switch
-
220710002594 Engine START ButtonEngine START Button
-
300710005230 Main Harness Ass'yMain Harness Ass'y
-
310710004682 Rear HarnessRear Harness
-
320710004683 Rear HarnessRear Harness
-
310710004336 Harness Ass'yHarness Ass'y
-
400293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
404414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
408293730040 Mount DartMount Dart
-
438414227300 ClipClip
-
439414227300 ClipClip
-
440414227300 ClipClip
-
443414227300 ClipClip
-
458293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
506293730040 Mount DartMount Dart
-
509293730040 Mount DartMount Dart
-
600710005087 Speedometer. Package DPS. Includes 600 to 600cSpeedometer. Package DPS. Includes 600 to 600c
-
600710005116 Speedometer Ass'y. Package XT. Includes 600 to 600dSpeedometer Ass'y. Package XT. Includes 600 to 600d
-
600a710001183 Trim Ring Ass'y. Package DPSTrim Ring Ass'y. Package DPS
-
600a415129348 Gauge Ring. Package XTGauge Ring. Package XT
-
600b704901270 BRP Logo, 13 mm. Package DPSBRP Logo, 13 mm. Package DPS
-
600c715900265 Button. Package DPSButton. Package DPS
-
600c415129355 Speedometer Button. Package XTSpeedometer Button. Package XT
-
600d415129349 Lens. Package XTLens. Package XT
-
700>700a710002524 Low Beam Ass'y. Includes 700 to 700aLow Beam Ass'y. Includes 700 to 700a
-
700a415129249 Halogen BulbHalogen Bulb
-
701710001081 RH Low Front HousingRH Low Front Housing
-
702710001082 RH Low Rear HousingRH Low Rear Housing
-
703710001094 RH Low Light SupportRH Low Light Support
-
704710001083 LH Low Front HousingLH Low Front Housing
-
705710001084 LH Low Rear HousingLH Low Rear Housing
-
706710001037 LH Low Light SupportLH Low Light Support
-
707250000723 Phillips Screw K40 X 16Phillips Screw K40 X 16
-
708710001147 Setting ScrewSetting Screw
-
710>710a710002525 High Beam Ass'y. Includes 710 to 710aHigh Beam Ass'y. Includes 710 to 710a
-
710a415129249 Halogen BulbHalogen Bulb
-
711710001085 RH High Front HousingRH High Front Housing
-
712710001086 RH High Rear HousingRH High Rear Housing
-
713710001115 RH High Light SupportRH High Light Support
-
714710001087 LH High Front HousingLH High Front Housing
-
715710001088 LH High Rear HousingLH High Rear Housing
-
716710001036 LH High Light SupportLH High Light Support
-
717207142544 Hex. Screw M4 X 25Hex. Screw M4 X 25
-
718234051410 Flat Washer M5Flat Washer M5
-
719232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
740>740a710001645 Tail Light. Includes 740 to 740aTail Light. Includes 740 to 740a
-
740a520000758 BulbBulb
-
741241154540 Hex. Screw K50 X 45Hex. Screw K50 X 45
-
800710005245 Winch. Package XTWinch. Package XT
-
801205082044 Socket Head Screw M8 X 20. Package XTSocket Head Screw M8 X 20. Package XT
-
802234181401 Lock Washer 8 mm. Package XTLock Washer 8 mm. Package XT
-
810715003523 Hook and Strap kit. Package XTHook and Strap kit. Package XT
-
815710005142 Winch Cable Stopper. Package XTWinch Cable Stopper. Package XT
-
820710004822 Winch Cable Guide. Package XTWinch Cable Guide. Package XT
-
821205003044 Socket Screw M10 x 30. Package XTSocket Screw M10 x 30. Package XT
-
822233201414 Hex. Flanged Elastic Nut M10. Package XTHex. Flanged Elastic Nut M10. Package XT
-
835710001059 Connector Ass'y. Package XT. Includes 835 to 835bConnector Ass'y. Package XT. Includes 835 to 835b
-
835a278000281 Female Terminal Housing, 3 Circuits. Package XTFemale Terminal Housing, 3 Circuits. Package XT
-
835b710000992 Clip. Package XTClip. Package XT
-
840710005258 Winch Connector. Package XTWinch Connector. Package XT
-
841250000720 Torx Screw K50 X 16. Package XTTorx Screw K50 X 16. Package XT
-
850710004824 Winch Solenoid. Package XTWinch Solenoid. Package XT
-
851232561434 Elastic Stop Nut M6. Package XTElastic Stop Nut M6. Package XT
-
852207151644 Hex. Screw M5 X 16. Package XTHex. Screw M5 X 16. Package XT
-
853233251494 Elastic Flanged Nut M5. Package XTElastic Flanged Nut M5. Package XT
-
854234051410 Flat Washer M5. Package XTFlat Washer M5. Package XT
-
900410301203 Battery Ass'y, 18 Amperes. Includes 900 to 900aBattery Ass'y, 18 Amperes. Includes 900 to 900a
-
900a250000282 Battery Bolt KitBattery Bolt Kit
-
910710003129 Battery SupportBattery Support
-
911234062410 Flat Washer 6 mmFlat Washer 6 mm
-
912233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
920710001916 Battery HolderBattery Holder
-
926233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
930710001191 Voltage RegulatorVoltage Regulator
-
931207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
932233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
933234062670 Flat Washer, StainlessFlat Washer, Stainless
-
1000710004791 HornHorn
-
1001709200284 SupportSupport
-
1002207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
1003233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
1010710003239 Flasher UnitFlasher Unit
-
1015710002408 SupportSupport
-
1016207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
1017233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
1020710001721 Turn SignalTurn Signal
-
1021210251650 Hex. Forming Screw M5 X 16Hex. Forming Screw M5 X 16
-
1022234151401 Lock Washer 5 mmLock Washer 5 mm
-
1023704902614 Flasher DecalFlasher Decal
-
1030709400810 Flasher Arm SupportFlasher Arm Support
-
1031293450274 InsertInsert
-
1032207361644 Hex. Screw M6 X 16, Scotch GripHex. Screw M6 X 16, Scotch Grip
-
1040710002964 FlasherFlasher
-
1041250000758 Torx Screw M6 X 25Torx Screw M6 X 25
-
1042234061410 Flat Washer 6 mmFlat Washer 6 mm
-
1050>1050a710001726 Day Light. Includes 1050 to 1050aDay Light. Includes 1050 to 1050a
-
1050a710003269 Cap ProtectorCap Protector
-
1060>1060a710002055 License Light. Includes 1060 to 1060aLicense Light. Includes 1060 to 1060a
-
1060a219800128 BulbBulb
-
1061234161601 Lock Washer Helical M6Lock Washer Helical M6
-
1062232061600 Hex. Nut M6Hex. Nut M6
-
1100710001248 Outlet DCOutlet DC
-
1200710003335 Fuse HolderFuse Holder
-
1201293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
1210270000141 ClipClip
-
1211390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
1213710003006 HousingHousing
-
1300414227300 ClipClip
-
1400710001364 Starter RelayStarter Relay
-
1401234161601 Lock Washer Helical M6Lock Washer Helical M6
-
1402250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
-
1403232061600 Hex. Nut M6Hex. Nut M6
-
1404233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
