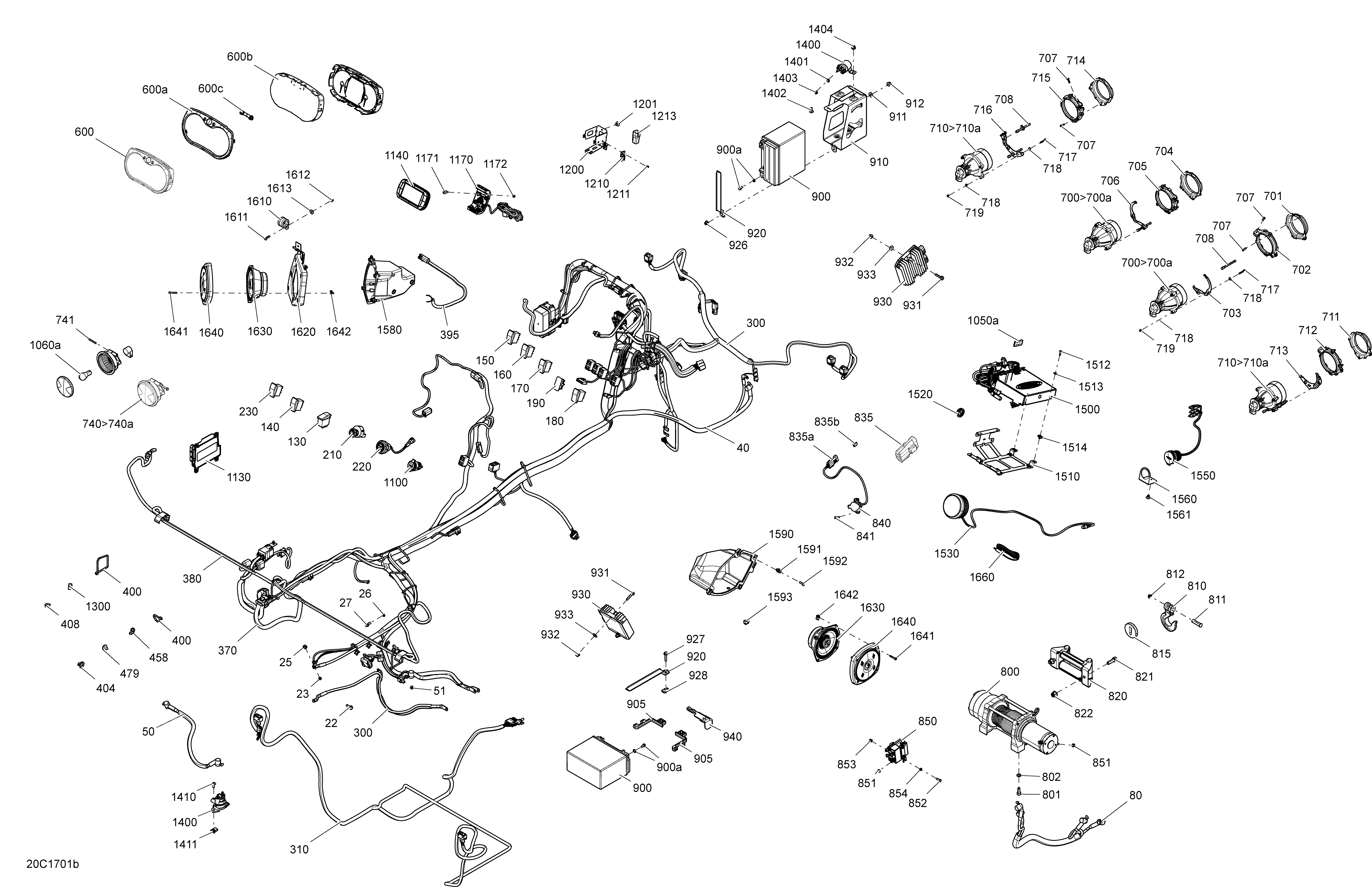

10- Electrical System - Package LTD для BRP Commander - Commander Max - 2017
-
№АртикулНазвание
-
22207662044 Hex. Flanged Screw M6 X 20. CommanderHex. Flanged Screw M6 X 20. Commander
-
23234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
25233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
26234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
27207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
40710005123 Winch Cable (-/+). CommanderWinch Cable (-/+). Commander
-
40710005239 Winch Cable (-/+). Commander MAXWinch Cable (-/+). Commander MAX
-
50710004383 Positive Cable. CommanderPositive Cable. Commander
-
50710004390 Positive Cable. Commander MAXPositive Cable. Commander MAX
-
51232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
80710004387 Electrical Winch CableElectrical Winch Cable
-
130710002053 Switch, Over RideSwitch, Over Ride
-
140710001725 Hi/Low SwitchHi/Low Switch
-
150710001737 SwitchSwitch
-
160710003541 Switch PPS SportSwitch PPS Sport
-
170710001781 Switch DPSSwitch DPS
-
180710002052 SwitchSwitch
-
190710001999 Plug Carling. Commander MAXPlug Carling. Commander MAX
-
210710003847 Ignition SwitchIgnition Switch
-
220710002594 Engine START ButtonEngine START Button
-
230710002684 Switched Accessory. CommanderSwitched Accessory. Commander
-
300710005230 Main Harness Ass'y. CommanderMain Harness Ass'y. Commander
-
300710005231 Main Harness Ass'y. Commander MAXMain Harness Ass'y. Commander MAX
-
310710004681 Rear HarnessRear Harness
-
370710005161 Compressor Harness. CommanderCompressor Harness. Commander
-
380710004339 Radio HarnessRadio Harness
-
395710004340 Speaker HarnessSpeaker Harness
-
400293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
404414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
408293730040 Mount DartMount Dart
-
458293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
479293730018 Mount Dart. Commander MAXMount Dart. Commander MAX
-
600710005116 Speedometer Ass'y. Includes 600 to 600cSpeedometer Ass'y. Includes 600 to 600c
-
600a415129348 Gauge RingGauge Ring
-
600b415129349 LensLens
-
600c415129355 Speedometer ButtonSpeedometer Button
-
700>700a710002524 Low Beam Ass'y. Includes 700 to 700aLow Beam Ass'y. Includes 700 to 700a
-
700a415129249 Halogen BulbHalogen Bulb
-
701710001081 RH Low Front HousingRH Low Front Housing
-
702710001082 RH Low Rear HousingRH Low Rear Housing
-
703710001094 RH Low Light SupportRH Low Light Support
-
704710001083 LH Low Front HousingLH Low Front Housing
-
705710001084 LH Low Rear HousingLH Low Rear Housing
-
706710001037 LH Low Light SupportLH Low Light Support
-
707250000723 Phillips Screw K40 X 16Phillips Screw K40 X 16
-
708710001147 Setting ScrewSetting Screw
-
710>710a710002525 High Beam Ass'y. Includes 710 to 710aHigh Beam Ass'y. Includes 710 to 710a
-
710a415129249 Halogen BulbHalogen Bulb
-
711710001085 RH High Front HousingRH High Front Housing
-
712710001086 RH High Rear HousingRH High Rear Housing
-
713710001115 RH High Light SupportRH High Light Support
-
714710001087 LH High Front HousingLH High Front Housing
-
715710001088 LH High Rear HousingLH High Rear Housing
-
716710001036 LH High Light SupportLH High Light Support
-
717207142544 Hex. Screw M4 X 25Hex. Screw M4 X 25
-
718234051410 Flat Washer M5Flat Washer M5
-
719232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
740>740a710001645 Tail Light. Includes 740 to 740aTail Light. Includes 740 to 740a
-
740a520000758 BulbBulb
-
741241154540 Hex. Screw K50 X 45Hex. Screw K50 X 45
-
800710005513 WinchWinch
-
801205082044 Socket Head Screw M8 X 20Socket Head Screw M8 X 20
-
802234181401 Lock Washer 8 mmLock Washer 8 mm
-
810715003523 Hook and Strap kitHook and Strap kit
-
811715003523 Hook and Strap kitHook and Strap kit
-
812715003523 Hook and Strap kitHook and Strap kit
-
815710005142 Winch Cable StopperWinch Cable Stopper
-
820710004822 Winch Cable GuideWinch Cable Guide
-
821205003044 Socket Screw M10 x 30Socket Screw M10 x 30
-
822233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
835710001059 Connector Ass'y. Includes 835 to 835bConnector Ass'y. Includes 835 to 835b
-
835a278000281 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
835b710000992 ClipClip
-
840710005258 Winch ConnectorWinch Connector
-
841250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
850710004824 Winch SolenoidWinch Solenoid
-
851232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
852207151644 Hex. Screw M5 X 16Hex. Screw M5 X 16
-
853233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
854234051410 Flat Washer M5Flat Washer M5
-
900410301203 Battery Ass'y, 18 Amperes. Includes 900 to 900aBattery Ass'y, 18 Amperes. Includes 900 to 900a
-
900a250000282 Battery Bolt KitBattery Bolt Kit
-
905710003602 Battery Rubber Pad. Commander MAXBattery Rubber Pad. Commander MAX
-
910710003129 Battery Support. CommanderBattery Support. Commander
-
911234062410 Flat Washer 6 mm. CommanderFlat Washer 6 mm. Commander
-
912233261414 Hex. Flanged Elastic Nut M6. CommanderHex. Flanged Elastic Nut M6. Commander
-
920710001916 Battery HolderBattery Holder
-
926233261414 Hex. Flanged Elastic Nut M6. CommanderHex. Flanged Elastic Nut M6. Commander
-
927207563034 Hex. Flanged Screw M6 X 30, Scotch Grip. Commander MAXHex. Flanged Screw M6 X 30, Scotch Grip. Commander MAX
-
928250000048 Panel Nut M6 X 1.0. Commander MAXPanel Nut M6 X 1.0. Commander MAX
-
930710001191 Voltage RegulatorVoltage Regulator
-
931207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
932233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
933234062670 Flat Washer, StainlessFlat Washer, Stainless
-
940710003582 Cap. Commander MAXCap. Commander MAX
-
1050a710003269 Cap ProtectorCap Protector
-
1060a219800128 BulbBulb
-
1100710001248 Outlet DCOutlet DC
-
1130710002947 Calibrated Compressor Module. CommanderCalibrated Compressor Module. Commander
-
1140710005034 GPSGPS
-
1170710002545 GPS SupportGPS Support
-
1171250000797 Torx Head Screw M4 X 16Torx Head Screw M4 X 16
-
1172232541484 Elastic Stop Nut M4Elastic Stop Nut M4
-
1200710003335 Fuse HolderFuse Holder
-
1201293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
1210270000141 ClipClip
-
1211390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
1213710003006 HousingHousing
-
1300414227300 ClipClip
-
1400278003012 Starter Relay. Commander MAXStarter Relay. Commander MAX
-
1400710001364 Starter Relay. CommanderStarter Relay. Commander
-
1401234161601 Lock Washer Helical M6Lock Washer Helical M6
-
1402250000717 Torx Head Screw M6 X 16. CommanderTorx Head Screw M6 X 16. Commander
-
1403232061600 Hex. Nut M6Hex. Nut M6
-
1404233261414 Hex. Flanged Elastic Nut M6. CommanderHex. Flanged Elastic Nut M6. Commander
-
1410250000717 Torx Head Screw M6 X 16. Commander MAXTorx Head Screw M6 X 16. Commander MAX
-
1411250000048 Panel Nut M6 X 1.0. Commander MAXPanel Nut M6 X 1.0. Commander MAX
-
1500710005442 AmplifierAmplifier
-
1510710002556 Amplifier SupportAmplifier Support
-
1512250000750 Torx Screw M4 X 16Torx Screw M4 X 16
-
1513234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
1514250100143 Extruded Panel Nut M4 X 0.7Extruded Panel Nut M4 X 0.7
-
1520710002926 Grommet BootGrommet Boot
-
1530710002549 Radio InterfaceRadio Interface
-
1550710002551 USB ExtensionUSB Extension
-
1560710002731 USB Extension SupportUSB Extension Support
-
1561293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
1580710004300 LH Front SpeakerLH Front Speaker
-
1590710004301 RH Front SpeakerRH Front Speaker
-
1591250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
1592250000724 Torx Screw M5 X 20Torx Screw M5 X 20
-
1593414227300 ClipClip
-
1610709200036 Hose AnchorHose Anchor
-
1611250000724 Torx Screw M5 X 20Torx Screw M5 X 20
-
1612233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
1613250200025 Washer M5Washer M5
-
1620710002789 Speaker Box PlateSpeaker Box Plate
-
1630710003233 Front SpeakerFront Speaker
-
1640710002790 Speaker CoverSpeaker Cover
-
1641205042560 Socket Head Screw M4 X 25Socket Head Screw M4 X 25
-
1642250100143 Extruded Panel Nut M4 X 0.7Extruded Panel Nut M4 X 0.7
-
1660710002810 AntennaAntenna
