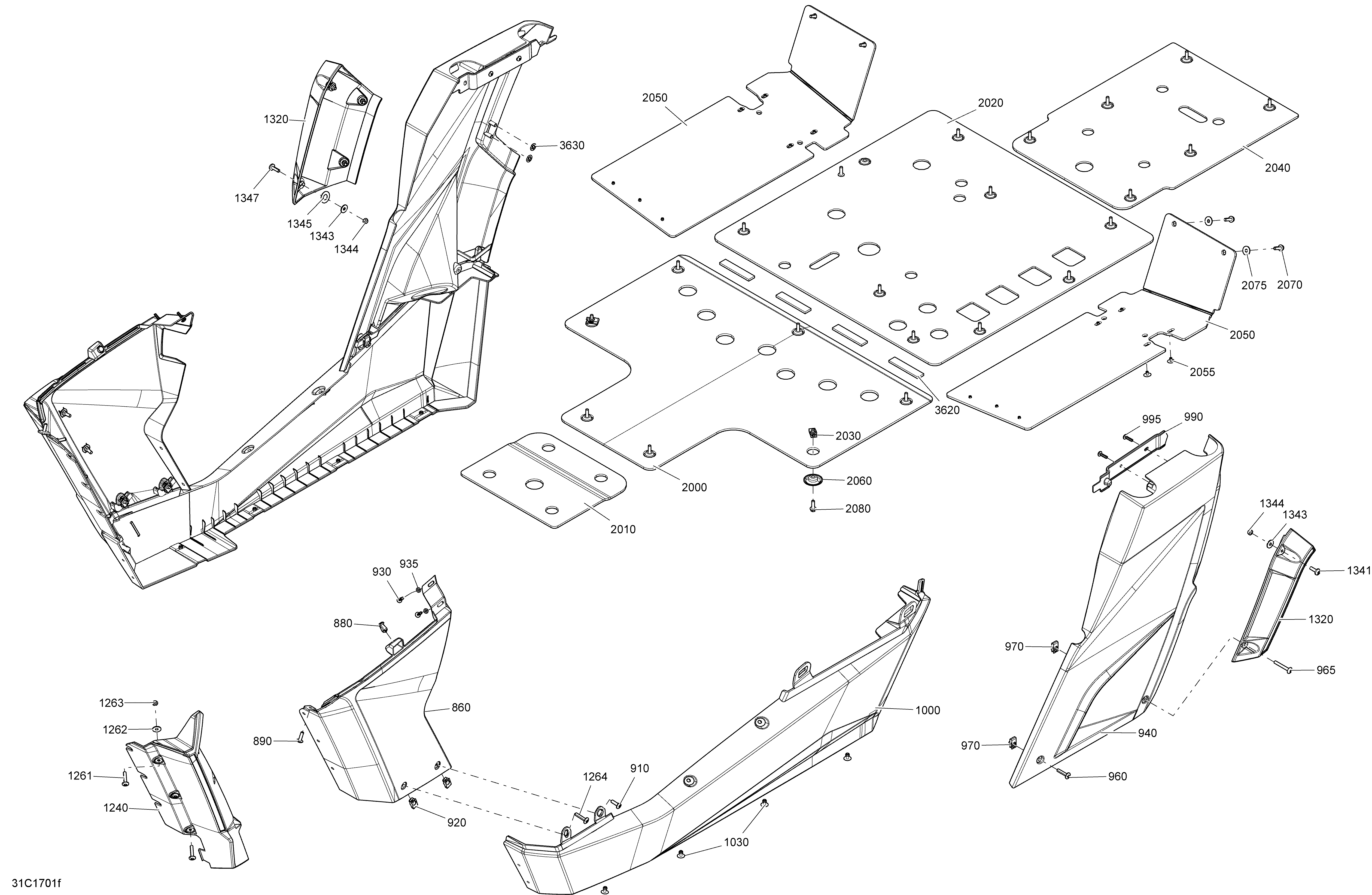

09- Body And Accessories - Central, All Models для BRP Commander - Commander Max - 2017
-
№АртикулНазвание
-
860705008349 Brush Aluminum LH Front Lateral Pannel. Aluminum ModelBrush Aluminum LH Front Lateral Pannel. Aluminum Model
-
860705008351 Brush Aluminum RH Front Lateral Pannel. Aluminum ModelBrush Aluminum RH Front Lateral Pannel. Aluminum Model
-
860705009590 Camo LH Front Lateral Panel. Camo ModelCamo LH Front Lateral Panel. Camo Model
-
860705009591 Camo RH Front Lateral Panel. Camo ModelCamo RH Front Lateral Panel. Camo Model
-
860705010701 Midnight Blue LH Front Lateral Panel. Blue ModelMidnight Blue LH Front Lateral Panel. Blue Model
-
860705010702 Midnight Blue RH Front Lateral Panel. Blue ModelMidnight Blue RH Front Lateral Panel. Blue Model
-
860705008239 Quarry Gray LH Front Lateral Pannel. Gray ModelQuarry Gray LH Front Lateral Pannel. Gray Model
-
860705008240 Quarry Gray RH Front Lateral Pannel. Gray ModelQuarry Gray RH Front Lateral Pannel. Gray Model
-
860705008488 Timeless Black LH Front Lateral Panel. Package XTPTimeless Black LH Front Lateral Panel. Package XTP
-
860705008489 Timeless Black RH Front Lateral Panel. Package XTPTimeless Black RH Front Lateral Panel. Package XTP
-
860705007851 Viper Red LH Front Lateral Pannel. Red ModelViper Red LH Front Lateral Pannel. Red Model
-
860705007852 Viper Red RH Front Lateral Pannel. Red ModelViper Red RH Front Lateral Pannel. Red Model
-
860705007846 Yellow LH Front Lateral Pannel. Yellow ModelYellow LH Front Lateral Pannel. Yellow Model
-
860705007845 Yellow RH Front Lateral Pannel. Yellow ModelYellow RH Front Lateral Pannel. Yellow Model
-
880293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
890250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
910250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
910250000722 Torx Screw M6 X 20. Package STD, DPSTorx Screw M6 X 20. Package STD, DPS
-
920250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
930250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
935234051410 Flat Washer M5Flat Washer M5
-
940705008354 Brush Aluminum LH Rear Lateral Panel. Aluminum ModelBrush Aluminum LH Rear Lateral Panel. Aluminum Model
-
940705008358 Brush Aluminum RH Rear Lateral Panel. Aluminum ModelBrush Aluminum RH Rear Lateral Panel. Aluminum Model
-
940705009596 Camo LH Rear Lateral Panel. Camo ModelCamo LH Rear Lateral Panel. Camo Model
-
940705009597 Camo RH Rear Lateral Panel. Camo ModelCamo RH Rear Lateral Panel. Camo Model
-
940705010703 Midnight Blue LH Rear Lateral Panel. Blue ModelMidnight Blue LH Rear Lateral Panel. Blue Model
-
940705010704 Midnight Blue RH Rear Lateral Panel. Blue ModelMidnight Blue RH Rear Lateral Panel. Blue Model
-
940705008369 Quarry Gray LH Rear Lateral Panel. Gray ModelQuarry Gray LH Rear Lateral Panel. Gray Model
-
940705008370 Quarry Gray RH Rear Lateral Panel. Gray ModelQuarry Gray RH Rear Lateral Panel. Gray Model
-
940705010748 Timeless Black LH Rear Lateral Panel. Package XTPTimeless Black LH Rear Lateral Panel. Package XTP
-
940705010749 Timeless Black RH Rear Lateral Panel. Package XTPTimeless Black RH Rear Lateral Panel. Package XTP
-
940705007874 Viper Red LH Rear Lateral Panel. Red ModelViper Red LH Rear Lateral Panel. Red Model
-
940705007875 Viper Red RH Rear Lateral Panel. Red ModelViper Red RH Rear Lateral Panel. Red Model
-
940705007864 Yellow LH Rear Lateral Panel. Yellow ModelYellow LH Rear Lateral Panel. Yellow Model
-
940705007865 Yellow RH Rear Lateral Panel. Yellow ModelYellow RH Rear Lateral Panel. Yellow Model
-
960250000843 Torx Truss Screw M6 X 30Torx Truss Screw M6 X 30
-
965250000748 Torx Screw M6 X 45Torx Screw M6 X 45
-
970250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
990705007916 Support Skid PlateSupport Skid Plate
-
995250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
1000705006993 LH Middle Side Pannel. Package HunterLH Middle Side Pannel. Package Hunter
-
1000705006994 RH Middle Side Pannel. Package HunterRH Middle Side Pannel. Package Hunter
-
1000705006991 LH Lateral Middle Panel. Package STD, DPSLH Lateral Middle Panel. Package STD, DPS
-
1000705006992 RH Lateral Middle Panel. Package STD, DPSRH Lateral Middle Panel. Package STD, DPS
-
1000705006993 LH Middle Side Pannel. Package XT, LTDLH Middle Side Pannel. Package XT, LTD
-
1000705006994 RH Middle Side Pannel. Package XT, LTDRH Middle Side Pannel. Package XT, LTD
-
1000705007093 LH Middle Side Pannel. Package XTPLH Middle Side Pannel. Package XTP
-
1000705007094 RH Middle Side Pannel. Package XTPRH Middle Side Pannel. Package XTP
-
1030293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1240705008668 LH Lower Black Mudguard. Package HunterLH Lower Black Mudguard. Package Hunter
-
1240705008669 RH Lower Black Mudguard. Package HunterRH Lower Black Mudguard. Package Hunter
-
1240705008668 LH Lower Black Mudguard. Package XT Except Europe, LTDLH Lower Black Mudguard. Package XT Except Europe, LTD
-
1240705008669 RH Lower Black Mudguard. Package XT Except Europe, LTDRH Lower Black Mudguard. Package XT Except Europe, LTD
-
1240705008668 LH Lower Black Mudguard. Package XTPLH Lower Black Mudguard. Package XTP
-
1240705008669 RH Lower Black Mudguard. Package XTPRH Lower Black Mudguard. Package XTP
-
1261250000842 Torx Screw M6 X 30 Stainless. Package XTPTorx Screw M6 X 30 Stainless. Package XTP
-
1261250000842 Torx Screw M6 X 30 Stainless. Package XT Except Europe, LTDTorx Screw M6 X 30 Stainless. Package XT Except Europe, LTD
-
1261250000842 Torx Screw M6 X 30 Stainless. Package HunterTorx Screw M6 X 30 Stainless. Package Hunter
-
1262234062670 Flat Washer, Stainless. Package HunterFlat Washer, Stainless. Package Hunter
-
1262234062670 Flat Washer, Stainless. Package XTPFlat Washer, Stainless. Package XTP
-
1262234062670 Flat Washer, Stainless. Package XT Except Europe, LTDFlat Washer, Stainless. Package XT Except Europe, LTD
-
1263232561434 Elastic Stop Nut M6. Package XT Except Europe, LTDElastic Stop Nut M6. Package XT Except Europe, LTD
-
1263232561434 Elastic Stop Nut M6. Package HunterElastic Stop Nut M6. Package Hunter
-
1263232561434 Elastic Stop Nut M6. Package XTPElastic Stop Nut M6. Package XTP
-
1264250000842 Torx Screw M6 X 30 Stainless. Package XTPTorx Screw M6 X 30 Stainless. Package XTP
-
1264250000842 Torx Screw M6 X 30 Stainless. Package XT Except Europe, LTDTorx Screw M6 X 30 Stainless. Package XT Except Europe, LTD
-
1264250000842 Torx Screw M6 X 30 Stainless. Package HunterTorx Screw M6 X 30 Stainless. Package Hunter
-
1320705008670 LH Rear Lower Black Mudguard. Package HunterLH Rear Lower Black Mudguard. Package Hunter
-
1320705008672 RH Rear Lower Black Mudguard. Package HunterRH Rear Lower Black Mudguard. Package Hunter
-
1320705008670 LH Rear Lower Black Mudguard. Package XT Except Europe, LTDLH Rear Lower Black Mudguard. Package XT Except Europe, LTD
-
1320705008672 RH Rear Lower Black Mudguard. Package XT Except Europe, LTDRH Rear Lower Black Mudguard. Package XT Except Europe, LTD
-
1320705008670 LH Rear Lower Black Mudguard. Package XTPLH Rear Lower Black Mudguard. Package XTP
-
1320705008672 RH Rear Lower Black Mudguard. Package XTPRH Rear Lower Black Mudguard. Package XTP
-
1341250000712 Torx Screw M6 X 20. Package XT Except Europe, LTDTorx Screw M6 X 20. Package XT Except Europe, LTD
-
1341250000712 Torx Screw M6 X 20. Package HunterTorx Screw M6 X 20. Package Hunter
-
1341250000712 Torx Screw M6 X 20. Package XTPTorx Screw M6 X 20. Package XTP
-
1343234062670 Flat Washer, Stainless. Package HunterFlat Washer, Stainless. Package Hunter
-
1343234062670 Flat Washer, Stainless. Package XT Except Europe, LTDFlat Washer, Stainless. Package XT Except Europe, LTD
-
1343234062670 Flat Washer, Stainless. Package XTPFlat Washer, Stainless. Package XTP
-
1344232561434 Elastic Stop Nut M6. Package HunterElastic Stop Nut M6. Package Hunter
-
1344232561434 Elastic Stop Nut M6. Package XT Except Europe, LTDElastic Stop Nut M6. Package XT Except Europe, LTD
-
1344232561434 Elastic Stop Nut M6. Package XTPElastic Stop Nut M6. Package XTP
-
1345250200086 Flat Washer. Package HunterFlat Washer. Package Hunter
-
1345250200086 Flat Washer. Package XT Except Europe, LTDFlat Washer. Package XT Except Europe, LTD
-
1345250200086 Flat Washer. Package XTPFlat Washer. Package XTP
-
1347250000712 Torx Screw M6 X 20. Package HunterTorx Screw M6 X 20. Package Hunter
-
1347250000712 Torx Screw M6 X 20. Package XT Except Europe, LTDTorx Screw M6 X 20. Package XT Except Europe, LTD
-
1347250000712 Torx Screw M6 X 20. Package XTPTorx Screw M6 X 20. Package XTP
-
2000705007055 Middle Protector Plate. Except Package HunterMiddle Protector Plate. Except Package Hunter
-
2000715001996 Middle Front Protector Plate. Package HunterMiddle Front Protector Plate. Package Hunter
-
2010715001996 Middle Front Protector Plate. Package HunterMiddle Front Protector Plate. Package Hunter
-
2020705007056 Rear Protector Plate. Except Package HunterRear Protector Plate. Except Package Hunter
-
2020715001997 Middle Rear Protector Plate. Package HunterMiddle Rear Protector Plate. Package Hunter
-
2030250000048 Panel Nut M6 X 1.0. Package HunterPanel Nut M6 X 1.0. Package Hunter
-
2030250000048 Panel Nut M6 X 1.0. Except Package HunterPanel Nut M6 X 1.0. Except Package Hunter
-
2040705007227 Rear Protector Plate. Except Package HunterRear Protector Plate. Except Package Hunter
-
2040715000694 Rear Protector Plate. Package HunterRear Protector Plate. Package Hunter
-
2050705007038 Lateral Skid Plate. Except Package HunterLateral Skid Plate. Except Package Hunter
-
2055293150104 Pop Rivet 3/16''. Except Package HunterPop Rivet 3/16''. Except Package Hunter
-
2060705007171 CupCup
-
2070210262050 Washer Head Hexagonal Screw. Except Package HunterWasher Head Hexagonal Screw. Except Package Hunter
-
2075250200097 Flat Washer. Except Package HunterFlat Washer. Except Package Hunter
-
2080210262050 Washer Head Hexagonal Screw. Except Package HunterWasher Head Hexagonal Screw. Except Package Hunter
-
2080210262050 Washer Head Hexagonal Screw. Package HunterWasher Head Hexagonal Screw. Package Hunter
-
3620291001932 Pad. Except Package HunterPad. Except Package Hunter
-
3630250100031 Push NutPush Nut
