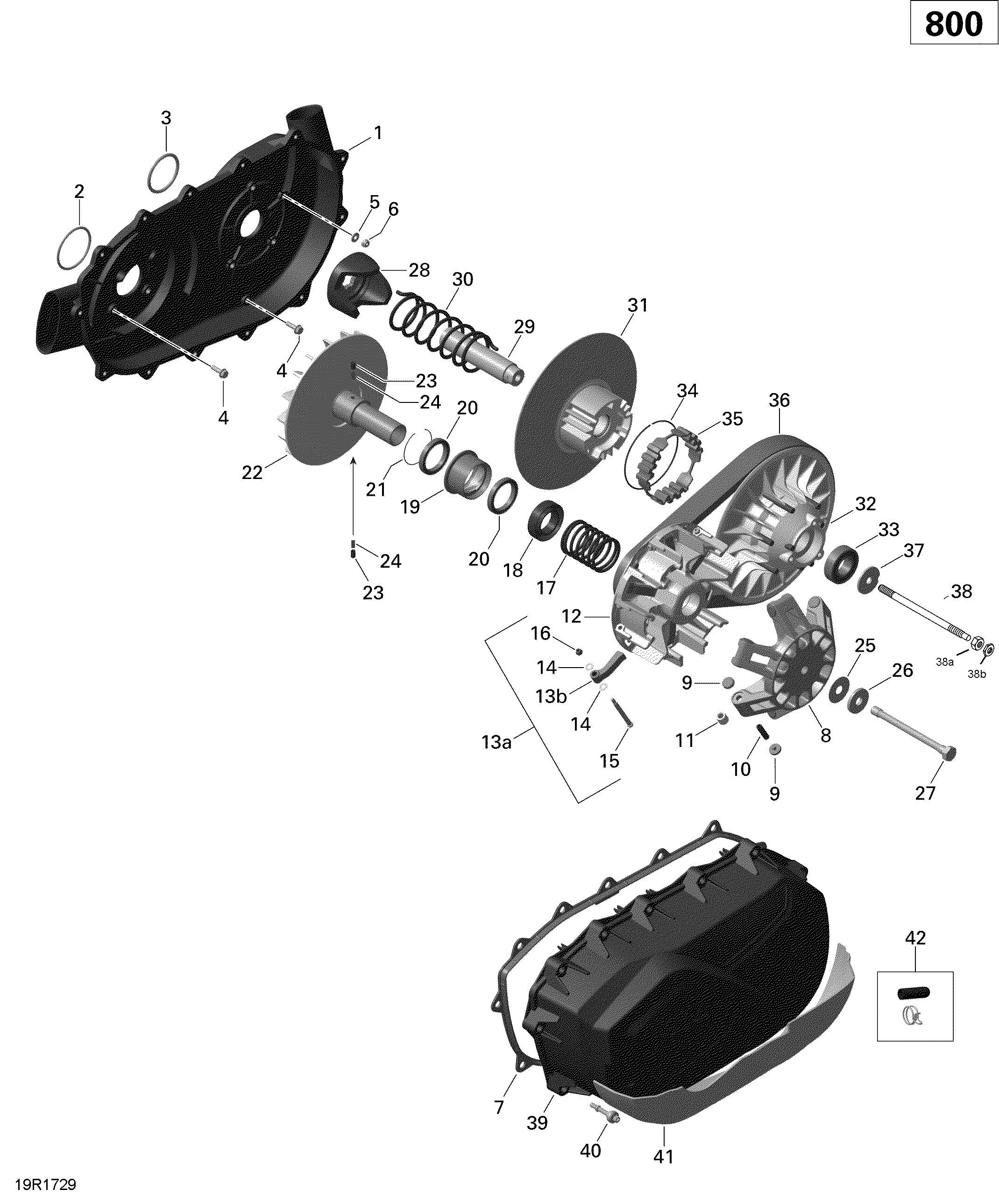

05- Transmission - 800R EFI для BRP Commander - Commander Max - 2017
-
№АртикулНазвание
-
1420611409 CVT Air GuideCVT Air Guide
-
2420430408 O-RingO-Ring
-
3420631088 O-RingO-Ring
-
4420441311 Hex.Screw M6 X 20Hex.Screw M6 X 20
-
5224061121 Flat WasherFlat Washer
-
6232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
7420430126 GasketGasket
-
8420280522 Governor Cup Ass'y. Includes 8 to 11Governor Cup Ass'y. Includes 8 to 11
-
9420281296 Slider Shoe SetSlider Shoe Set
-
10417223257 Roller AxleRoller Axle
-
11417223767 RollerRoller
-
12420280467 Outher HaftOuther Haft
-
13a420248607 Centrifugal Lever Set. Includes 13a to 16Centrifugal Lever Set. Includes 13a to 16
-
17420238615 Compression Spring, Drive PulleyCompression Spring, Drive Pulley
-
18420627577 Spring SeatSpring Seat
-
19420257195 Drive Pulley ClutchDrive Pulley Clutch
-
20420632377 Ball BearingBall Bearing
-
21420245951 Retaining RingRetaining Ring
-
22420280374 Inner HalfInner Half
-
23420229577 Spring SleeveSpring Sleeve
-
24420239134 SpringSpring
-
25420627920 Thrust WasherThrust Washer
-
26420627765 Spring WasherSpring Washer
-
27420641855 Hex. Screw M12 X 135Hex. Screw M12 X 135
-
28420280472 CamCam
-
29420220914 Driven Pulley ShaftDriven Pulley Shaft
-
30420638040 Compression SpringCompression Spring
-
31420280499 Inner Half Ass'yInner Half Ass'y
-
32420280178 Outer Half Pulley Ass'y. Includes 32 to 35Outer Half Pulley Ass'y. Includes 32 to 35
-
33420932421 Ball BearingBall Bearing
-
34420245910 Retaining RingRetaining Ring
-
35420660124 Torque GearTorque Gear
-
36715000302 V-BeltV-Belt
-
37420627590 Thrust WasherThrust Washer
-
38420441900 Stud Screw M10 X 136Stud Screw M10 X 136
-
38a420242097 Nut M10Nut M10
-
38b420242402 Nut M10Nut M10
-
39420612472 Variator Cover Ass'y. Include 41, Except Com-MaxVariator Cover Ass'y. Include 41, Except Com-Max
-
39420612318 Variator Cover Ass'y. Com-MaxVariator Cover Ass'y. Com-Max
-
40420440567 Hex. Distance Screw M6 X 30.5Hex. Distance Screw M6 X 30.5
-
41715900200 Heat Protection Mat. Except Com-MaxHeat Protection Mat. Except Com-Max
-
41420975052 Heat Protection Mat. Com-MaxHeat Protection Mat. Com-Max
-
42707001179 Drain Plug KitDrain Plug Kit
