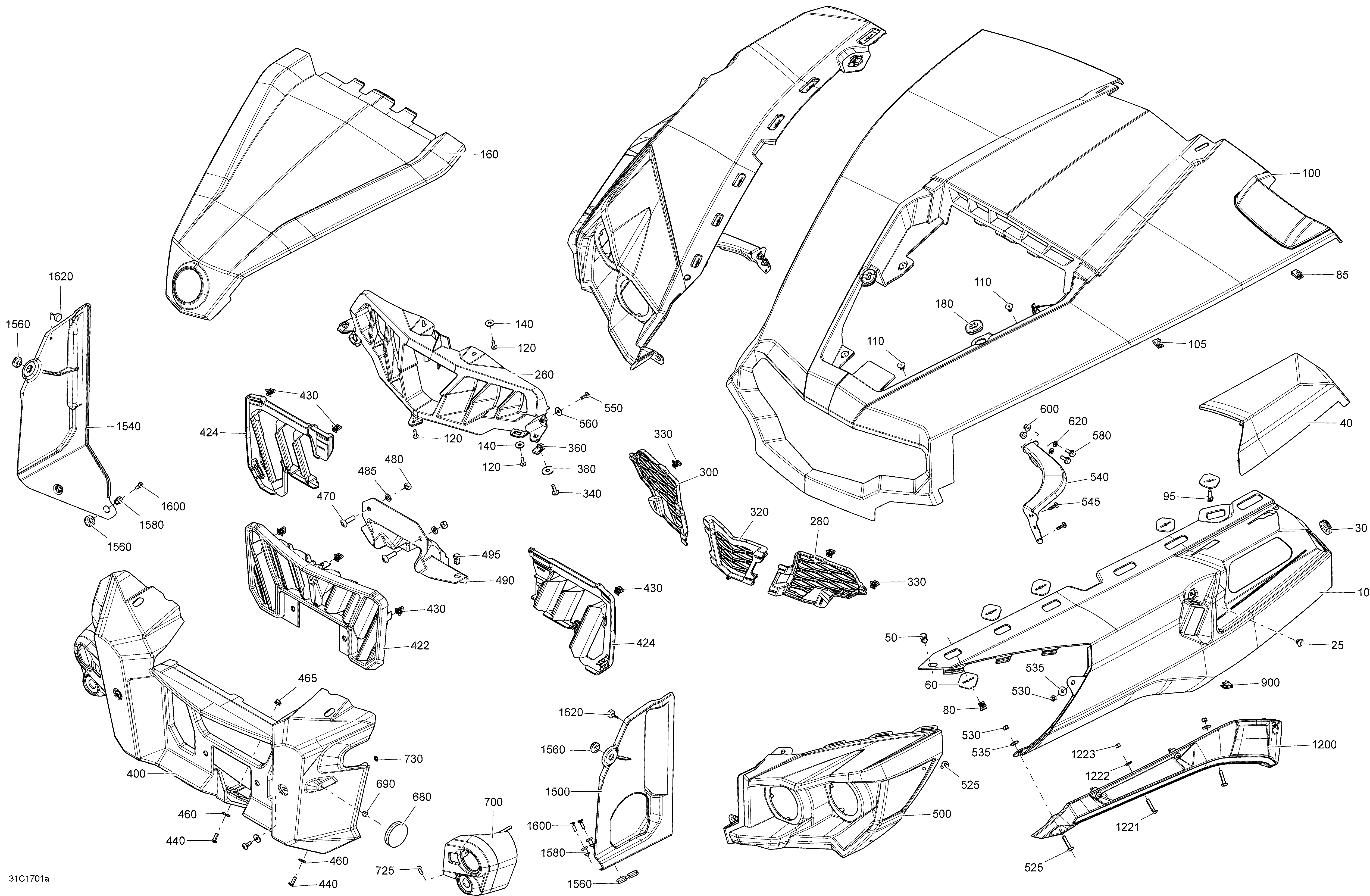

09- Body And Accessories - Front, All Models для BRP Commander - Commander Max - 2017
-
№АртикулНазвание
-
10705008340 Brush Aluminum LH Front Fender. Aluminum ModelBrush Aluminum LH Front Fender. Aluminum Model
-
10705008342 Brush Aluminum RH Front Fender. Aluminum ModelBrush Aluminum RH Front Fender. Aluminum Model
-
10705009576 Camo LH Front Fender. Camo ModelCamo LH Front Fender. Camo Model
-
10705009577 Camo RH Front Fender. Camo ModelCamo RH Front Fender. Camo Model
-
10705010696 Midnight Blue LH Front Fender. Blue ModelMidnight Blue LH Front Fender. Blue Model
-
10705010697 Midnight Blue RH Front Fender. Blue ModelMidnight Blue RH Front Fender. Blue Model
-
10705008232 Quarry Gray LH Front Fender. Gray ModelQuarry Gray LH Front Fender. Gray Model
-
10705008233 Quarry Gray RH Front Fender. Gray ModelQuarry Gray RH Front Fender. Gray Model
-
10705010745 Timeless Black LH Front Fender. Package XTPTimeless Black LH Front Fender. Package XTP
-
10705010746 Timeless Black RH Front Fender. Package XTPTimeless Black RH Front Fender. Package XTP
-
10705008196 Viper Red LH Front Fender. Red ModelViper Red LH Front Fender. Red Model
-
10705008197 Viper Red RH Front Fender. Red ModelViper Red RH Front Fender. Red Model
-
10705008194 Yellow LH Front Fender. Yellow ModelYellow LH Front Fender. Yellow Model
-
10705008195 Yellow RH Front Fender. Yellow ModelYellow RH Front Fender. Yellow Model
-
25293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
30517303756 GrommetGrommet
-
40705008190 Yellow CVT Inlet Cover. Yellow ModelYellow CVT Inlet Cover. Yellow Model
-
40705008191 Viper Red CVT Inlet Cover. Red ModelViper Red CVT Inlet Cover. Red Model
-
40705008234 Quarry Gray CVT Inlet Cover. Gray ModelQuarry Gray CVT Inlet Cover. Gray Model
-
40705008344 Brush Aluminum CVT Inlet Cover. Aluminum ModelBrush Aluminum CVT Inlet Cover. Aluminum Model
-
40705009582 Camo CVT Inlet Cover. Camo ModelCamo CVT Inlet Cover. Camo Model
-
40705010698 Midnight Blue CVT Inlet Cover. Blue ModelMidnight Blue CVT Inlet Cover. Blue Model
-
40705010747 Timeless Black CVT Inlet Cover. Package XTPTimeless Black CVT Inlet Cover. Package XTP
-
50293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
60705003841 Support PlateSupport Plate
-
80517302785 ClipClip
-
85250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
95207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
100705008187 Yellow Fixed Hood. Yellow ModelYellow Fixed Hood. Yellow Model
-
100705008188 Viper Red Fixed Hood. Red ModelViper Red Fixed Hood. Red Model
-
100705008235 Quarry Gray Fixed Hood. Gray ModelQuarry Gray Fixed Hood. Gray Model
-
100705008346 Brush Aluminum Fixed Hood. Aluminum ModelBrush Aluminum Fixed Hood. Aluminum Model
-
100705009585 Camo Fixed Hood. Camo ModelCamo Fixed Hood. Camo Model
-
100705010478 Black Fixed Hood. Package XTPBlack Fixed Hood. Package XTP
-
100705010699 Midnight Blue Fixed Hood. Blue ModelMidnight Blue Fixed Hood. Blue Model
-
105250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
110293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
120250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
140234062670 Flat Washer, StainlessFlat Washer, Stainless
-
160705008184 Yellow Removable Hood. Yellow ModelYellow Removable Hood. Yellow Model
-
160705008185 Viper Red Removable Hood. Red ModelViper Red Removable Hood. Red Model
-
160705008237 Quarry Gray Removable Hood. Gray ModelQuarry Gray Removable Hood. Gray Model
-
160705009206 Brush Aluminum Removable Hood. Package XTPBrush Aluminum Removable Hood. Package XTP
-
160705009206 Brush Aluminum Removable Hood. Aluminum ModelBrush Aluminum Removable Hood. Aluminum Model
-
160705009588 Camo Removable Hood. Camo ModelCamo Removable Hood. Camo Model
-
160705010700 Midnight Blue Removable Hood. Blue ModelMidnight Blue Removable Hood. Blue Model
-
180705005156 Oval WasherOval Washer
-
260705003629 Upper Facia, BlackUpper Facia, Black
-
280705004350 LH Upper Facia ProtectorLH Upper Facia Protector
-
300705004351 RH Upper Facia ProtectorRH Upper Facia Protector
-
320705004336 Center Upper Facia ProtectorCenter Upper Facia Protector
-
330517302785 ClipClip
-
340250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
360250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
380234082410 Flat Washer 8 mmFlat Washer 8 mm
-
400705008689 Black Front Facia. Package DPS EuropeBlack Front Facia. Package DPS Europe
-
400705008689 Black Front Facia. Package DPS Except EuropeBlack Front Facia. Package DPS Except Europe
-
400705010654 Black Front Facia. Package HunterBlack Front Facia. Package Hunter
-
400705008689 Black Front Facia. Package STDBlack Front Facia. Package STD
-
400705008689 Black Front Facia. Package XT EuropeBlack Front Facia. Package XT Europe
-
400705008690 Black Front Facia. Package XT Except Europe, LTDBlack Front Facia. Package XT Except Europe, LTD
-
400705008690 Black Front Facia. Package XTPBlack Front Facia. Package XTP
-
422705004755 Lower Front Facia ProtectorLower Front Facia Protector
-
424705004819 LH Lower Rear Facia ProtectorLH Lower Rear Facia Protector
-
424705004820 RH Lower Rear Facia ProtectorRH Lower Rear Facia Protector
-
430517302785 ClipClip
-
440250000755 Torx Screw M6 X 16Torx Screw M6 X 16
-
460234062670 Flat Washer, StainlessFlat Washer, Stainless
-
465293450274 InsertInsert
-
470250000745 Torx Truss M/S M8 X30. Package STD, DPSTorx Truss M/S M8 X30. Package STD, DPS
-
480232081414 Hex. Nut M8. Package STD, DPSHex. Nut M8. Package STD, DPS
-
485234081410 Flat Washer 8 mm. Package STD, DPSFlat Washer 8 mm. Package STD, DPS
-
490705003399 Bottom Deflector. Package STD, DPSBottom Deflector. Package STD, DPS
-
495293150089 Tuflok Plastic Rivet. Package STD, DPSTuflok Plastic Rivet. Package STD, DPS
-
500705002885 LH Front FaciaLH Front Facia
-
500705002886 RH Front FaciaRH Front Facia
-
525250000842 Torx Screw M6 X 30 StainlessTorx Screw M6 X 30 Stainless
-
530232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
535234062670 Flat Washer, StainlessFlat Washer, Stainless
-
540705002891 Facia Front SupportFacia Front Support
-
545250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
550250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
560234062670 Flat Washer, StainlessFlat Washer, Stainless
-
580207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
600233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
620234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
680705011222 Amber Reflector. Except EuropeAmber Reflector. Except Europe
-
690233251434 Flanged Elastic Nut M5. Except EuropeFlanged Elastic Nut M5. Except Europe
-
700705008676 LH Flasher Cap. EuropeLH Flasher Cap. Europe
-
700705008677 RH Flasher Cap. EuropeRH Flasher Cap. Europe
-
725250000720 Torx Screw K50 X 16. EuropeTorx Screw K50 X 16. Europe
-
730389804300 Push Nut. EuropePush Nut. Europe
-
900250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
1200705008666 LH Black Upper Front Mudguard. Package HunterLH Black Upper Front Mudguard. Package Hunter
-
1200705008667 RH Black Upper Front Mudguard. Package HunterRH Black Upper Front Mudguard. Package Hunter
-
1200705008666 LH Black Upper Front Mudguard. Package XT Except Europe, LTDLH Black Upper Front Mudguard. Package XT Except Europe, LTD
-
1200705008667 RH Black Upper Front Mudguard. Package XT Except Europe, LTDRH Black Upper Front Mudguard. Package XT Except Europe, LTD
-
1200705008666 LH Black Upper Front Mudguard. Package XTPLH Black Upper Front Mudguard. Package XTP
-
1200705008667 RH Black Upper Front Mudguard. Package XTPRH Black Upper Front Mudguard. Package XTP
-
1221250000842 Torx Screw M6 X 30 Stainless. Package XTPTorx Screw M6 X 30 Stainless. Package XTP
-
1221250000842 Torx Screw M6 X 30 Stainless. Package XT Except Europe, LTDTorx Screw M6 X 30 Stainless. Package XT Except Europe, LTD
-
1221250000842 Torx Screw M6 X 30 Stainless. Package HunterTorx Screw M6 X 30 Stainless. Package Hunter
-
1222234062670 Flat Washer, Stainless. Package HunterFlat Washer, Stainless. Package Hunter
-
1222234062670 Flat Washer, Stainless. Package XT Except Europe, LTDFlat Washer, Stainless. Package XT Except Europe, LTD
-
1222234062670 Flat Washer, Stainless. Package XTPFlat Washer, Stainless. Package XTP
-
1223232561434 Elastic Stop Nut M6. Package HunterElastic Stop Nut M6. Package Hunter
-
1223232561434 Elastic Stop Nut M6. Package XT Except Europe, LTDElastic Stop Nut M6. Package XT Except Europe, LTD
-
1223232561434 Elastic Stop Nut M6. Package XTPElastic Stop Nut M6. Package XTP
-
1500705002895 LH Deflector. Package STD, DPSLH Deflector. Package STD, DPS
-
1500705005113 LH Deflector. Package XT, XTP, LTDLH Deflector. Package XT, XTP, LTD
-
1500705005113 LH Deflector. Package HunterLH Deflector. Package Hunter
-
1540705002894 RH DeflectorRH Deflector
-
1560293720053 GrommetGrommet
-
1580517303439 KnobKnob
-
1600250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
1620708000759 Rubber StopperRubber Stopper
