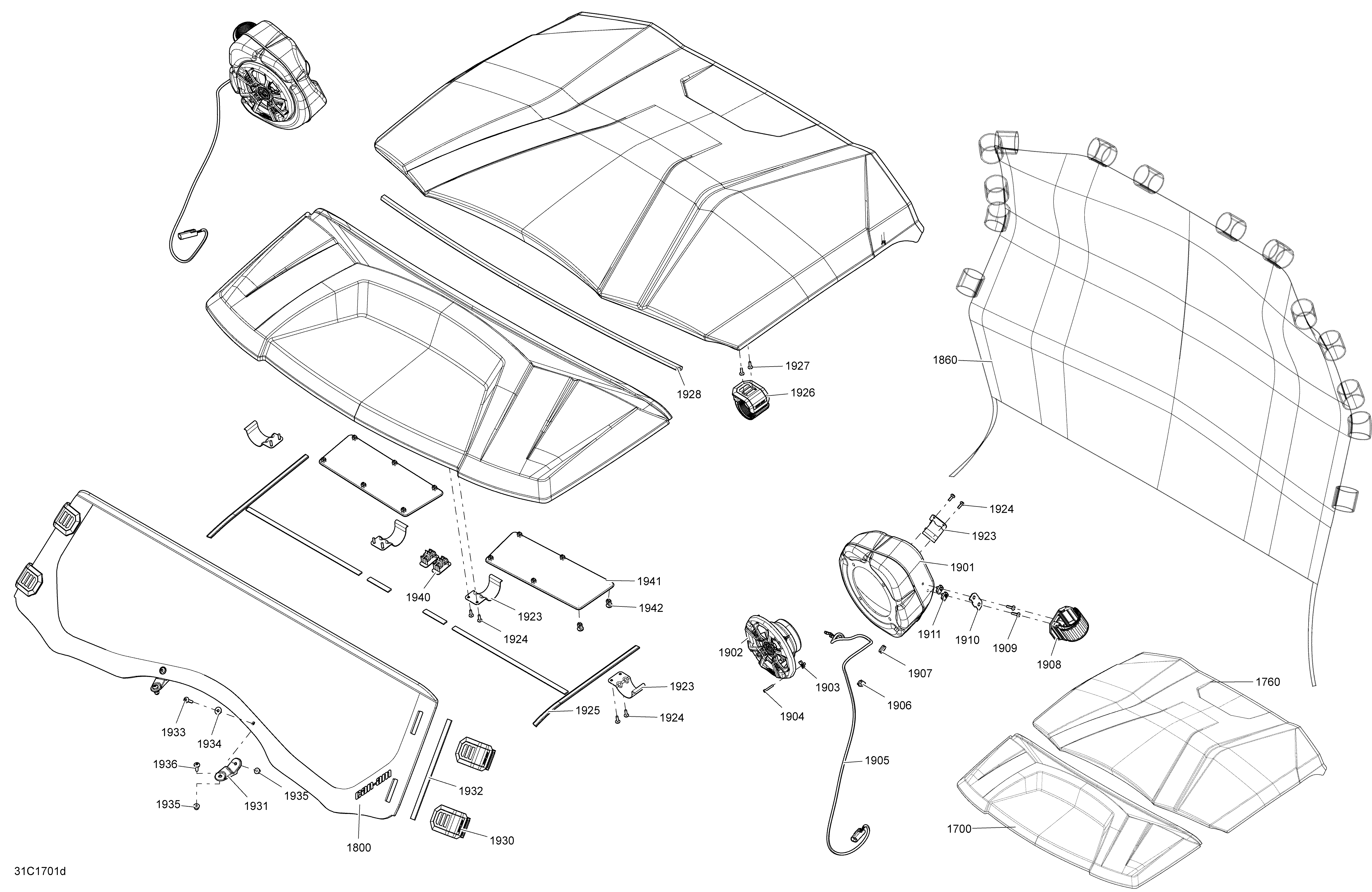

09- Body And Accessories - Parts Package LTD для BRP Commander - Commander Max - 2017
-
№АртикулНазвание
-
1700715001952 Roof Visor Ass'yRoof Visor Ass'y
-
1760715001949 Mid Roof KitMid Roof Kit
-
1800705005671 Half WindshieldHalf Windshield
-
1860
-
1901710002837 LH Speaker Box Ass'yLH Speaker Box Ass'y
-
1901710002839 RH Speaker Box Ass'yRH Speaker Box Ass'y
-
1902710002838 SpeakerSpeaker
-
1903250100143 Extruded Panel Nut M4 X 0.7Extruded Panel Nut M4 X 0.7
-
1904250000622 Torx Pan Screw M4 X 20Torx Pan Screw M4 X 20
-
1905710004341 Speaker HarnessSpeaker Harness
-
1906414227300 ClipClip
-
1907414036300 GrommetGrommet
-
1908705007962 Perforated Velcro StrapPerforated Velcro Strap
-
1909250000724 Torx Screw M5 X 20Torx Screw M5 X 20
-
1910710002946 M5 Support PlateM5 Support Plate
-
1911250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
1923705009030 ''U'' Brace Strip''U'' Brace Strip
-
1924250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
1925293250087 Gasket, NeopreneGasket, Neoprene
-
1926705007962 Perforated Velcro StrapPerforated Velcro Strap
-
1927250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
1928293200136 Seal, MeterSeal, Meter
-
1929293250087 Gasket, NeopreneGasket, Neoprene
-
1930705007961 Velcro StrapVelcro Strap
-
1931705005776 Windshield SupportWindshield Support
-
1932293250087 Gasket, NeopreneGasket, Neoprene
-
1933250000758 Torx Screw M6 X 25Torx Screw M6 X 25
-
1934234062670 Flat Washer, StainlessFlat Washer, Stainless
-
1935233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
1936250000488 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
1940710001999 Plug CarlingPlug Carling
-
1941280000496 Visor PocketVisor Pocket
-
1942293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
5000250100031 Push NutPush Nut
