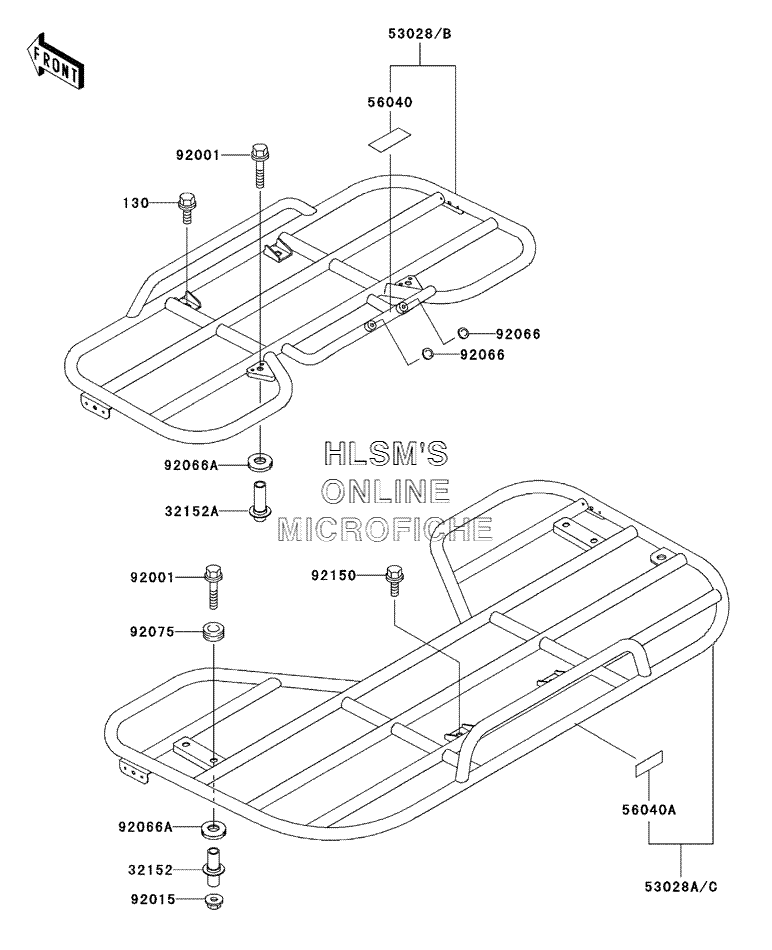

CARRIER(S) для Kawasaki Prairie 300 (KVF300-B4) - 2002 года выпуска
-
№АртикулНазвание
-
130130J0812 BOLT-FLANGED, 8X12BOLT-FLANGED, 8X12
-
3215232152-1066 PIPE, REAR CARRIERPIPE, REAR CARRIER
-
32152A32152-1067 PIPE, FRONT CARRIERPIPE, FRONT CARRIER
-
5302853028-1095-CQ CARRIER-ASSY, FRONT (P.C.GRAY) (US ONLY)CARRIER-ASSY, FRONT (P.C.GRAY) (US ONLY)
-
53028A53028-1096-CQ CARRIER-ASSY, REAR (P.C.GRAY) (US ONLY)CARRIER-ASSY, REAR (P.C.GRAY) (US ONLY)
-
53028B53028-1099-CQ CARRIER-ASSY, FRONT (P.C.GRAY) (CANADA ONLY)CARRIER-ASSY, FRONT (P.C.GRAY) (CANADA ONLY)
-
53028C53028-1100-CQ CARRIER-ASSY, REAR (P.C.GRAY) (CANADA ONLY)CARRIER-ASSY, REAR (P.C.GRAY) (CANADA ONLY)
-
5604056040-1321 LABEL-WARNING, MAXIMUM LOADLABEL-WARNING, MAXIMUM LOAD
-
56040A56040-1322 LABEL-WARNING, MAXIMUM LOADLABEL-WARNING, MAXIMUM LOAD
-
9200192001-1642 BOLT, FLANGED, 8X75 (BLACK)BOLT, FLANGED, 8X75 (BLACK)
-
9201592015-1696 NUT, FLANGED, LOCK, 8MMNUT, FLANGED, LOCK, 8MM
-
9206692066-1216 PLUGPLUG
-
92066A92066-1438 PLUGPLUG
-
9207592075-1086 DAMPERDAMPER
-
9215092150-1780 BOLT, 8X12BOLT, 8X12
